Engine Control System Wiring Diagrams

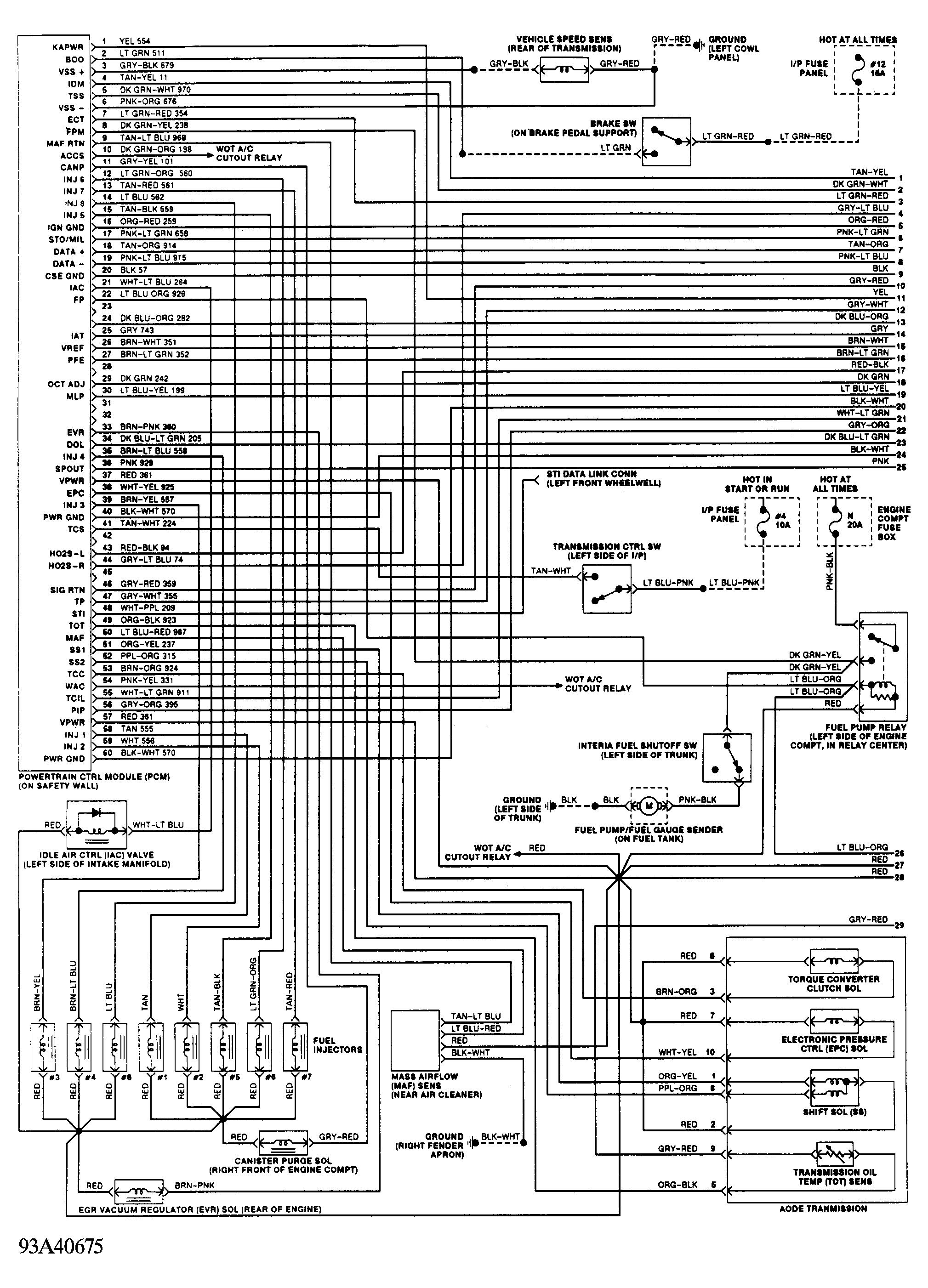

Fig 1: EEC-IV Wiring Diagram (Town Car 4.6L - 1 of 3)

G93A40675

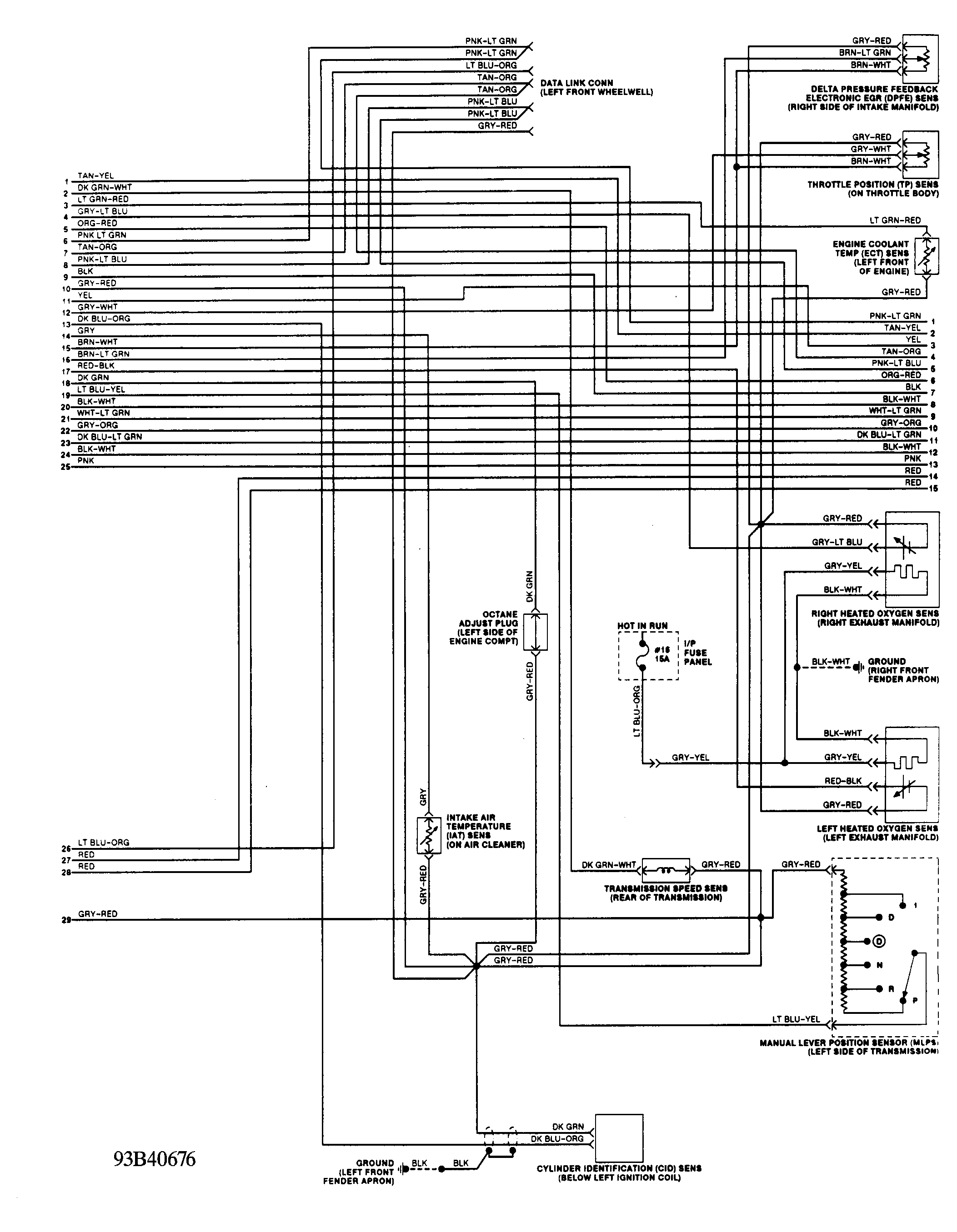

Fig 2: EEC-IV Wiring Diagram (Town Car 4.6L - 2 of 3)

G93B40676

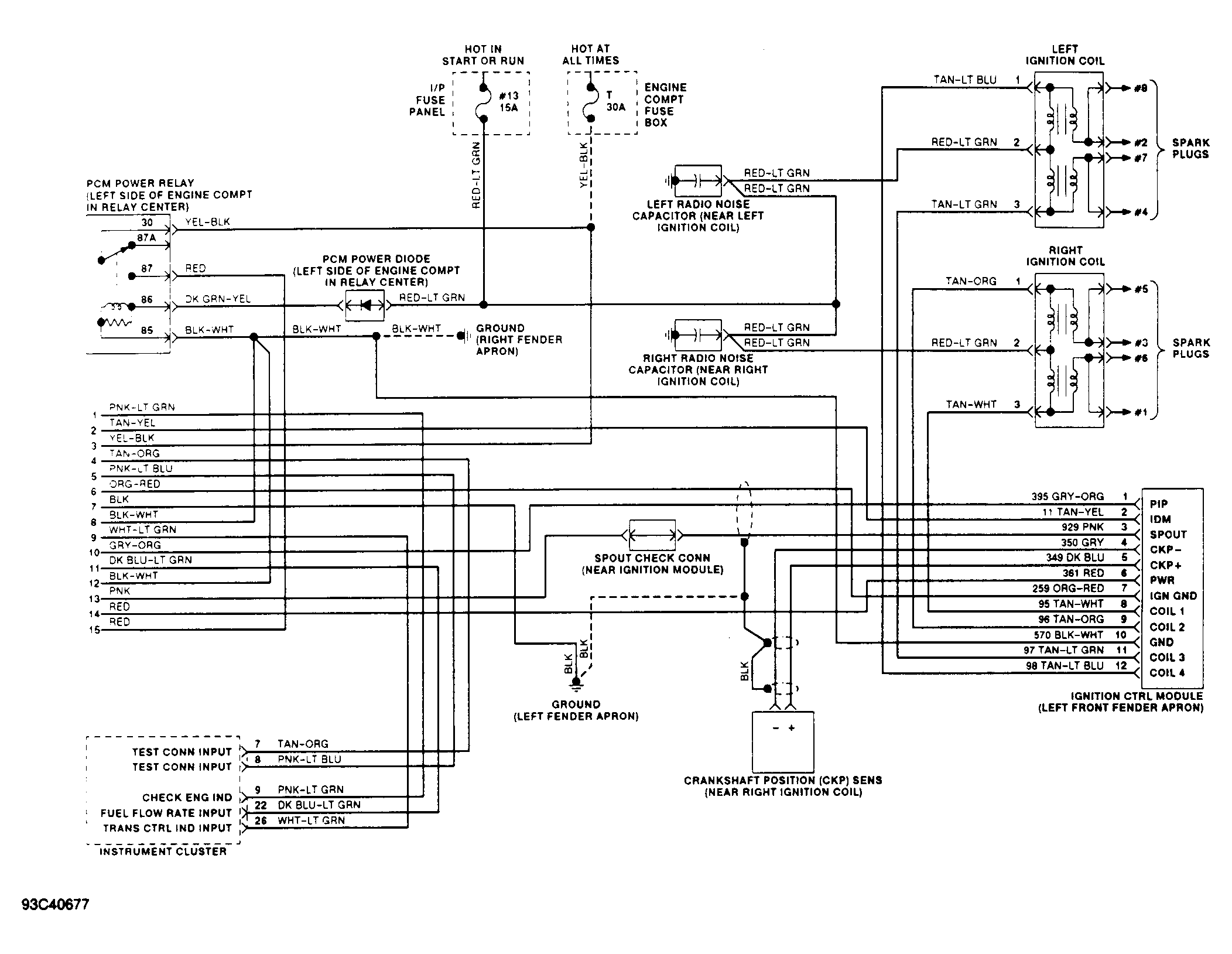

Fig 3: EEC-IV Wiring Diagram (Town Car 4.6L - 3 of 3)

G93C40677
