Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

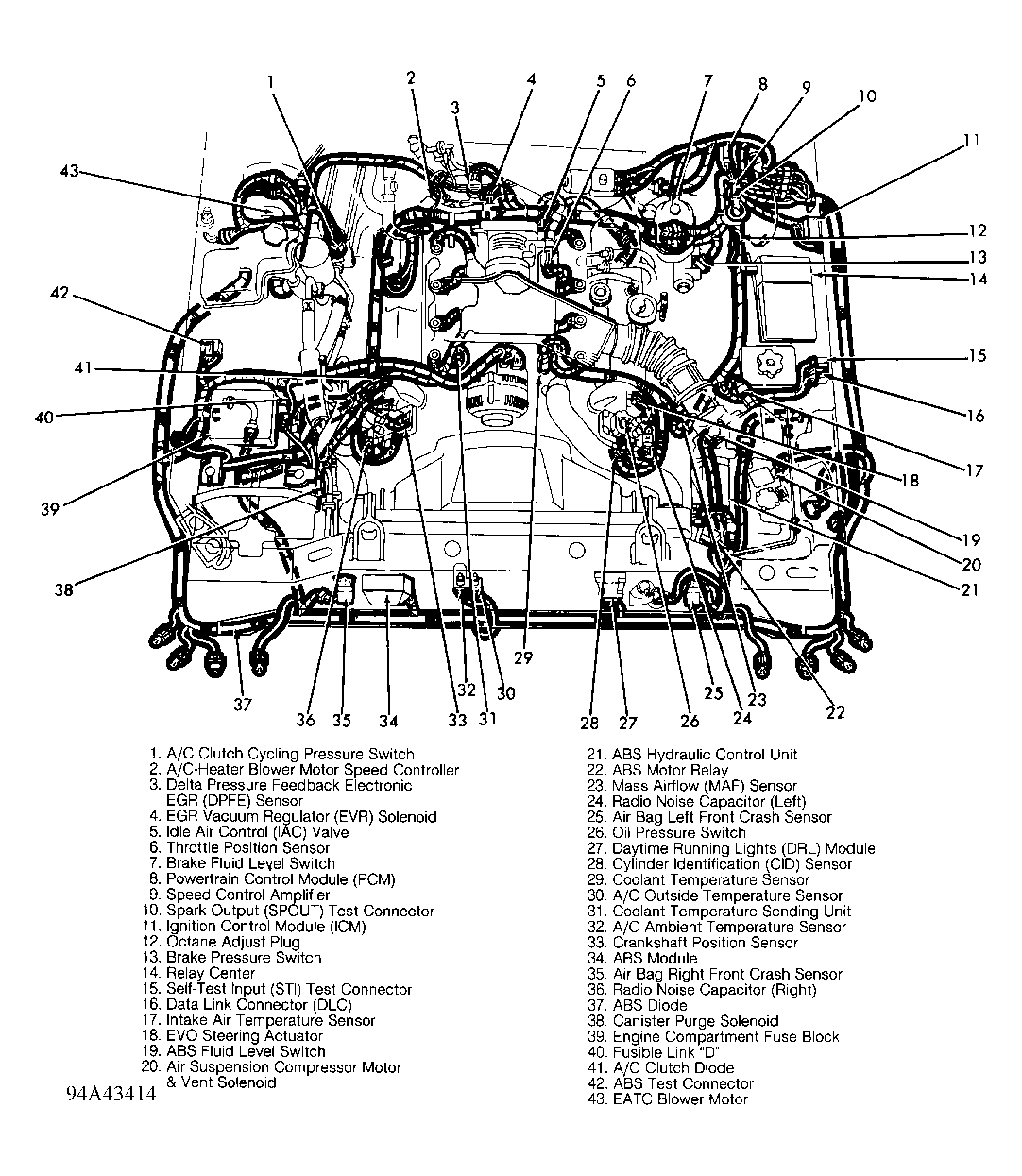

| ABS Hydraulic Control Unit | In lower left front corner of engine bay. See Figure . |
| ABS Module | Under right side of upper radiator support. See Figure . |
| A/C-Heater Blower Motor Speed Controller | In right rear of engine bay, on evaporator case. See Figure . |

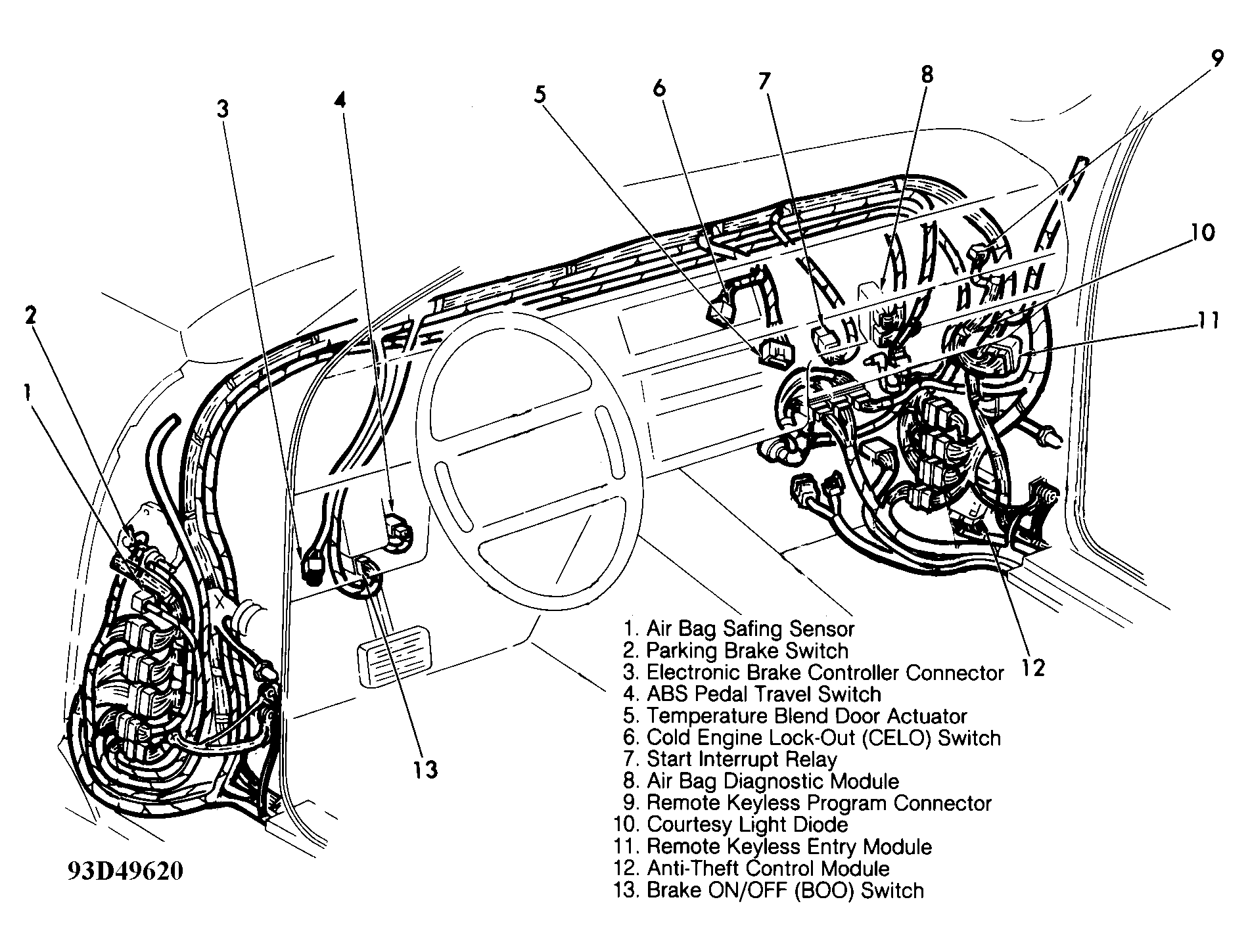

| Air Bag Diagnostic Module | Behind right side of dash, in front of air recirculation duct. See Figure . |
| Air Suspension/EVO Steering Module | In trunk, on right support. |
| Antenna Module | On left side of trunk, above power antenna motor. |
| Anti-Theft Control Module | Behind right kick panel, near floor. See Figure . |
| Daytime Running Lights (DRL) Module | Under left side of upper radiator support. See Figure . |

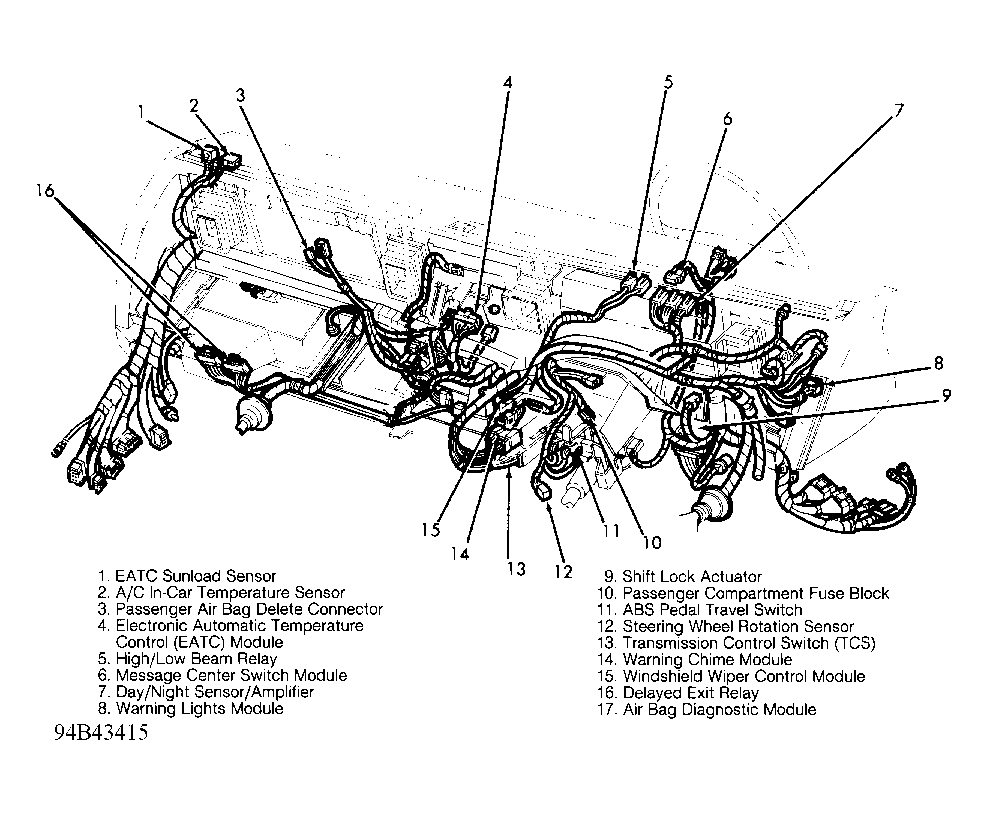

| Electronic Automatic Temperature Control (EATC) Module | Behind center of dash. See Figure . |
| Ignition Control Module (ICM) | On left rear inner fender panel. See Figure . |
| Memory Seat Module | Under driver's seat. |
| Message Center Switch Module | On top left side of dash, above instrument cluster. See Figure . |
| One Touch Down Power Window Module | At front of driver's door. |
| Powertrain Control Module (PCM) | On left side of firewall. See Figure . |
| Remote Keyless Entry Module | Behind right kick panel, behind insulator. See Figure . |
| Speaker Interrupt Module | In trunk area. |
| Warning Chime Module | Behind left side of dash, to right of steering column. See Figure . |
| Warning Lights Module | On top left side of dash, above instrument cluster. See Figure . |
| Windshield Wiper Control Module | Behind left side of dash, above warning chime module. See Figure . |
