Diagnostic Trouble Code (DTC) Reference Charts

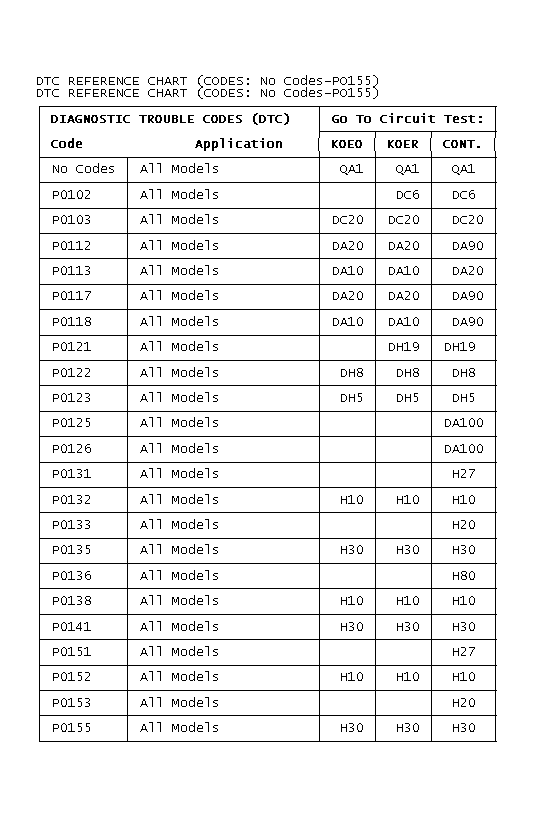

Fig 1: DTC Reference Chart (Codes: No Codes-PO155)

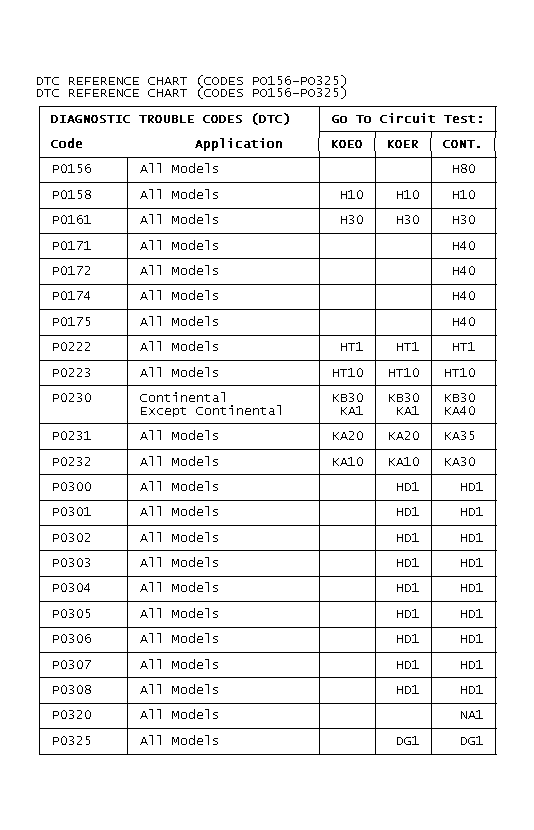

Fig 2: DTC Reference Chart (Codes PO156-PO325)

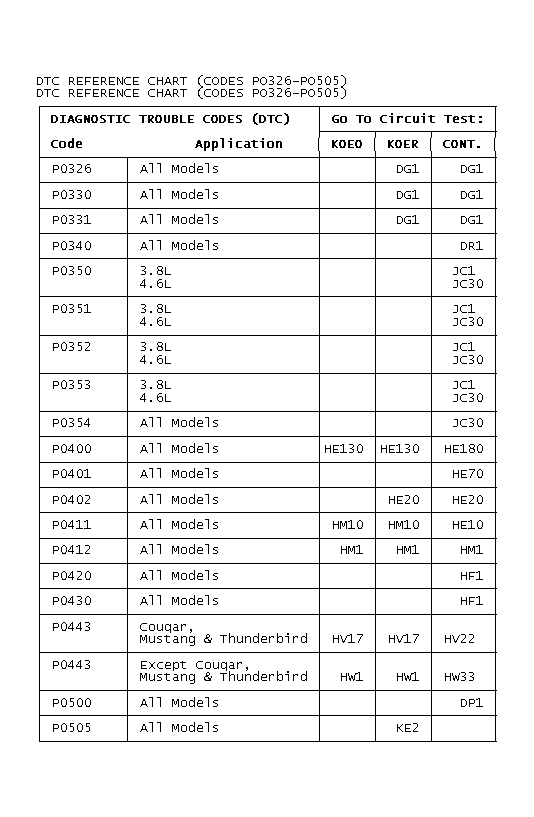

Fig 3: DTC Reference Chart (Codes PO326-PO505)

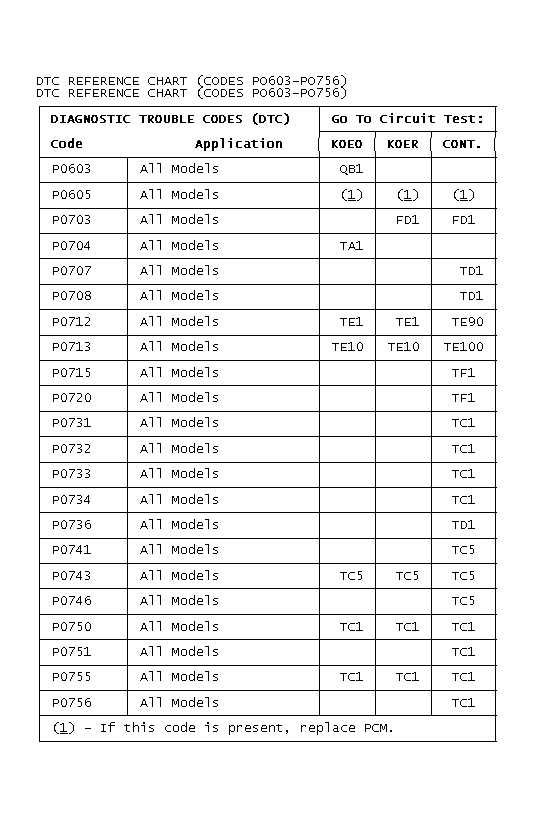

Fig 4: DTC Reference Chart (Codes PO603-PO756)

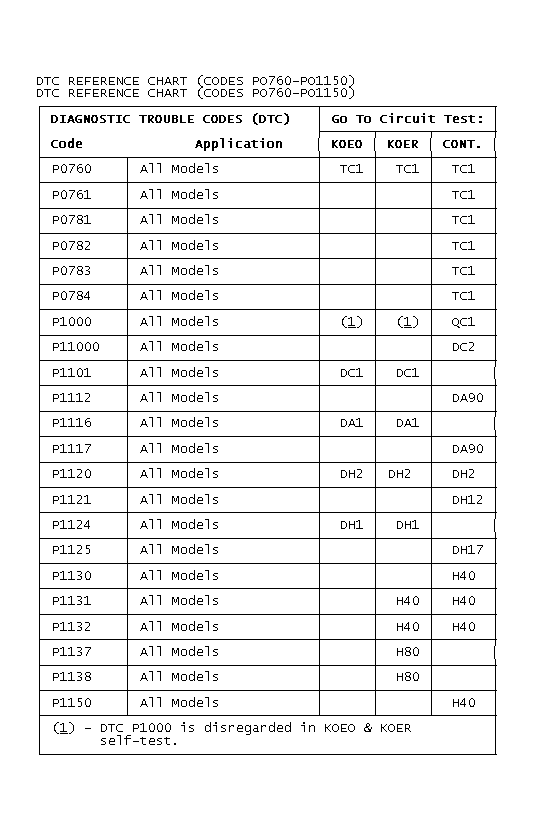

Fig 5: DTC Reference Chart (Codes PO760-PO1150)

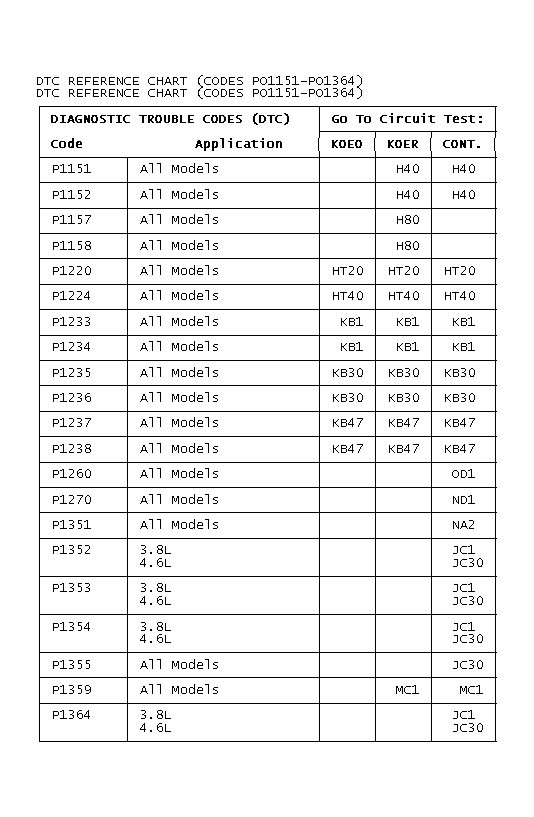

Fig 6: DTC Reference Chart (Codes PO1151-PO1364)

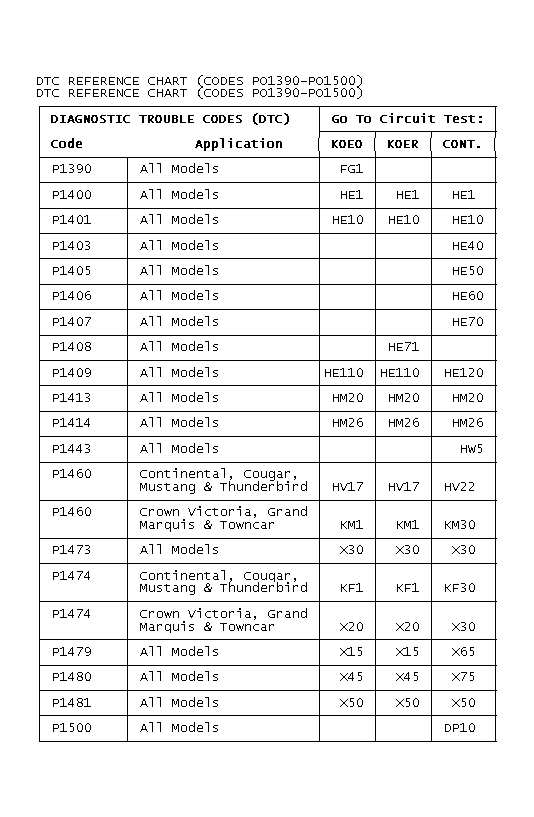

Fig 7: DTC Reference Chart (Codes PO1390-PO1500)

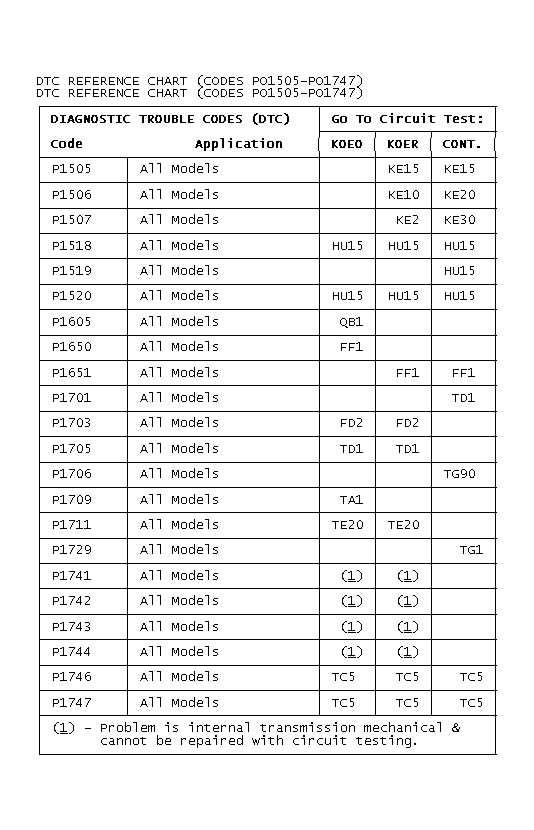

Fig 8: DTC Reference Chart (Codes PO1505-PO1747)

Fig 9: DTC Reference Chart (Codes PO1749-PO1787)
