Fuses & Circuit Breakers: Notes

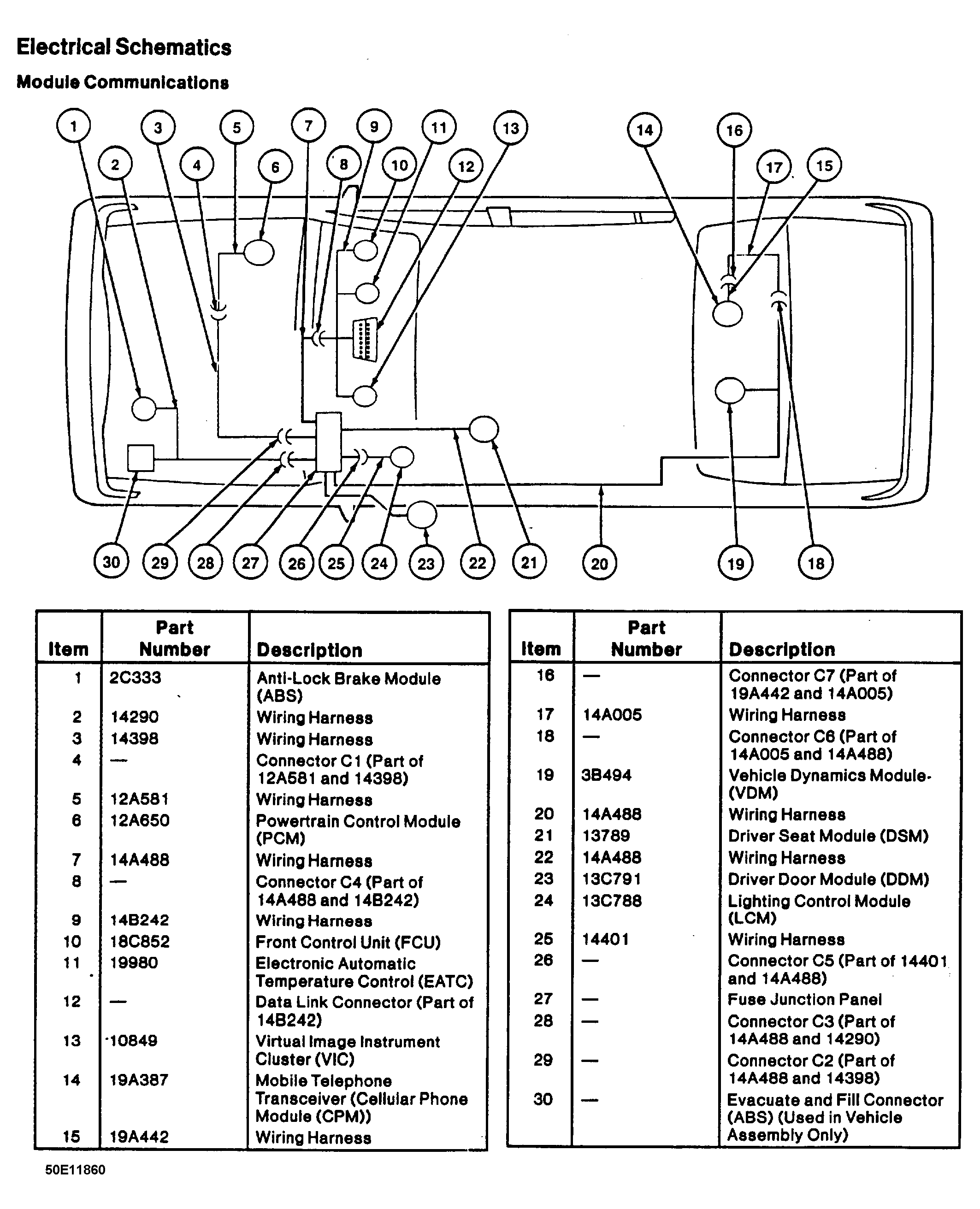

Fig 1: Module Communication Network
G50E11860Courtesy of FORD MOTOR CO.
