VAPS Module: Installation

Align mounting holes of VAPS module to holes on column fixture. Install and tighten mounting screws. Reconnect wiring harness.

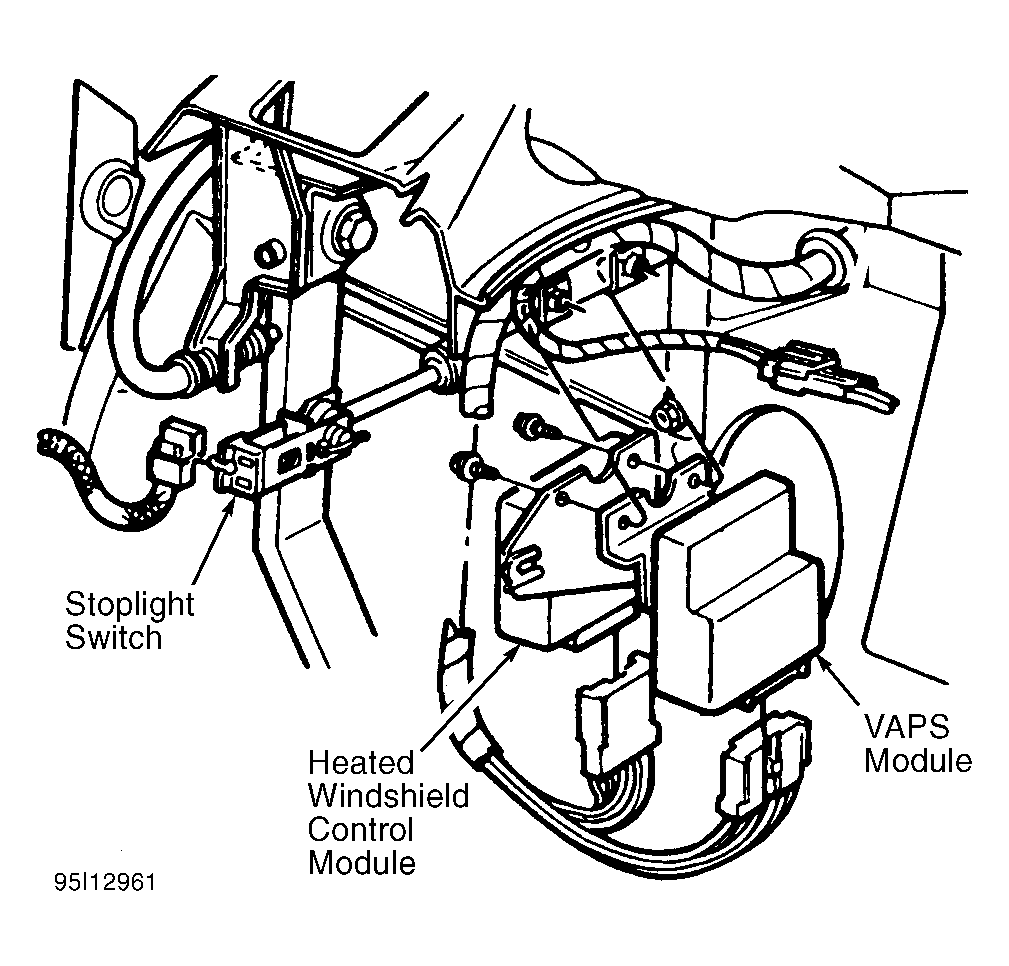

Fig 1: Locating VAPS Module & Harness Connector
G95I12961Courtesy of FORD MOTOR CO.
