Fuse Panel Identification: Notes

The fuse panel is located in the instrument panel.

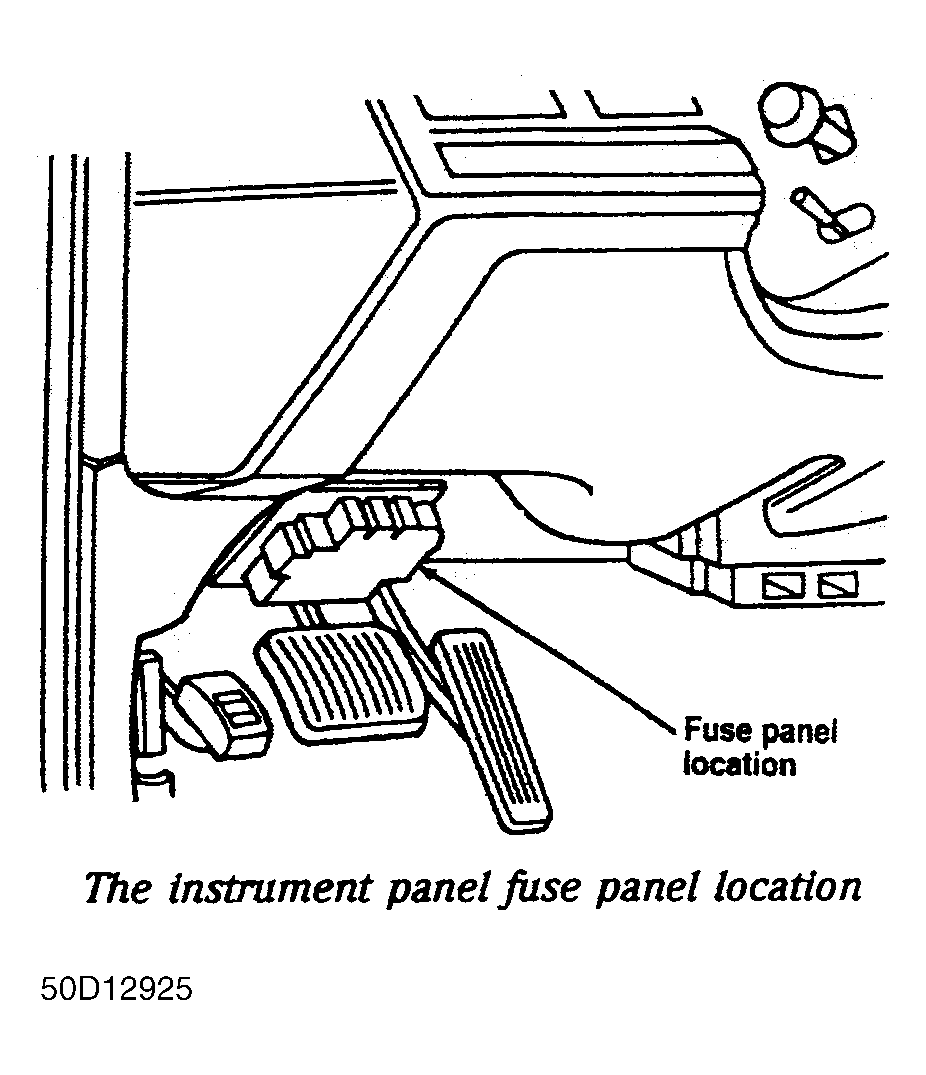

Fig 1: Fuse Panel Location
G50D12925Courtesy of FORD MOTOR CO.

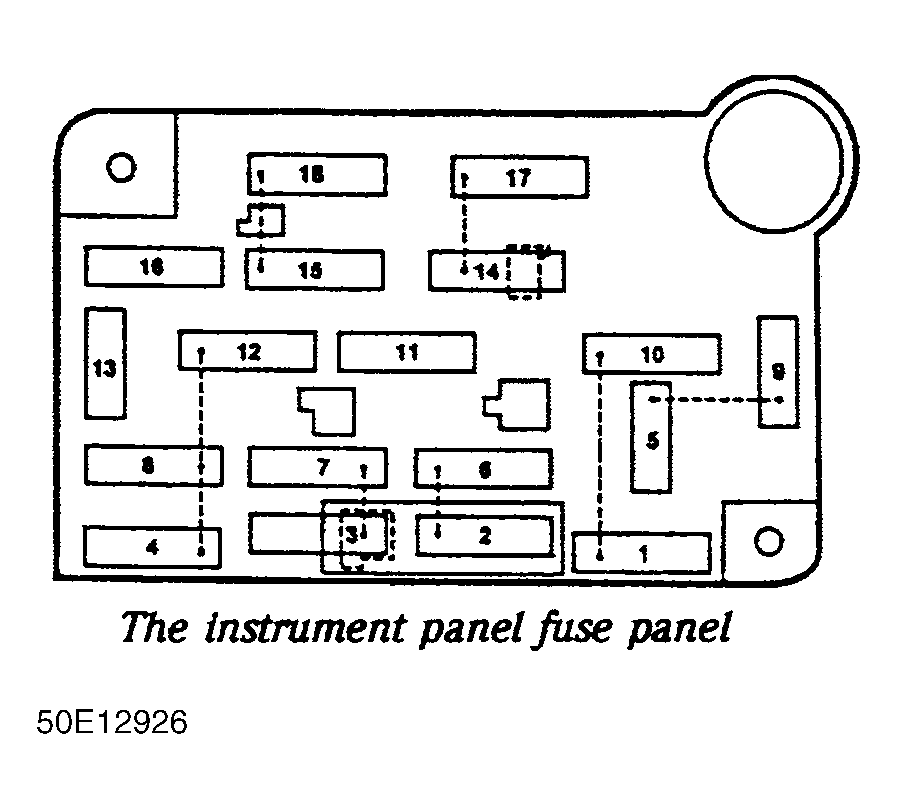

Fig 2: Fuse Panel Identification
G50E12926Courtesy of FORD MOTOR CO.
