Power Distribution Box Identification: Notes

The power distribution box is located in the engine compartment near the battery.

WARNING: Always disconnect battery ground cable before servicing "high-current" fuses. It is recommended "high-current" fuses be replaced by a qualified technician.

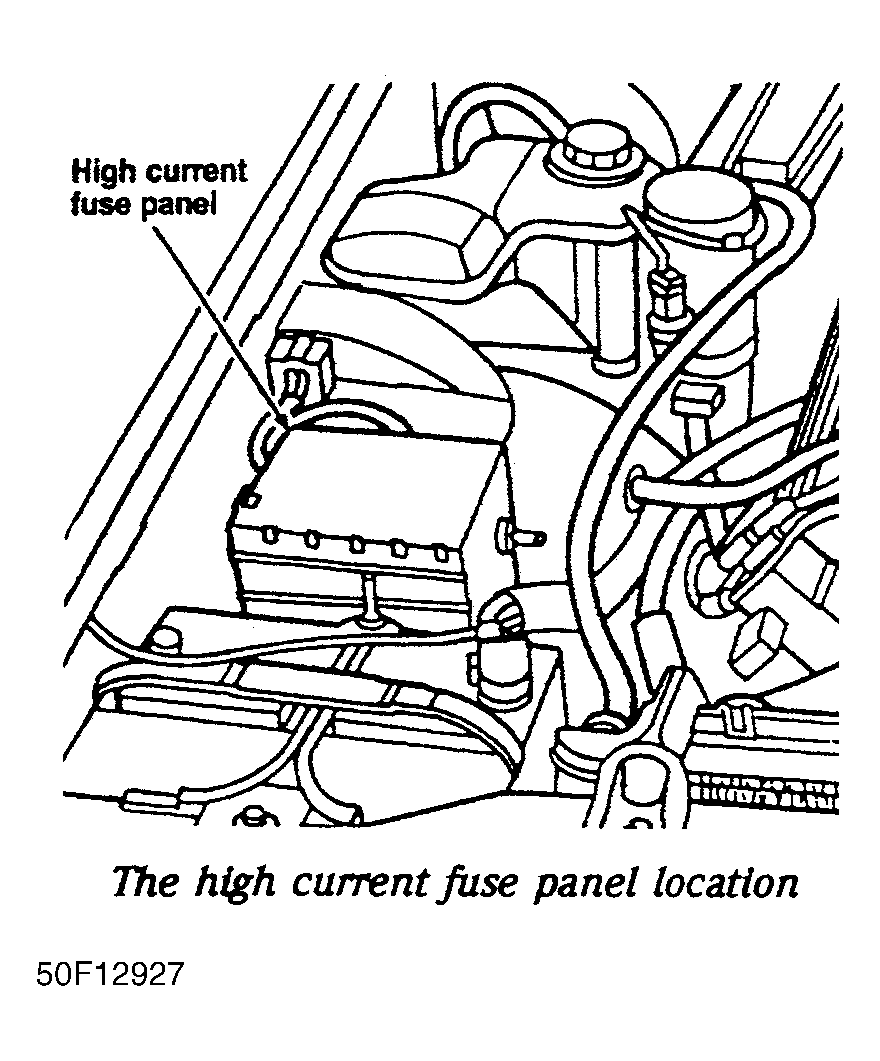

Fig 1: Power Distribution Box Location
G50F12927Courtesy of FORD MOTOR CO.

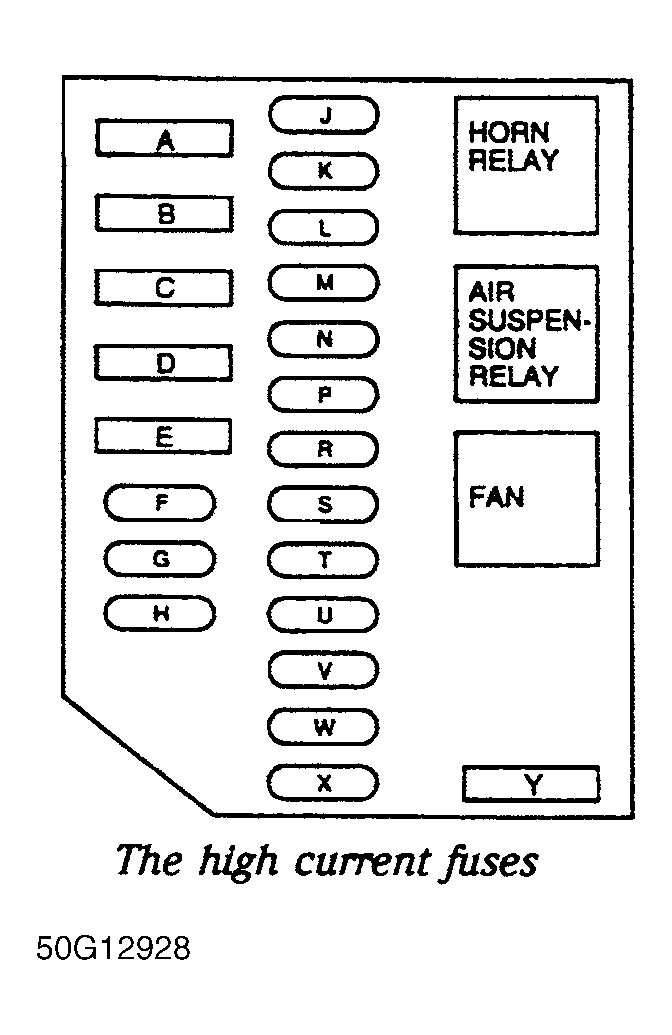

Fig 2: Power Distribution Box Identification
G50G12928Courtesy of FORD MOTOR CO.
