Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

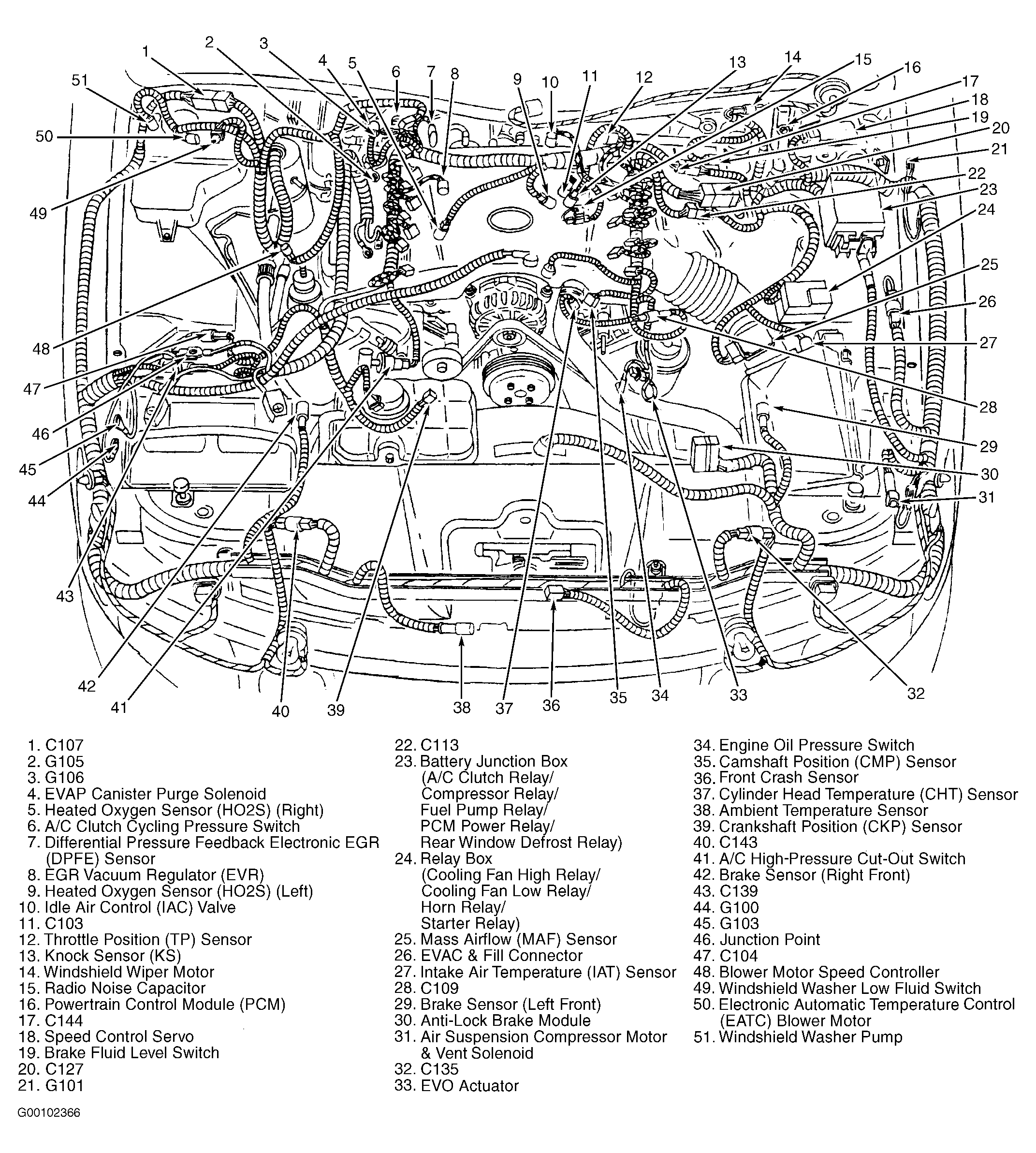

| Battery Junction Box | Left side of engine compartment, front of wheelwell. See Figure. |

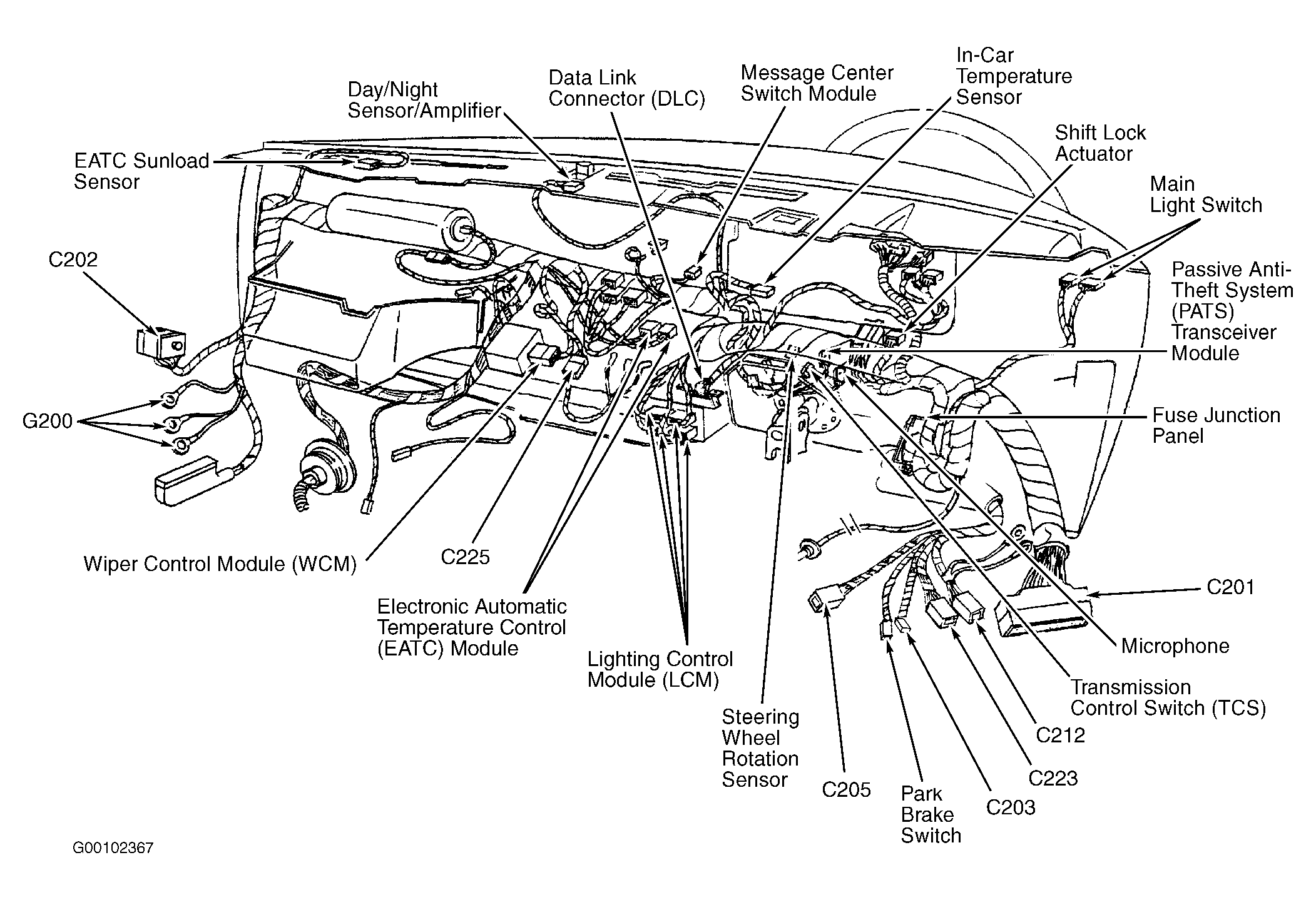

| Fuse Junction Panel | Behind left side of dash, to left of steering column. See Figure. |
| Fuse Link A/B | At battery junction box. |
| PCM Diode | In battery junction box. |
| Relay Box | Left side of engine compartment, on top of wheelwell. See Figure. |
