Pinpoint Test M: The Memory Seat Does Not Operate Correctly Using The Remote Transmitter

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

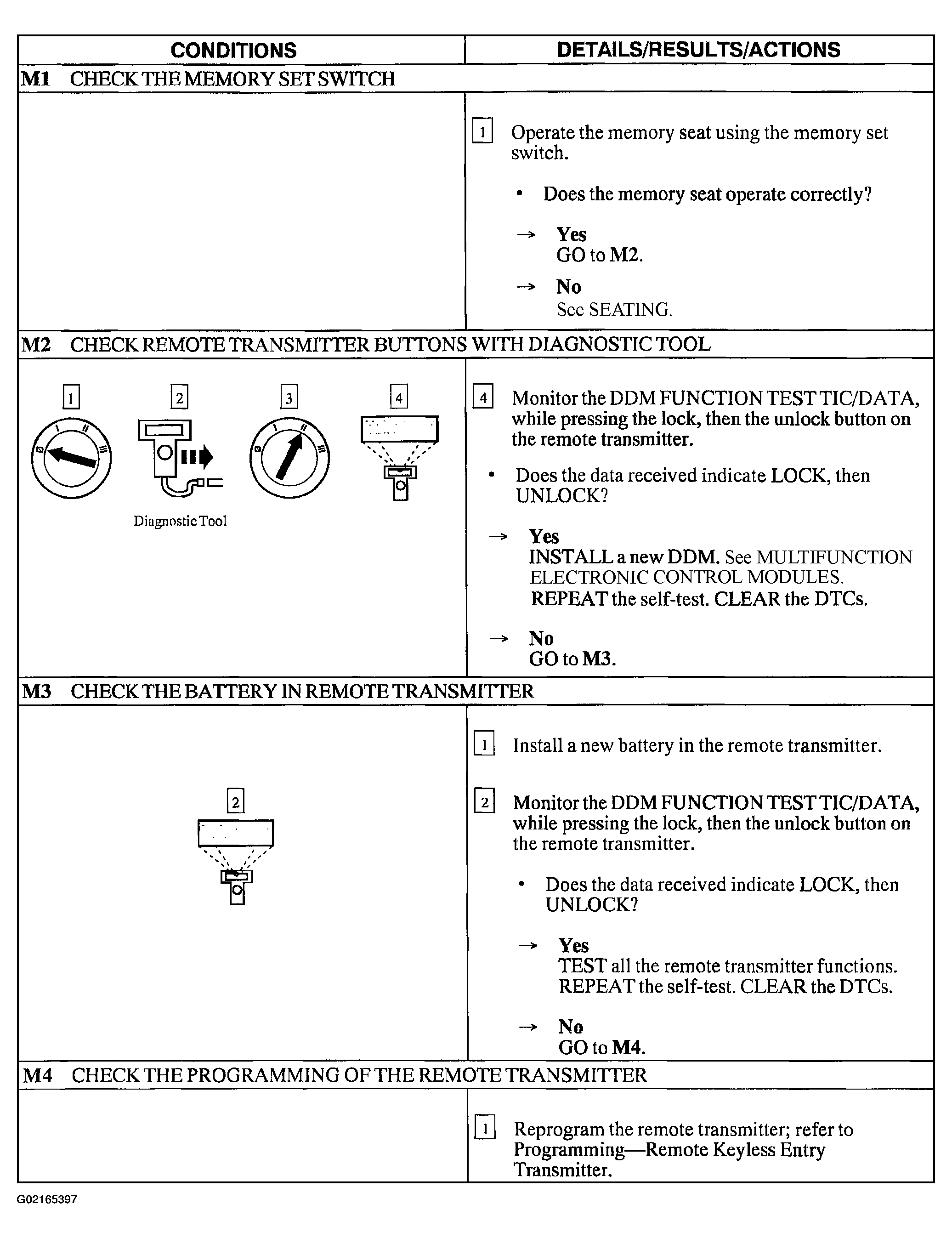

Fig 1: Pinpoint Test M: The Memory Seat Does Not Operate Correctly Using The Remote Transmitter (Steps M1-M4)

Courtesy of FORD MOTOR CO.

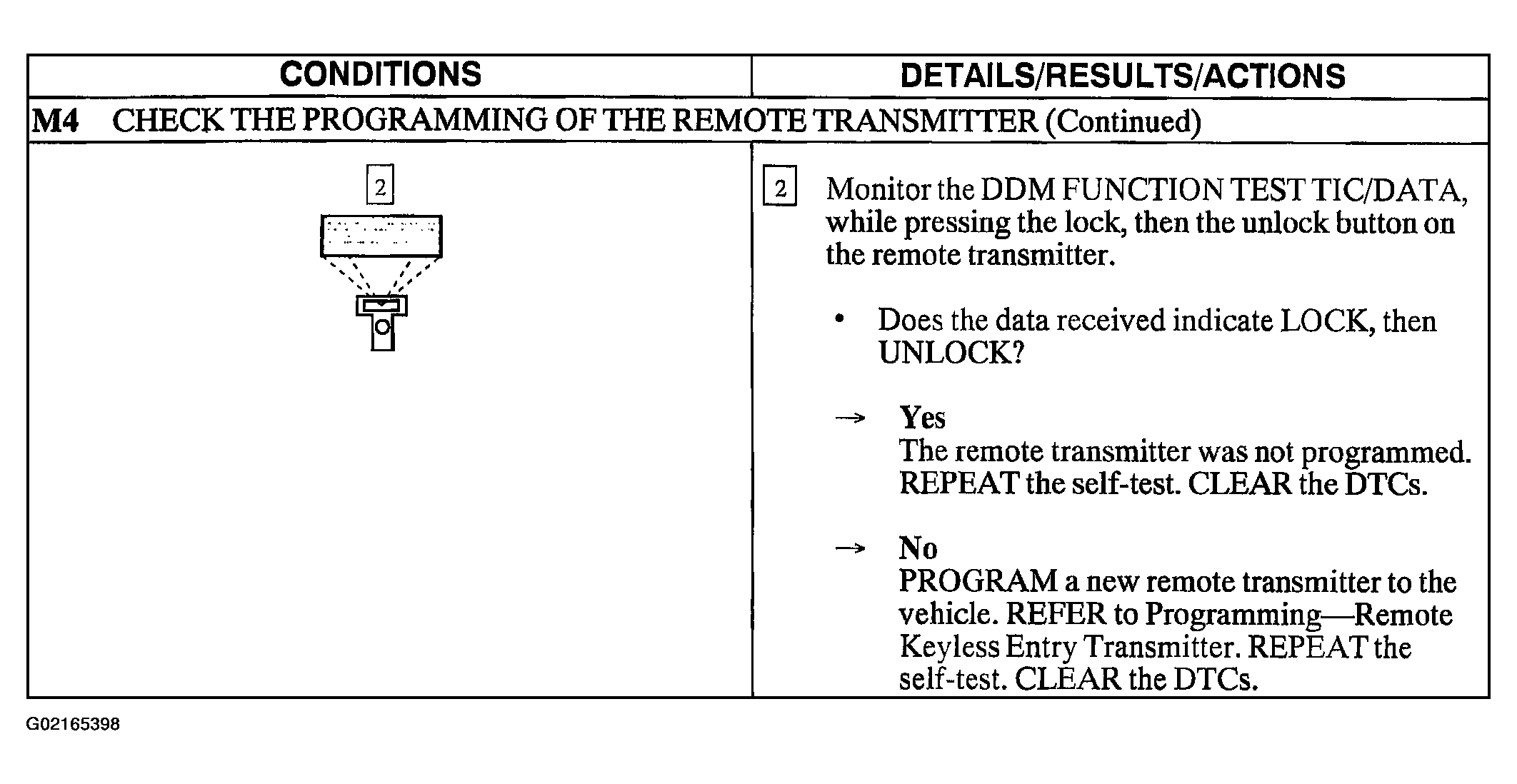

Fig 2: Pinpoint Test M: The Memory Seat Does Not Operate Correctly Using The Remote Transmitter (Step M4 Cont.)

Courtesy of FORD MOTOR CO.
