Battery Junction Box

NOTE: Battery junction box is located on driver's side of engine compartment, near master cylinder. See Fig 1.

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of FORD MOTOR CO.

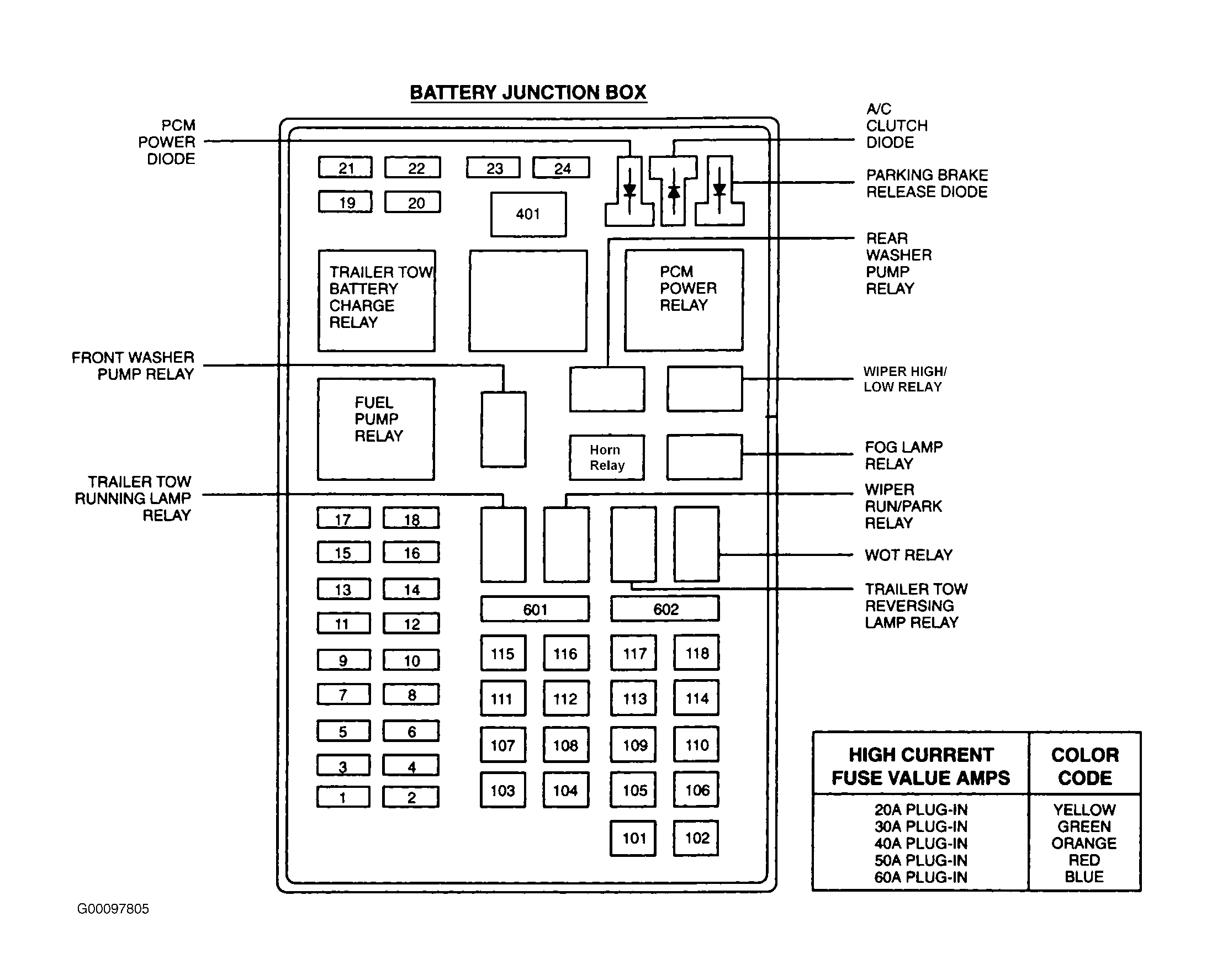

Fig 2: Identifying Battery Junction Box Components

Courtesy of FORD MOTOR CO.

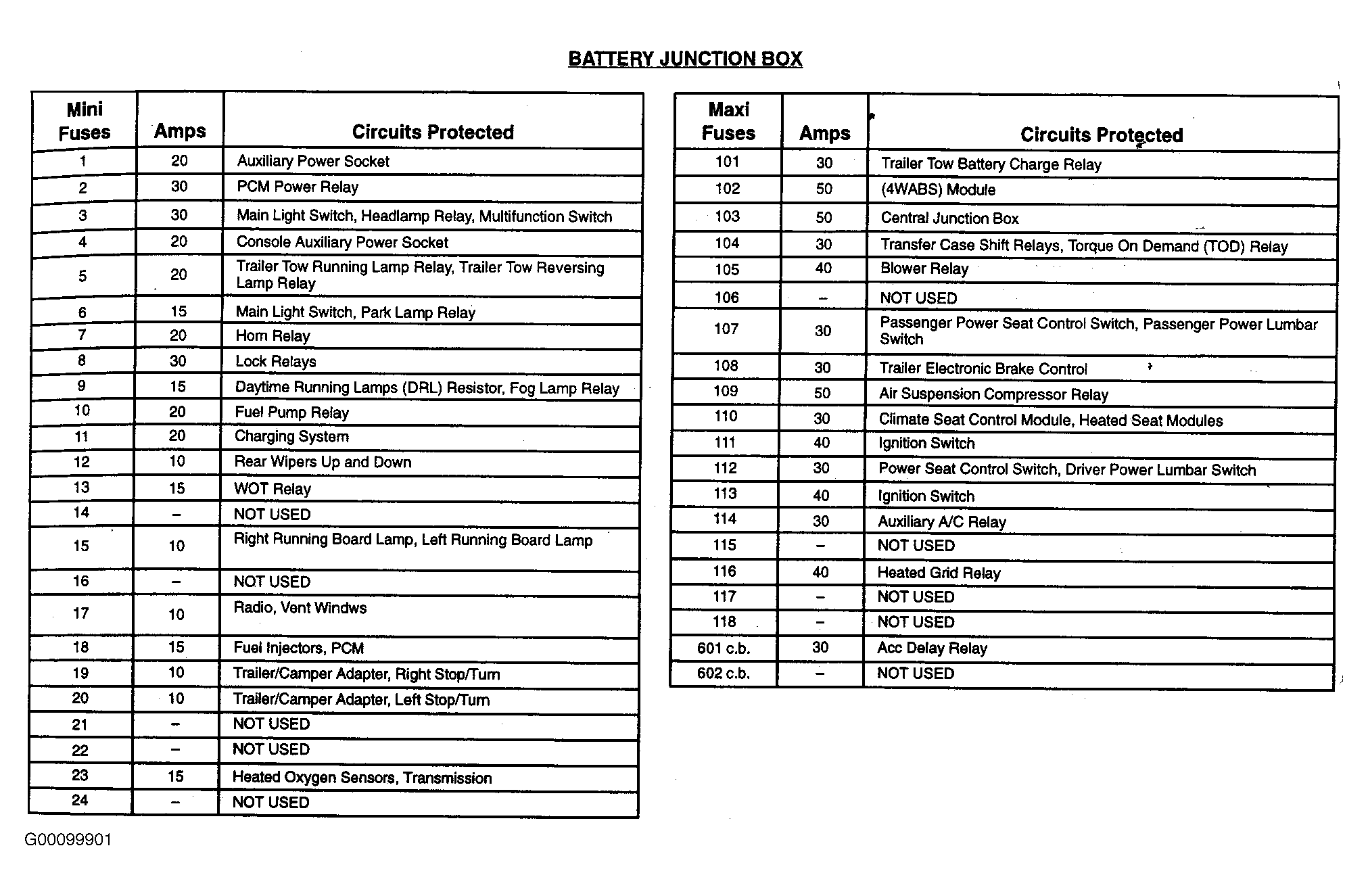

Fig 3: Battery Junction Box Legend

Courtesy of FORD MOTOR CO.
