Removal And Installation: Radiator: Installation

  1. Install the radiator.
    1. Install the radiator mounting insulators.
    2. Position the radiator on the radiator mounting insulators.
    3. Position the brackets and the jack handle and wheel nut wrench retainers (17A038).
    4. Install the bolts.

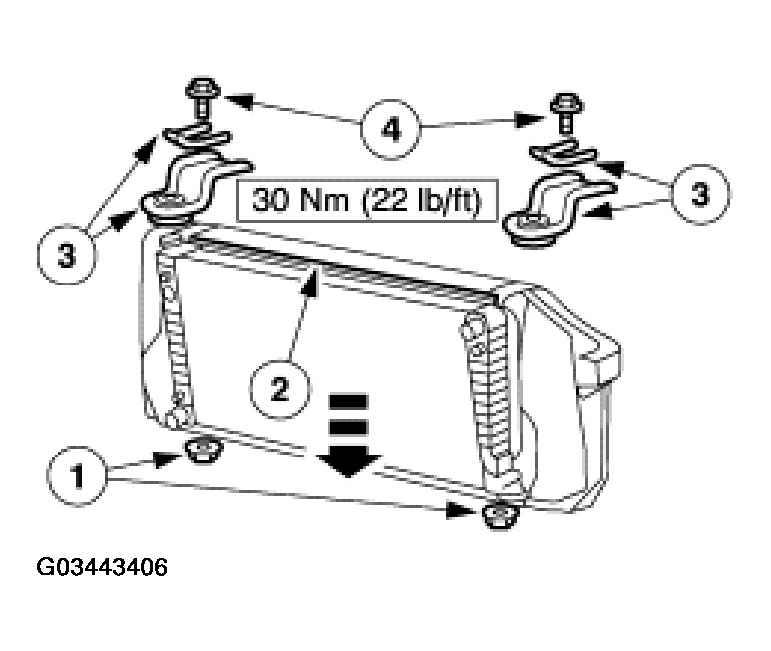

    Fig 1: Installing Radiator & Components
    G03443406Courtesy of FORD MOTOR CO.
  2. Install the degas hose to the radiator.
    1. Release the clamp.
    2. Slide the hose onto the radiator fitting.

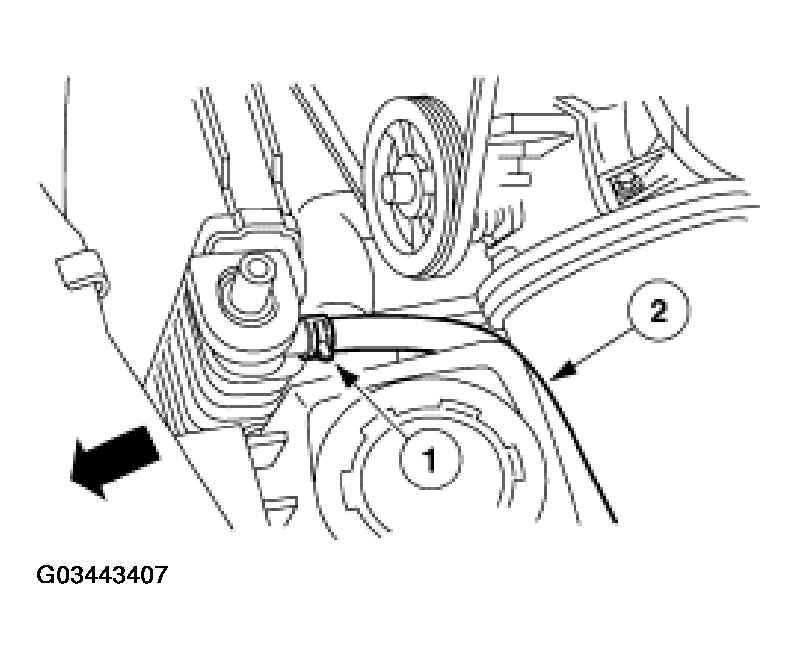

    Fig 2: Installing Degas Hose To Radiator
    G03443407Courtesy of FORD MOTOR CO.
  3. Connect the lower radiator hose and upper radiator hose (8260).
    1. Push the hose onto quick connect fitting.
    2. Bend the locking tab into retaining slot.

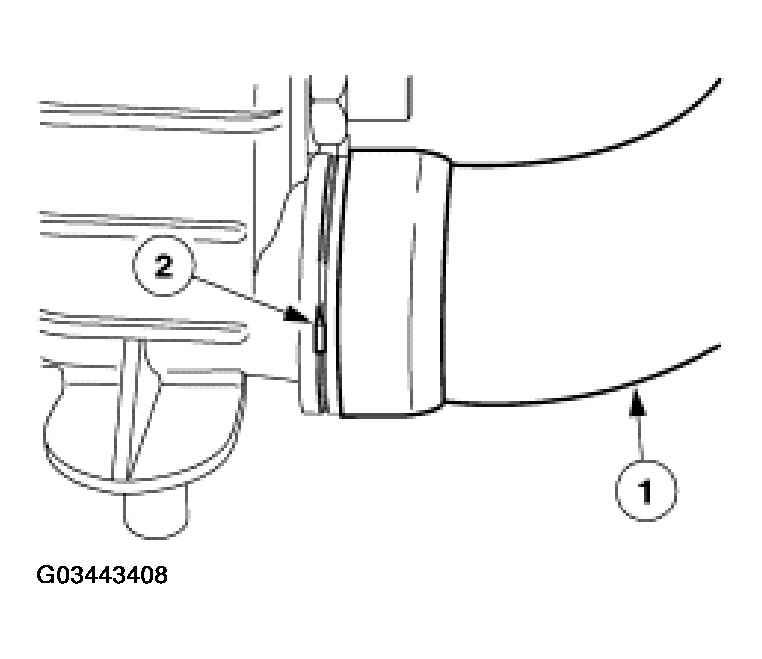

    Fig 3: Connecting Lower Radiator Hose & Upper Radiator Hose
    G03443408Courtesy of FORD MOTOR CO.
    4. NOTE: To avoid disturbing the transmission oil cooler fittings, use a backup wrench.

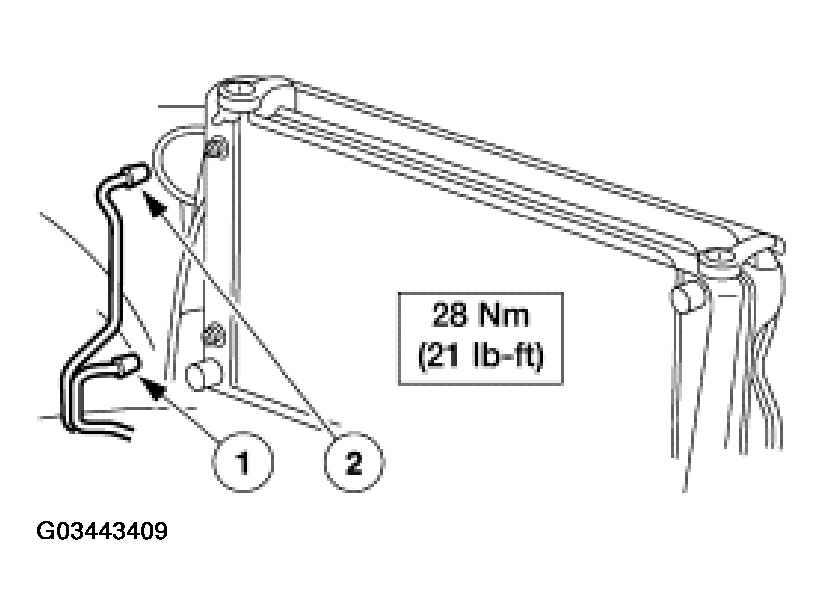

    Fig 4: Connecting Transmission Fluid Cooler Lines
    G03443409Courtesy of FORD MOTOR CO.
  4. Connect the transmission fluid cooler lines.
    1. Connect the lower transmission fluid cooler line.
    2. Connect the upper transmission fluid cooler line.
  5. Install the fan blade. For additional information, refer to COOLING FAN  in this article.
