Transfer Case - All Models

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.
- Install a new transfer case-to-transmission gasket.
- Fill the transfer case. For additional information, refer to TRANSFER CASE DRAINING AND FILLING when refilling the transfer case. Refer to SPECIFICATIONS for the correct type and quantity of fluid.
- Tighten the transfer case-to-transmission bolts evenly in a star pattern.

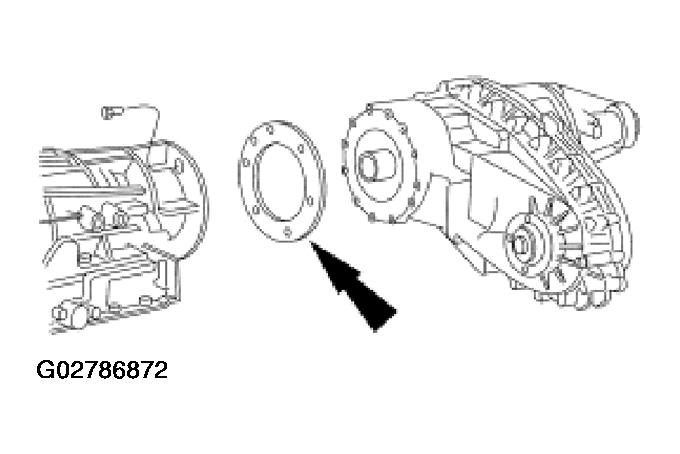

Fig 1: Installing New Transfer Case-To-Transmission Gasket
Courtesy of FORD MOTOR CO.
