Window Regulator Rear Door Power Window

Removal & Installation

1. Remove the rear door window glass, if necessary. See REAR DOOR WINDOW GLASS  .
2. Remove the upper regulator nuts. See Fig 1 .
3. Disconnect the window motor connector. See Fig 2 .
4. Remove the rivets and the regulator. See Fig 3 .
5. Transfer the motor to the new regulator assembly.
6. To install reverse the removal procedure. See Fig 1 .

Fig 1: Removing Upper Regulator Nuts Rear Door Power Window

Courtesy of FORD MOTOR CO.

Fig 2: Disconnecting Rear Door Electrical Connector

Courtesy of FORD MOTOR CO.

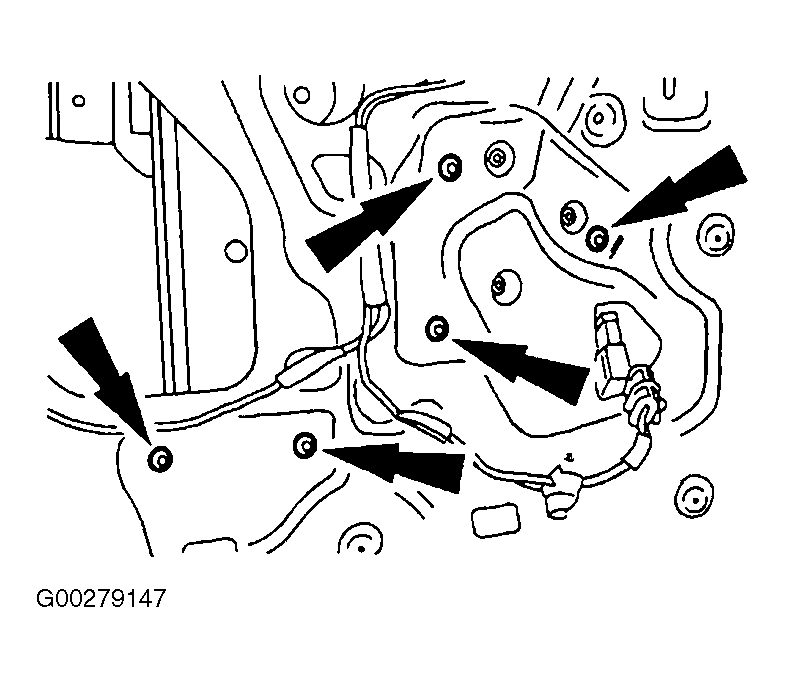

Fig 3: Removing Rear Door Rivets

Courtesy of FORD MOTOR CO.
