FixVault
Home
›
Lincoln
›
2001
›
Continental
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transaxle Overhaul
›
Disassembly And Assembly Of Subassemblies
›
Direct Clutch Cylinder
›
Notes
Direct Clutch Cylinder: Notes

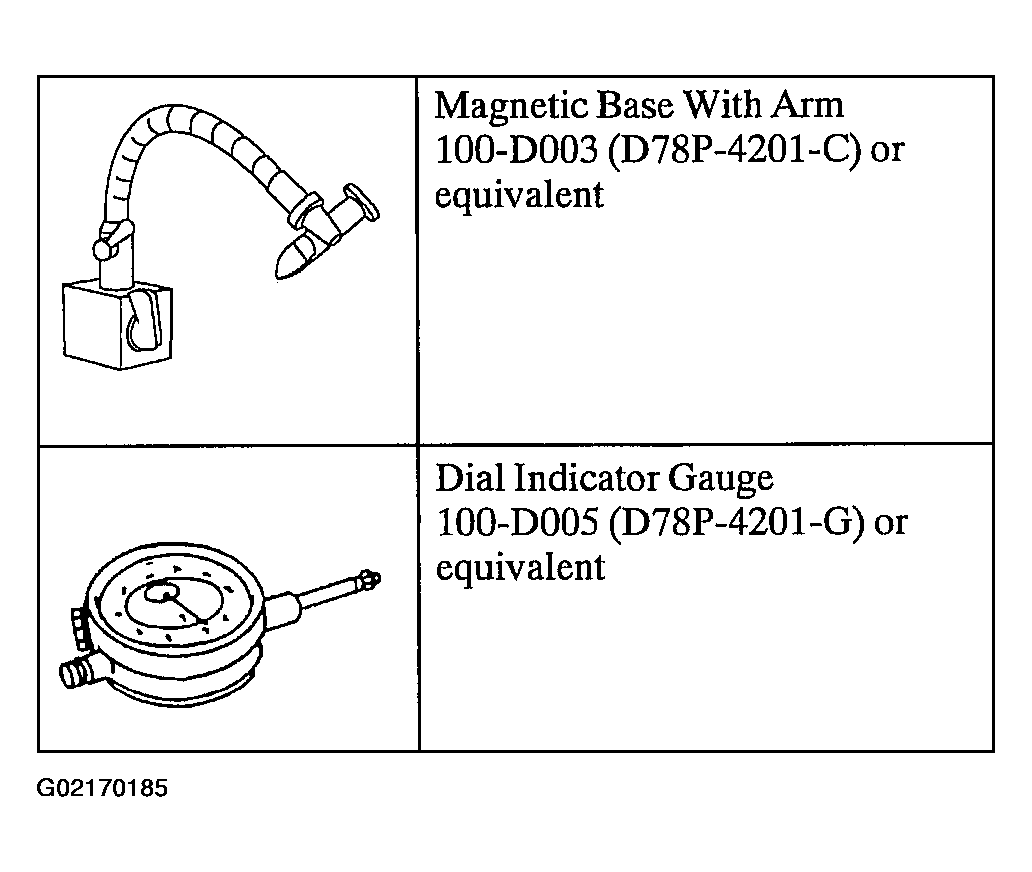

Fig 1: Special Tool(s)

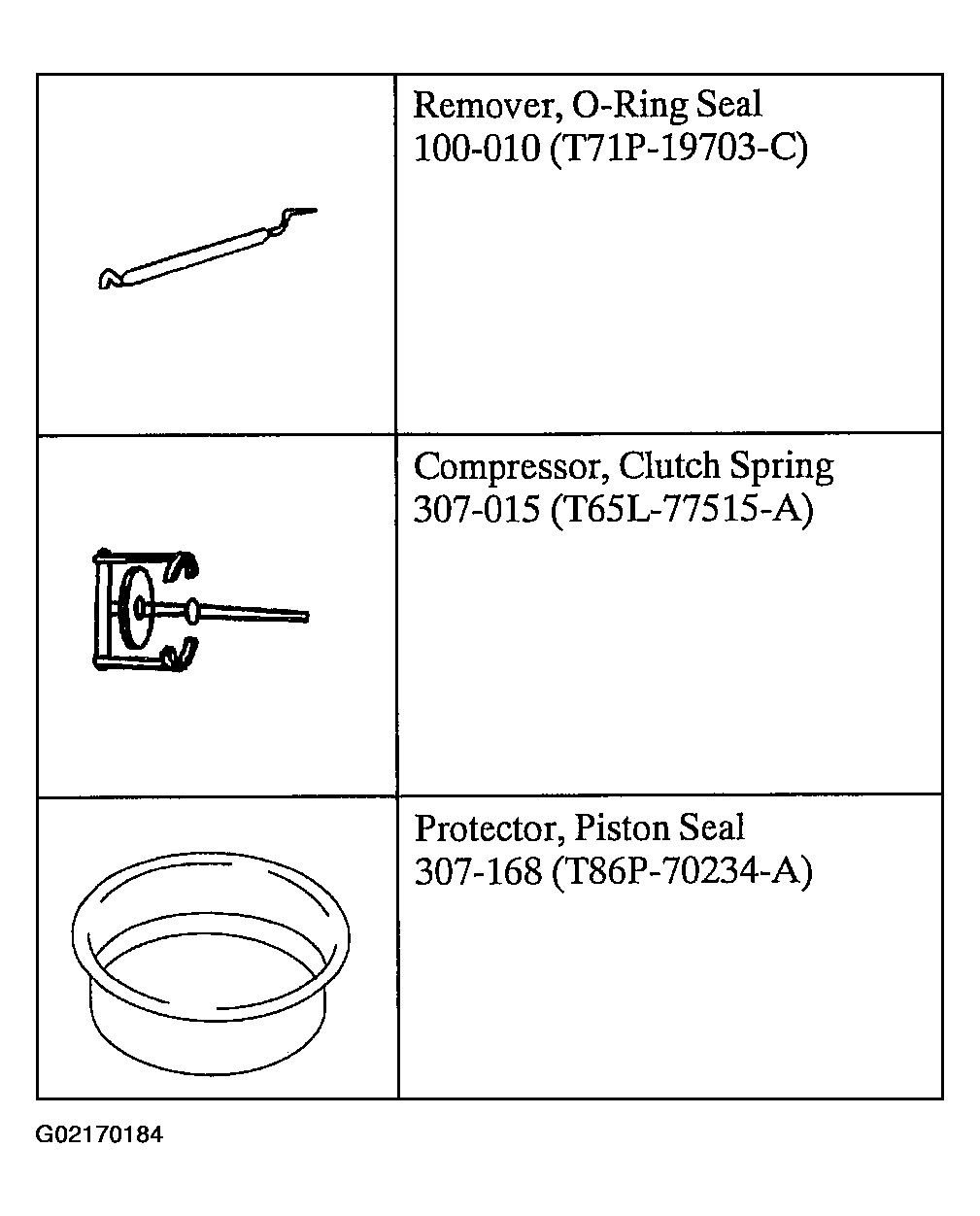

Fig 2: Special Tool(s)

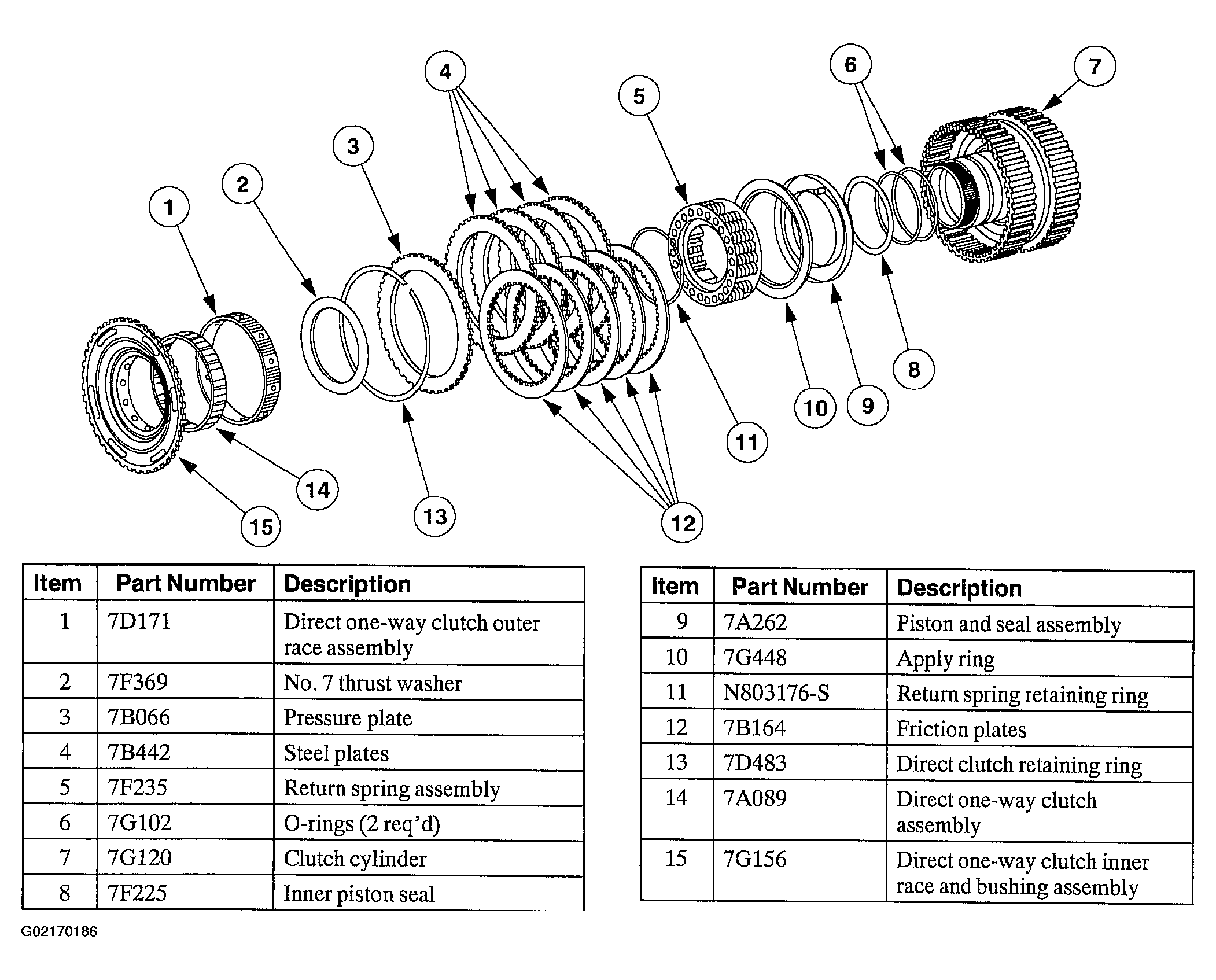

Fig 3: Direct Clutch Cylinder Exploded View
