Disassembled Views

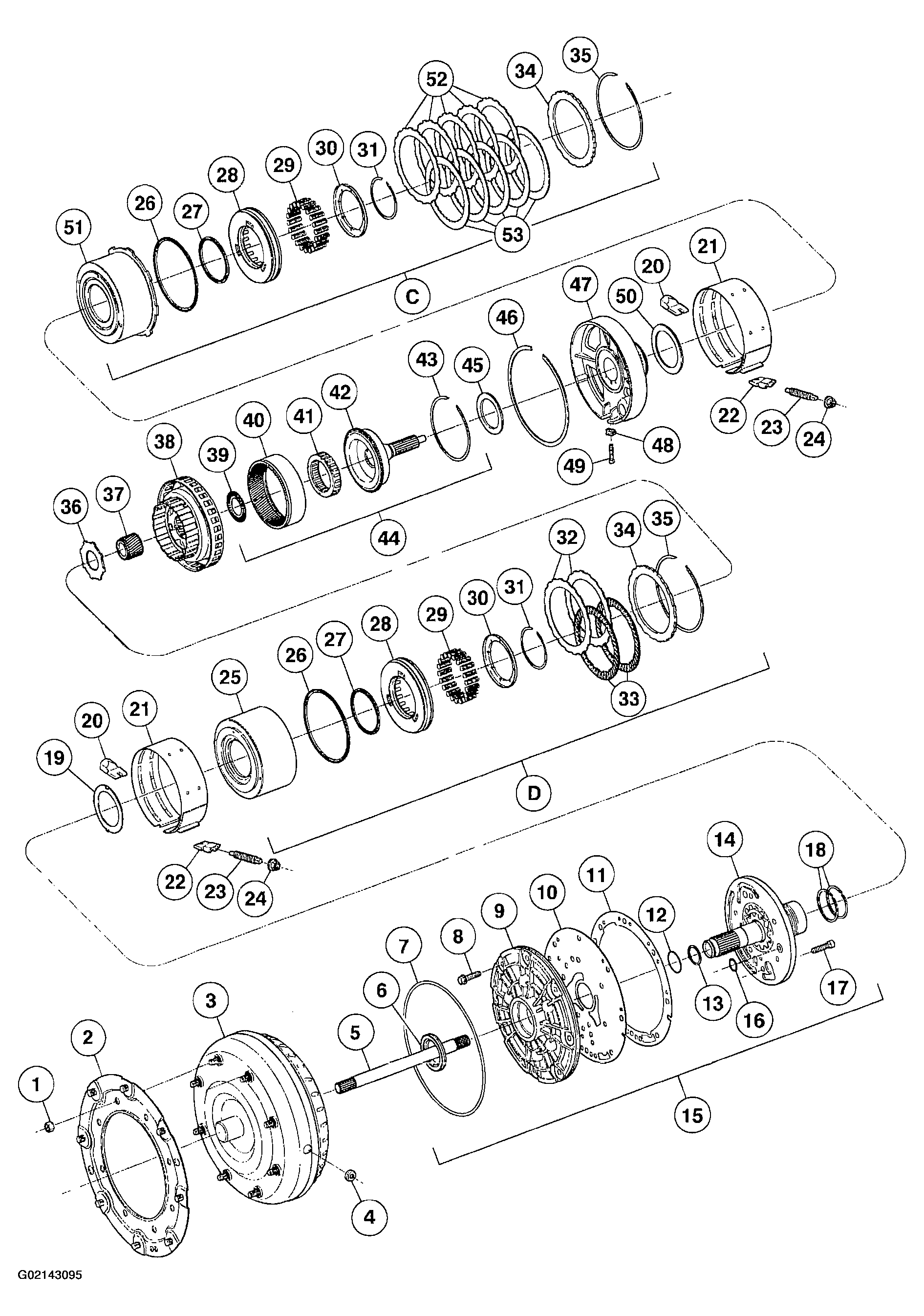

Fig 1: Transmission Disassembled View (1 Of 3)

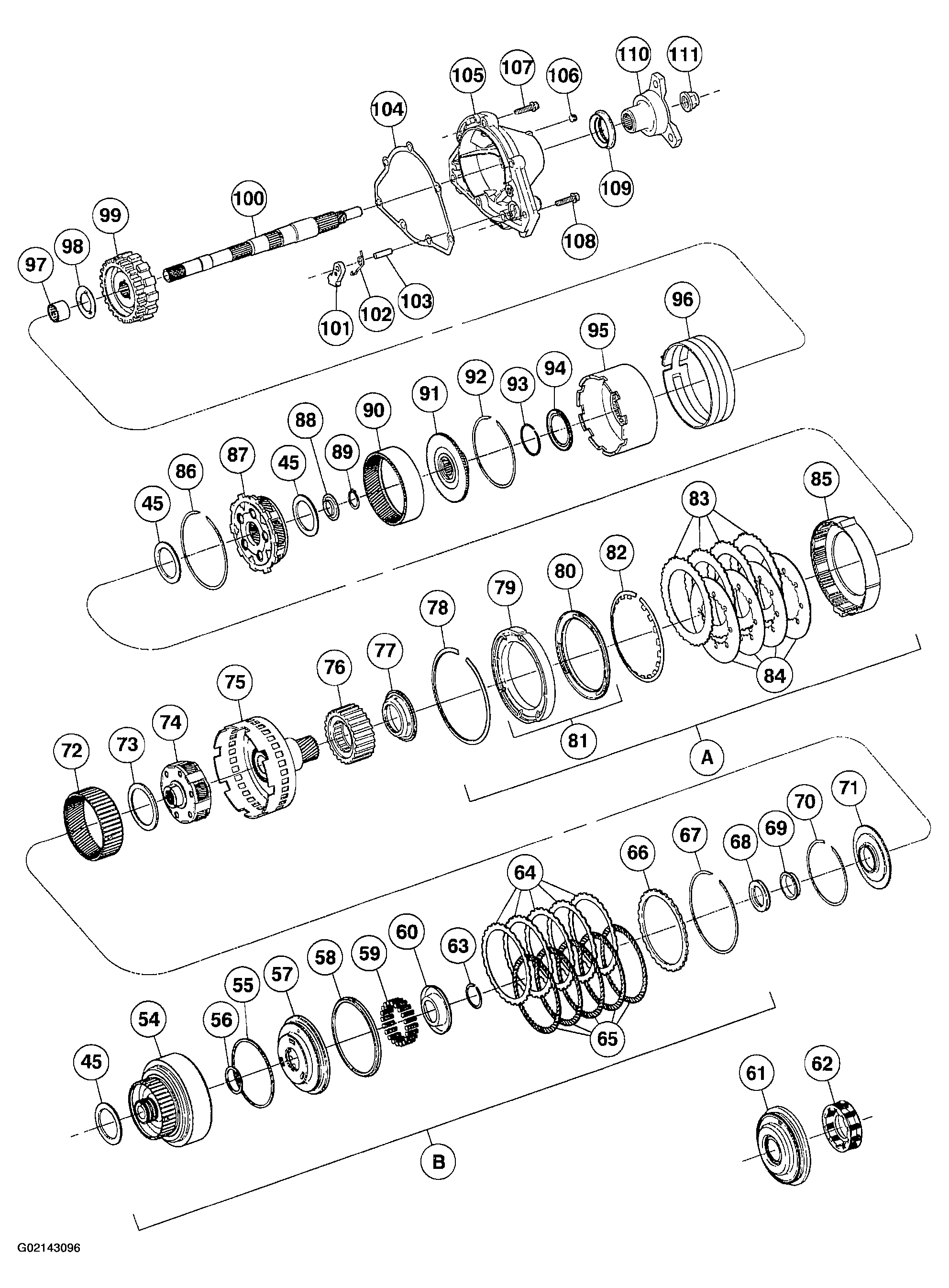

Fig 2: Transmission Disassembled View (2 Of 3)

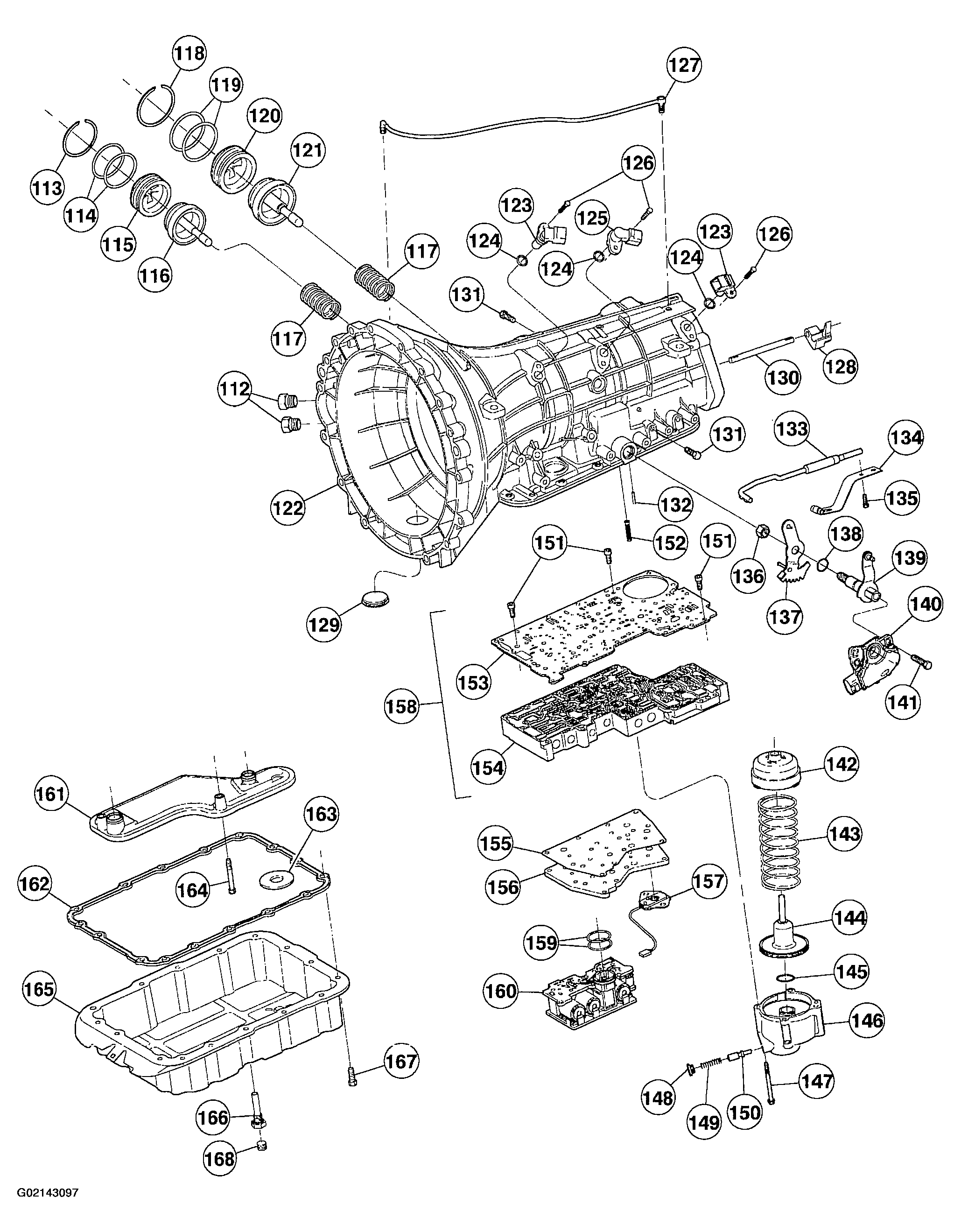

Fig 3: Transmission Disassembled View (3 Of 3)

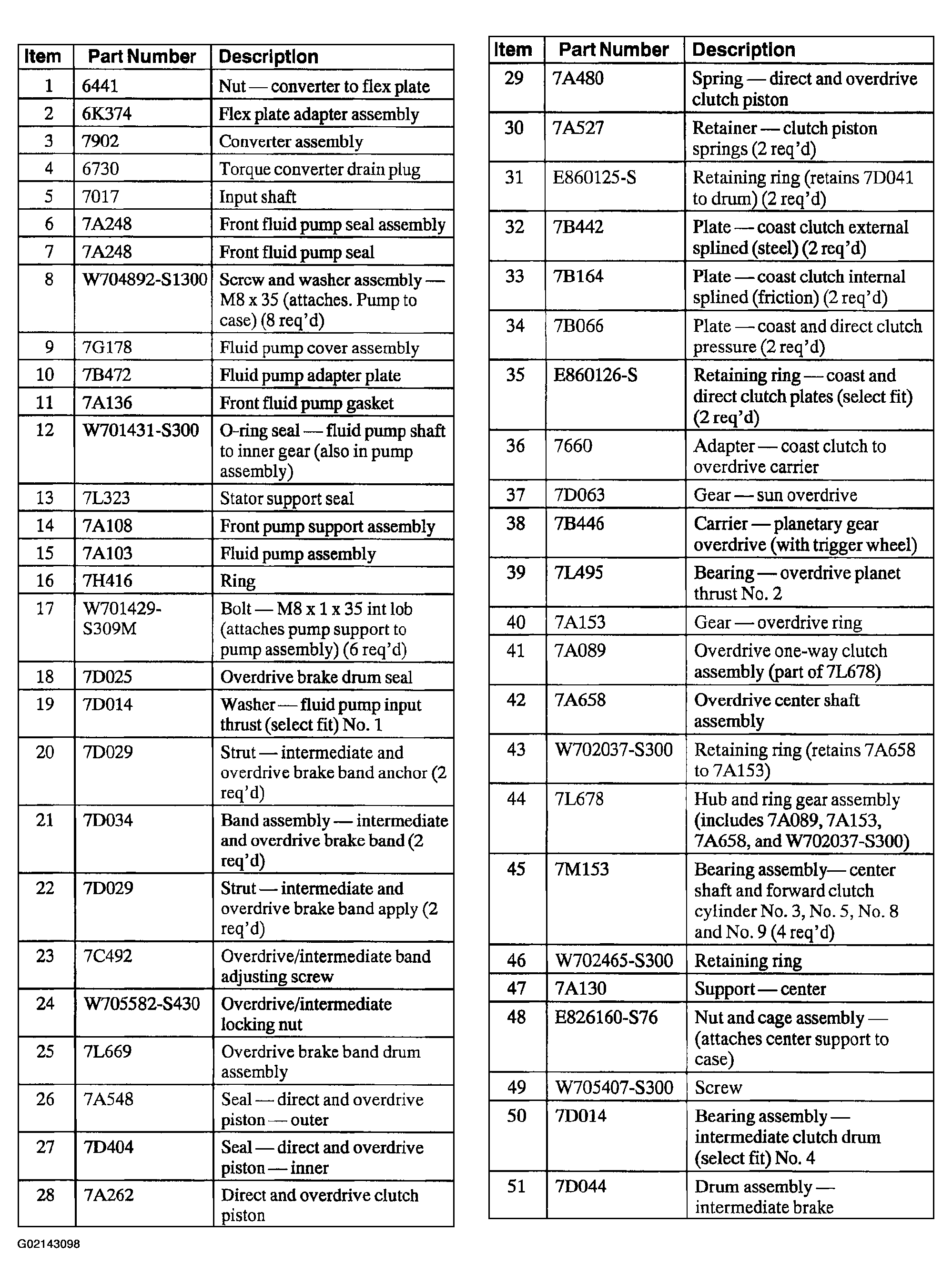

Fig 4: Transmission Disassembled View - Legend (1 Of 3)

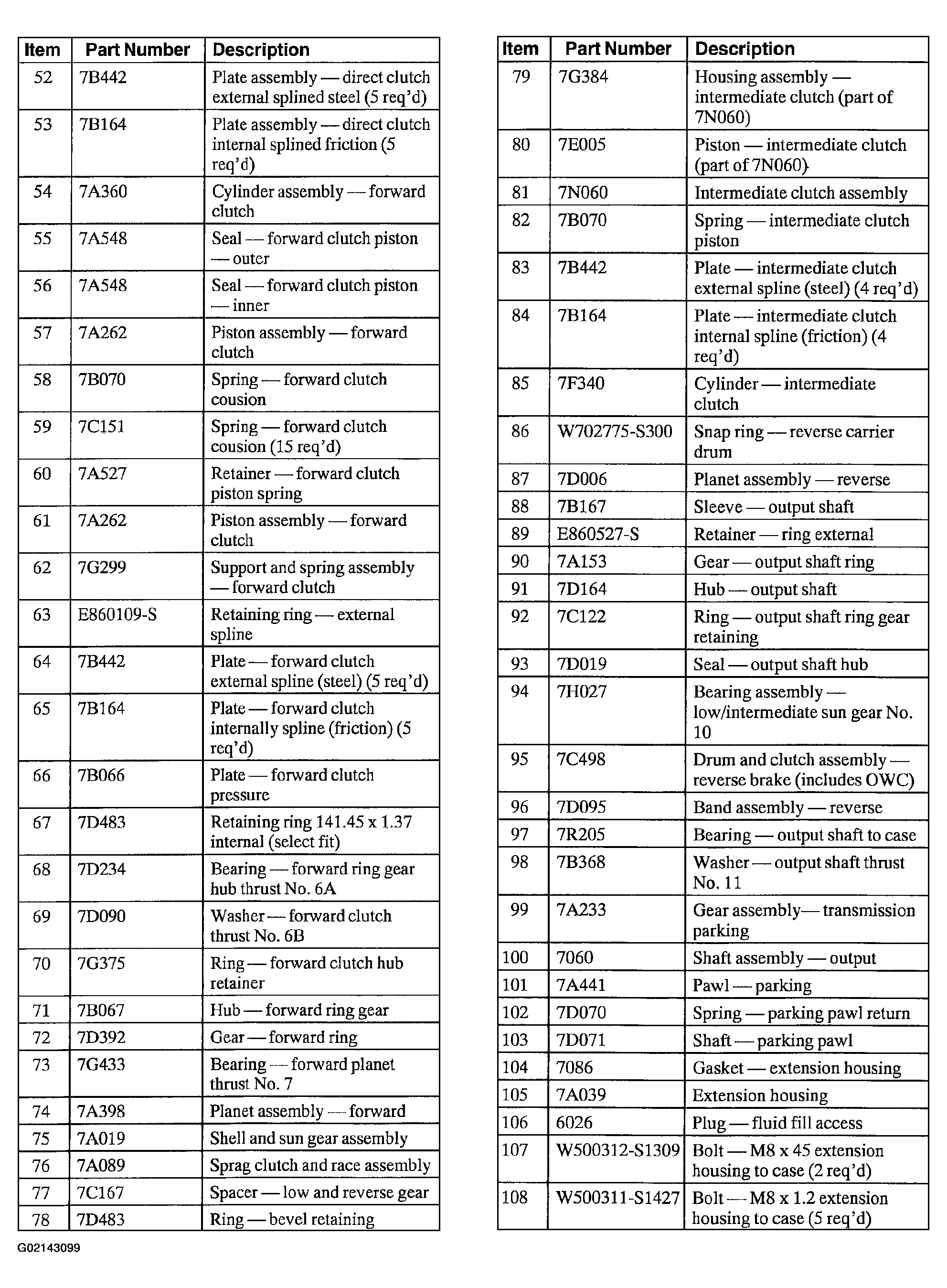

Fig 5: Transmission Disassembled View - Legend (2 Of 3)

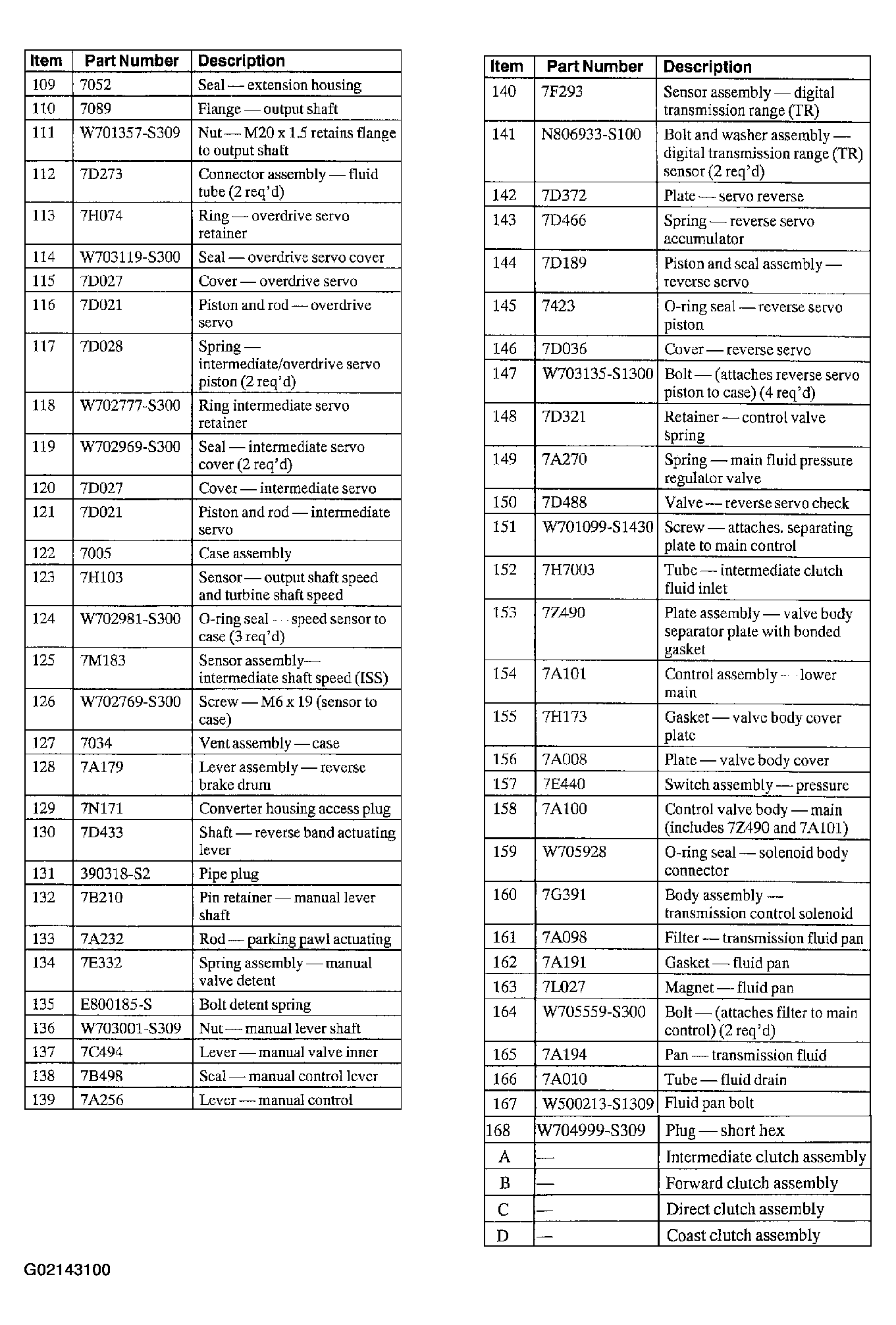

Fig 6: Transmission Disassembled View - Legend (3 Of 3)
