Main Control Valve Body: Notes

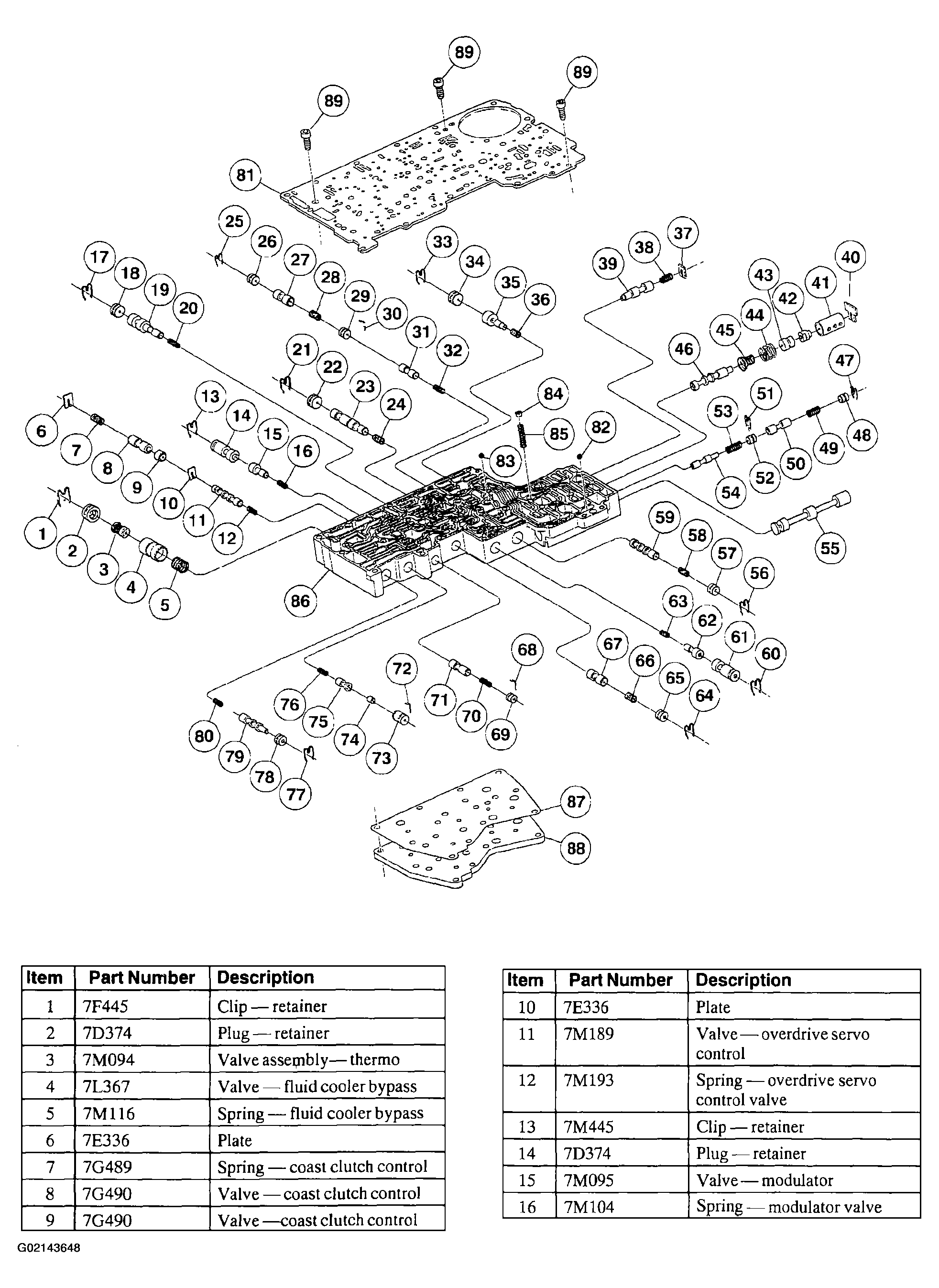

Fig 1: Main Control Valve Body - Exploded View

G02143648

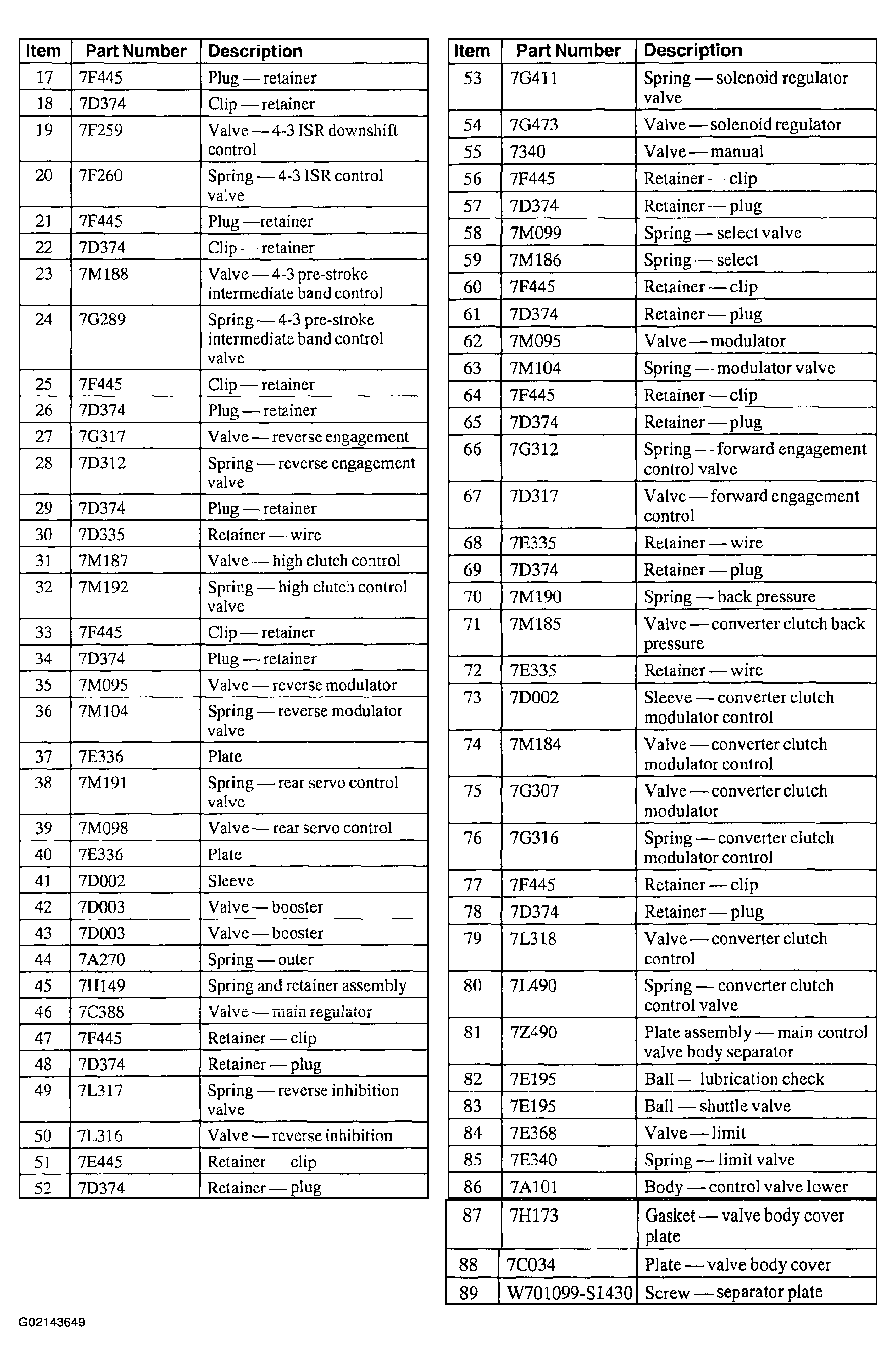

Fig 2: Main Control Valve Body - Legend

G02143649
