Anti-Lock Control Module
Disconnect the battery ground cable.
Remove the components in the order indicated in the following illustration and table.
Install in the reverse order of removal.

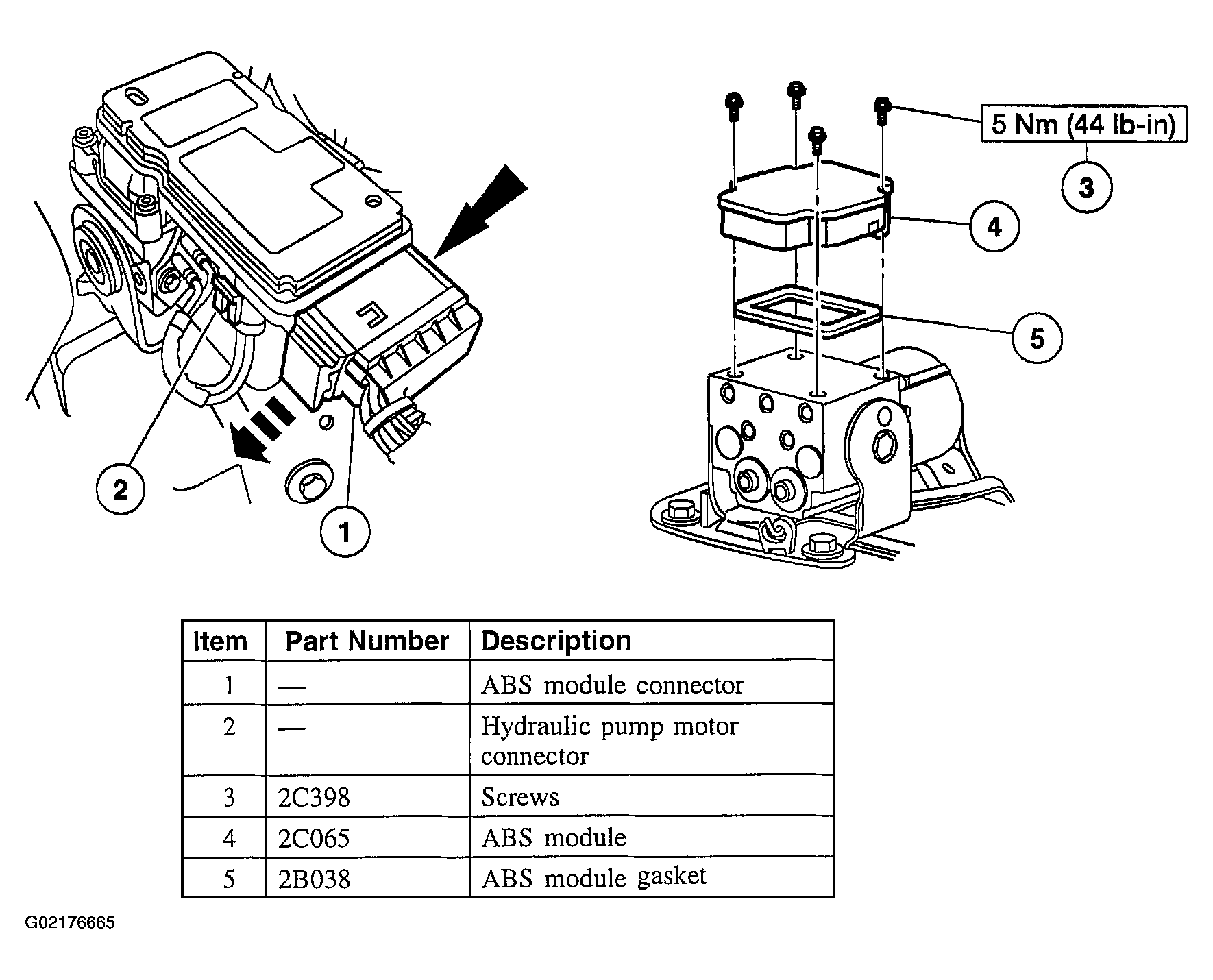

Fig 1: Removing Sequence Of Anti-Lock Control Module
Courtesy of FORD MOTOR CO.
