Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

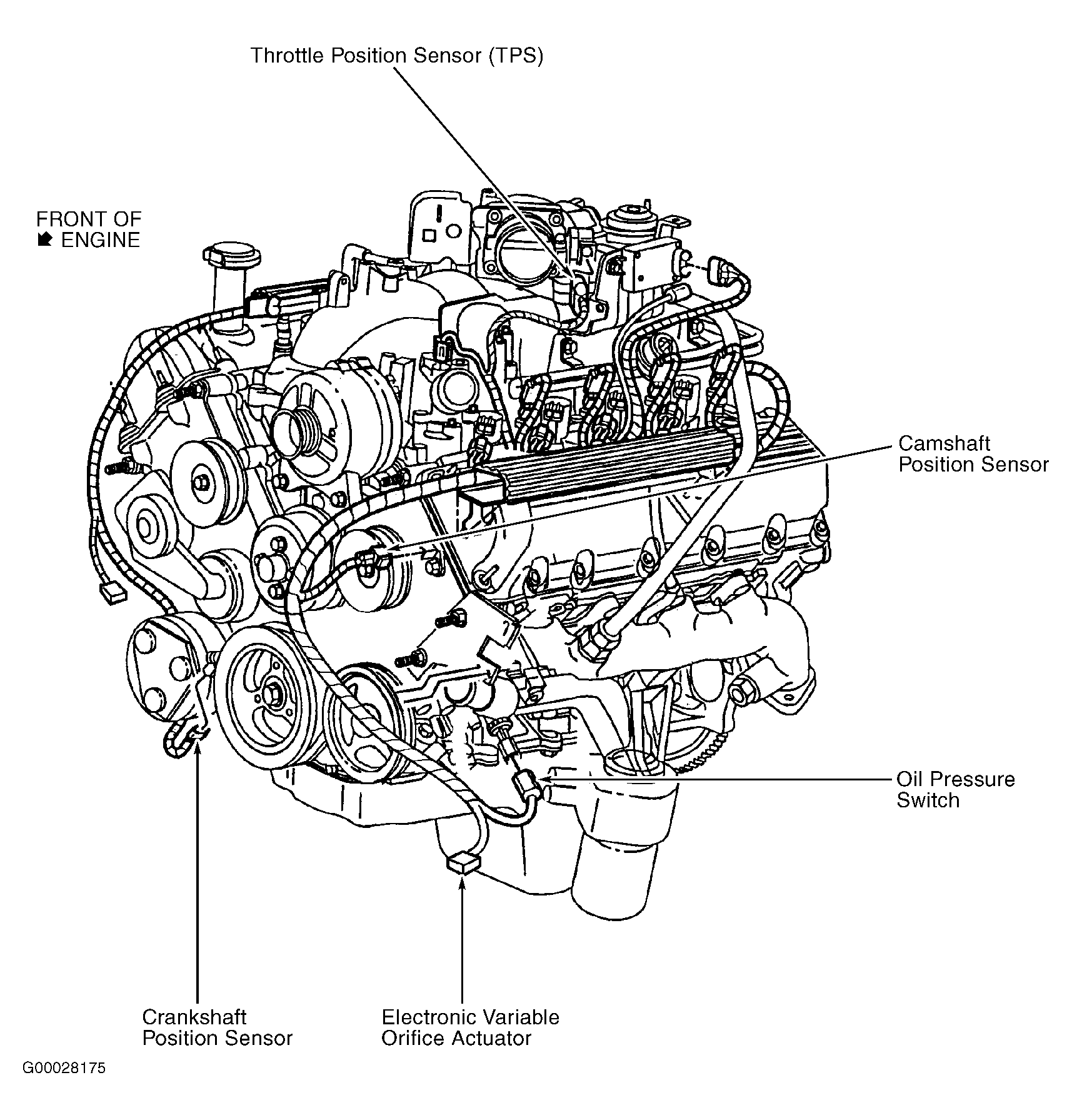

Fig 1: Left Front Of Engine

Courtesy of FORD MOTOR CO.

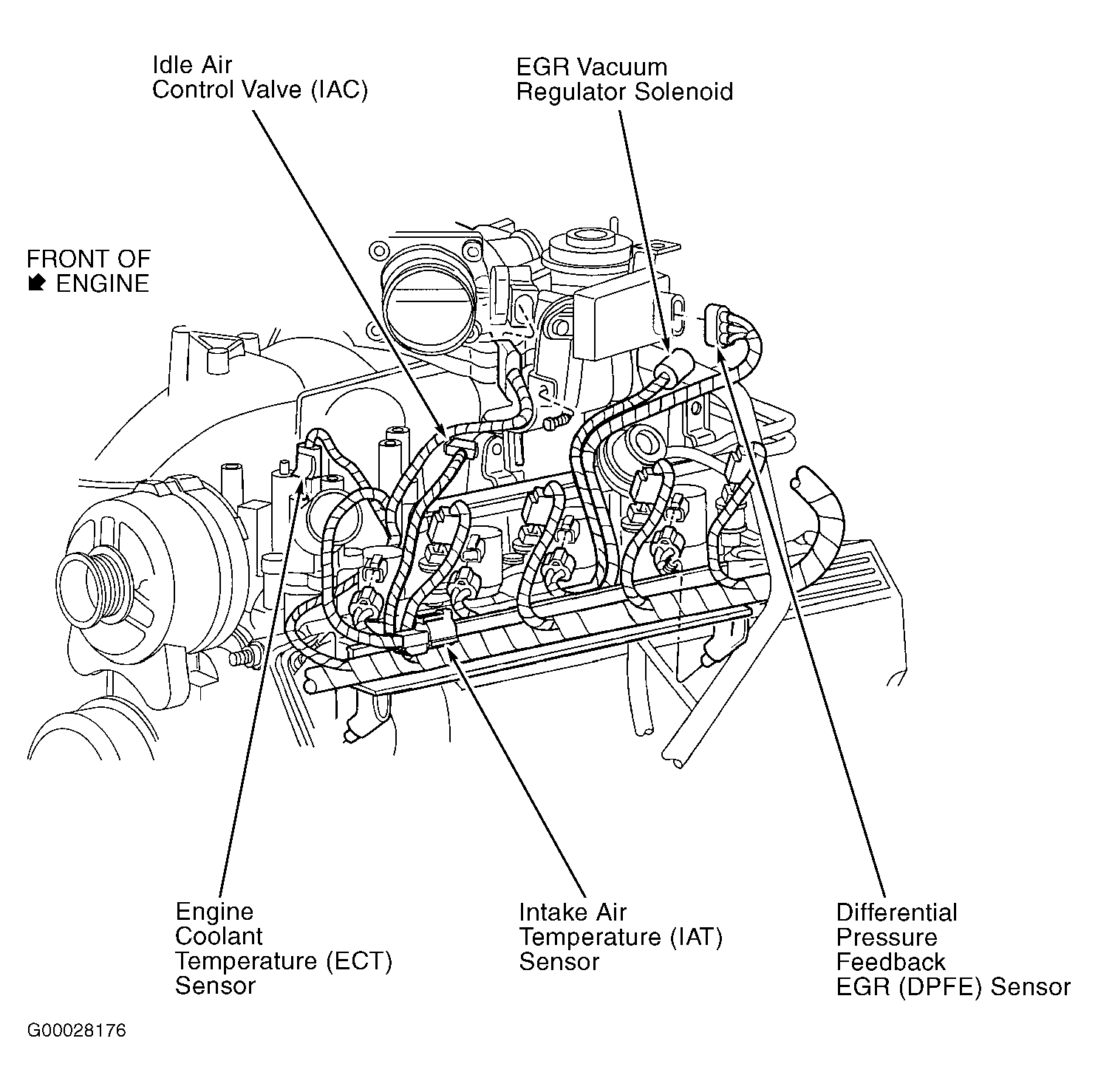

Fig 2: Top Left Side Of Engine

Courtesy of FORD MOTOR CO.

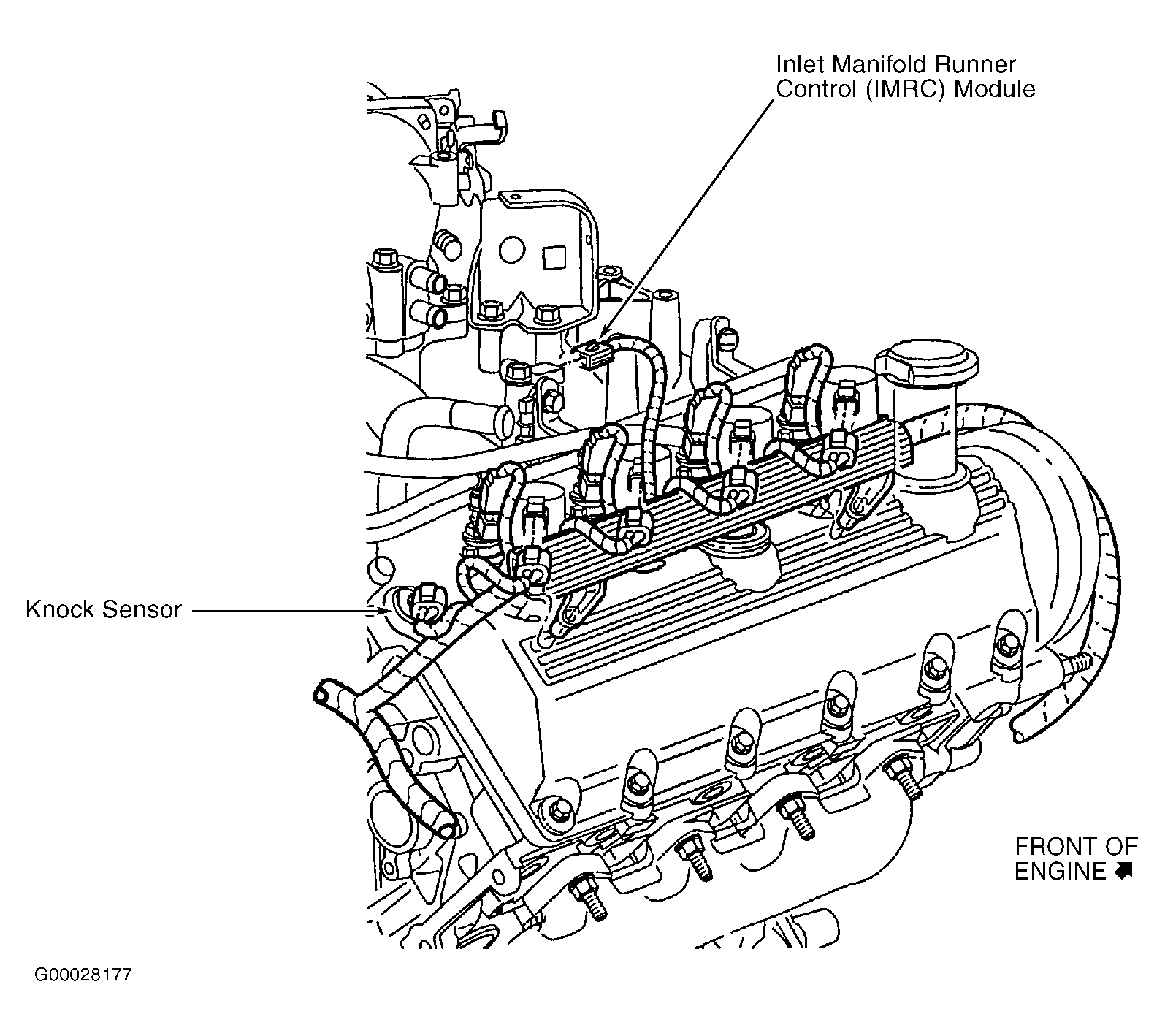

Fig 3: Top Right Side Of Engine

Courtesy of FORD MOTOR CO.

Fig 4: Left Side Of Engine Compartment

Courtesy of FORD MOTOR CO.

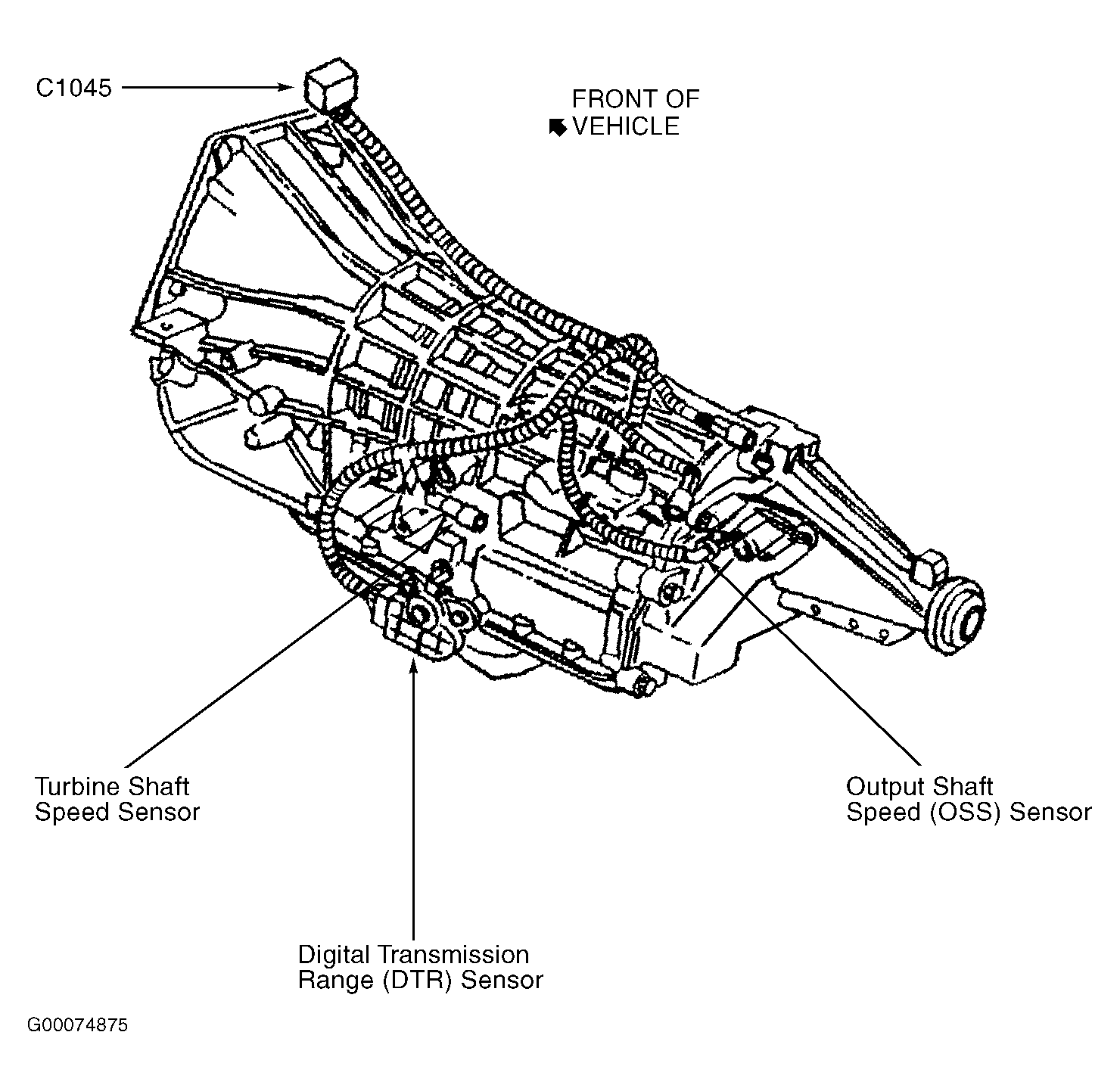

Fig 5: Left Side Of Transmission

Courtesy of FORD MOTOR CO.

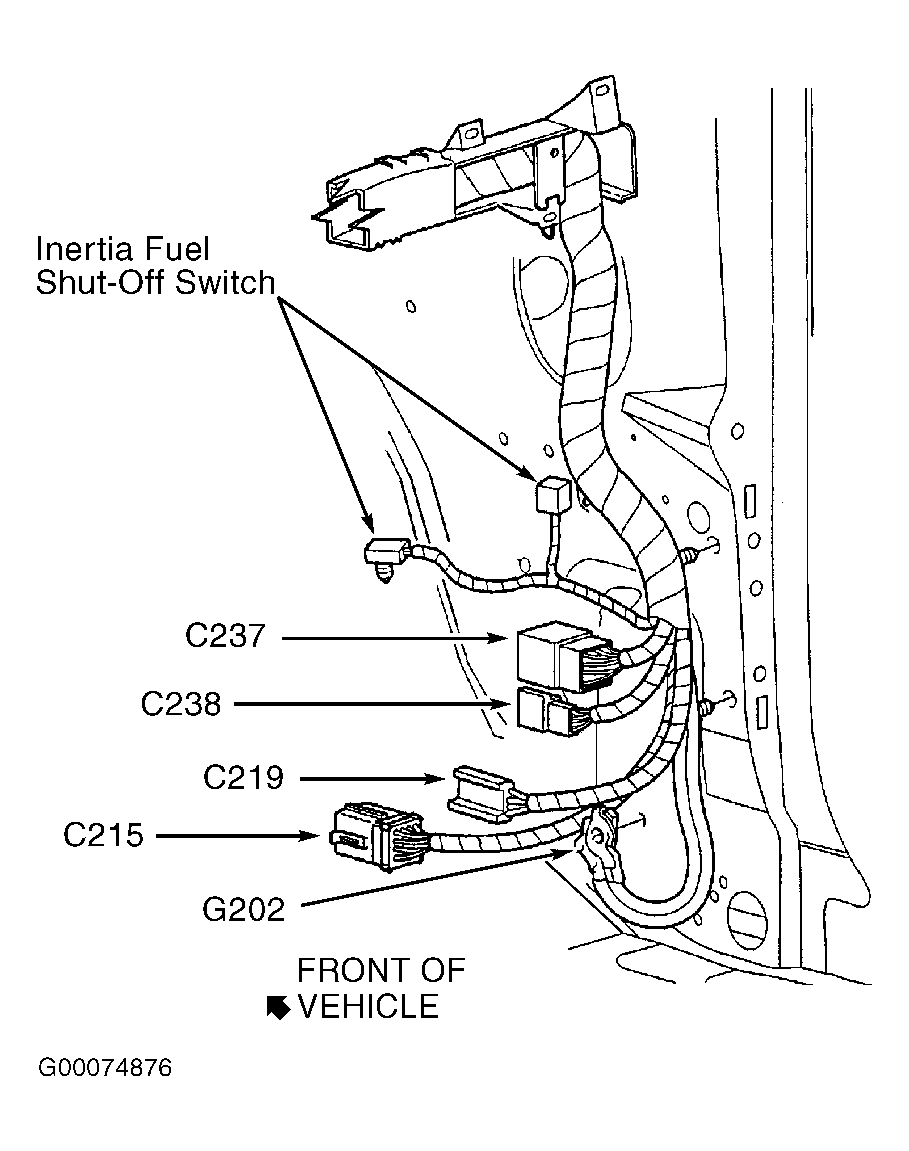

Fig 6: Right Kick Panel

Courtesy of FORD MOTOR CO.

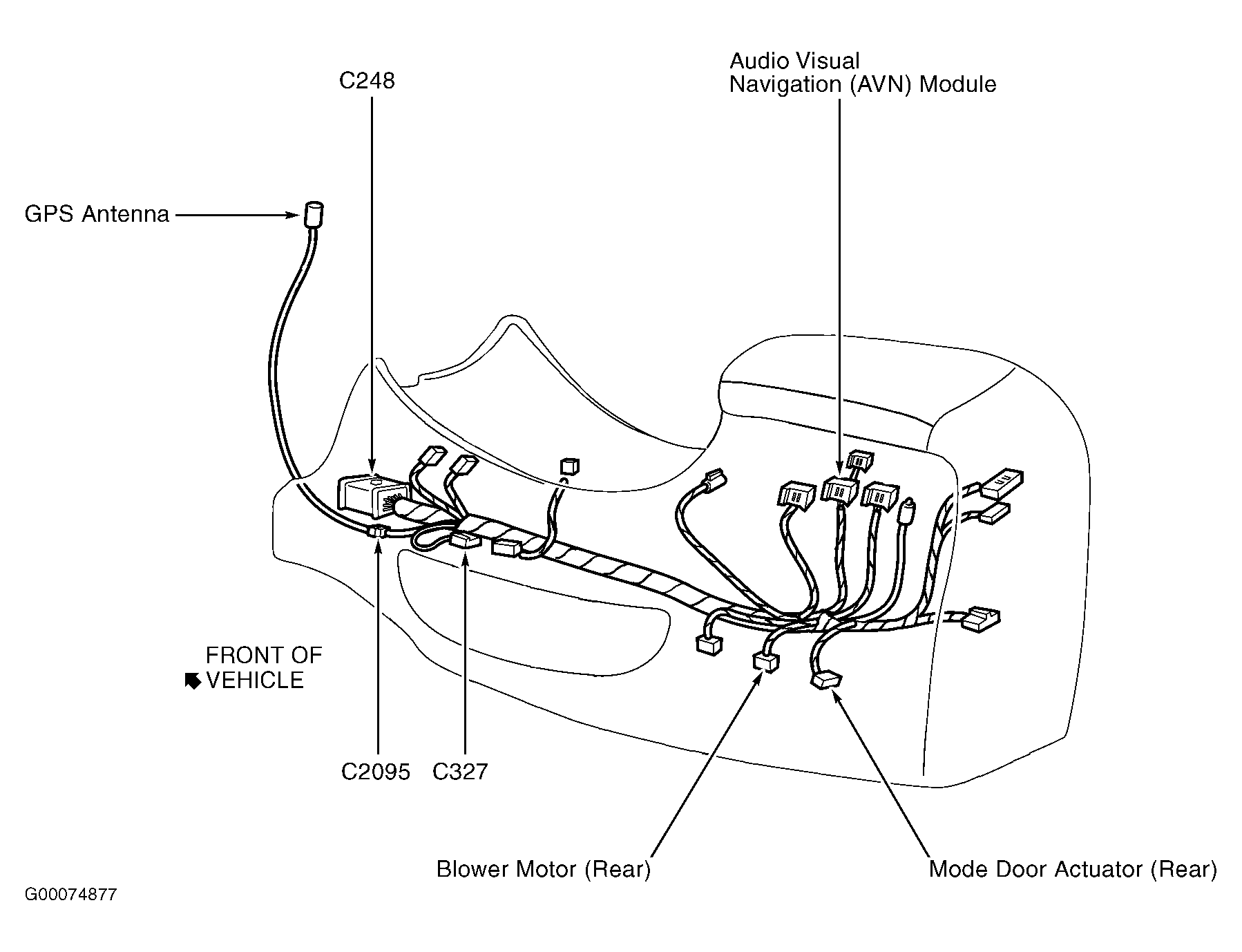

Fig 7: Center Console

Courtesy of FORD MOTOR CO.

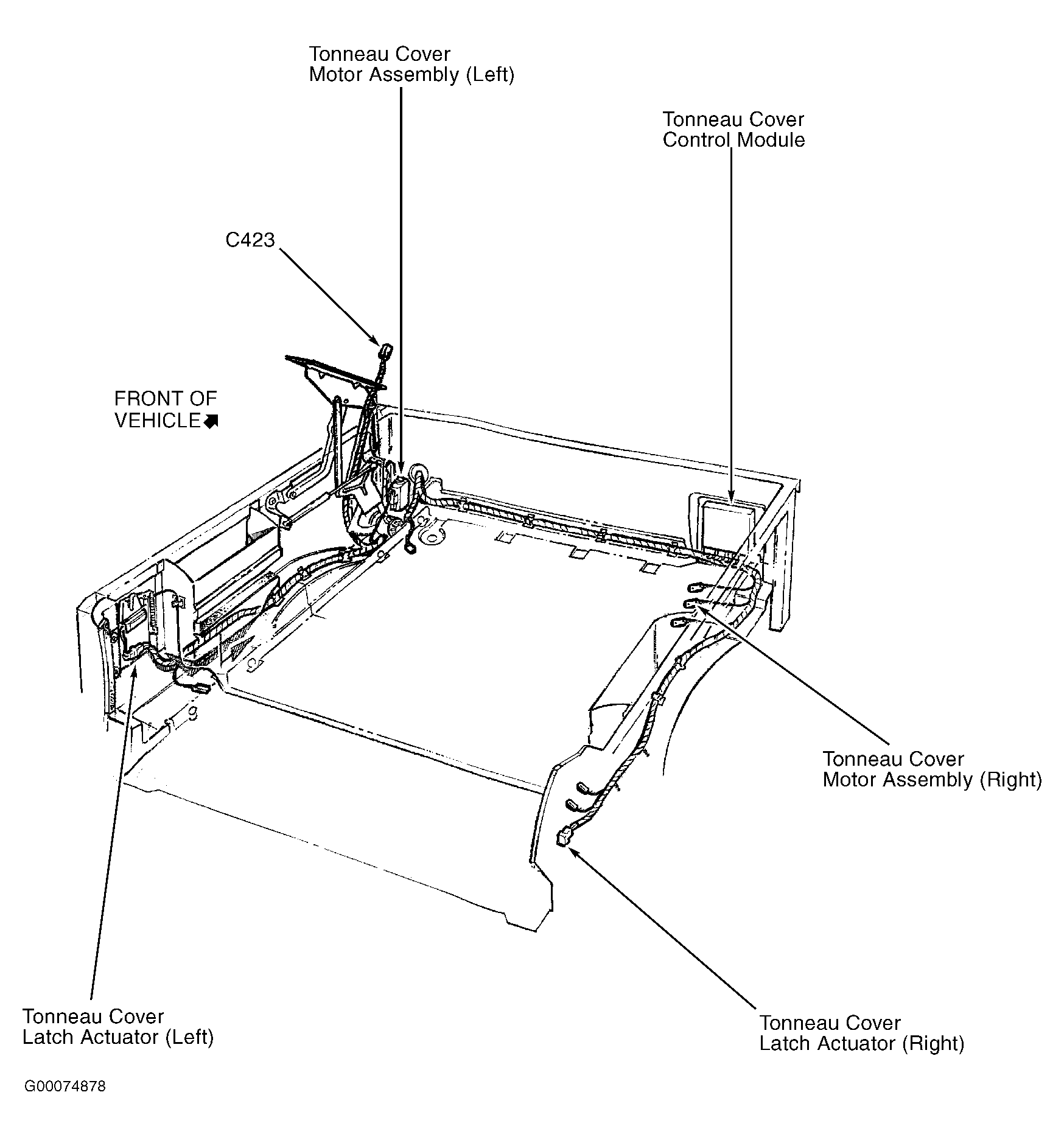

Fig 8: Cargo Area

Courtesy of FORD MOTOR CO.
