Torque Specifications

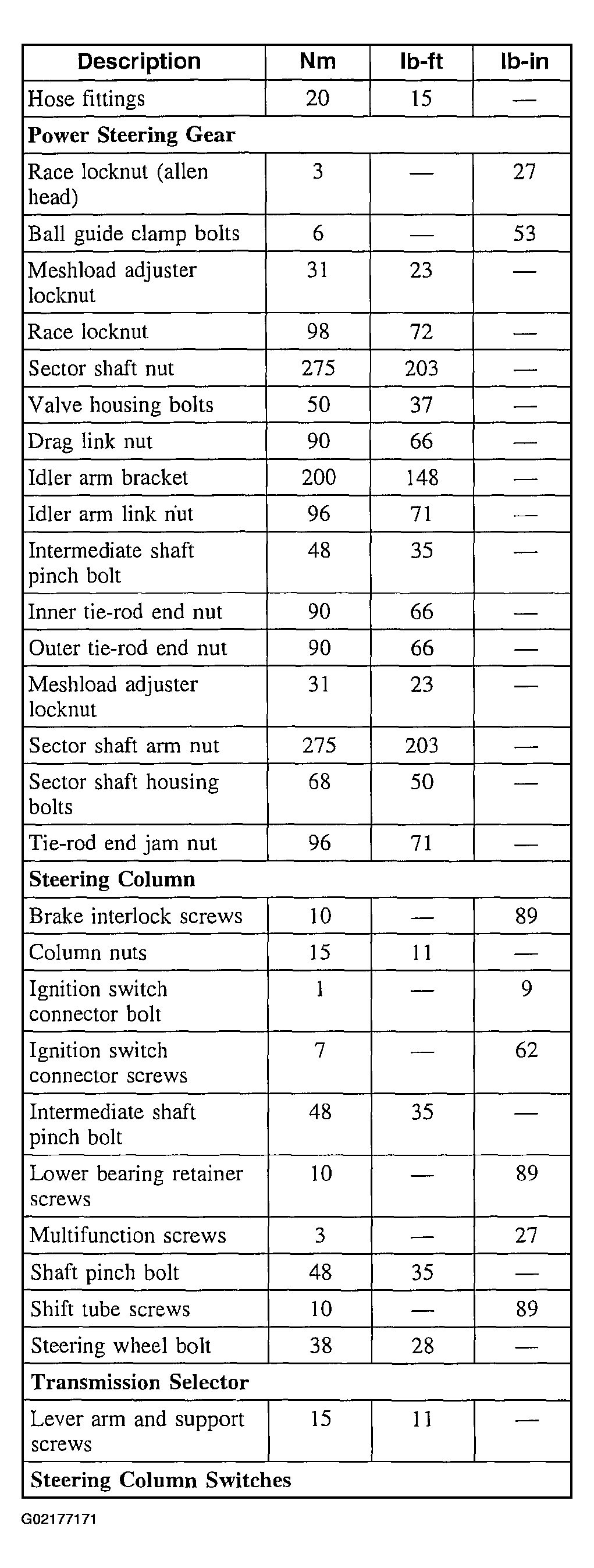

Fig 1: Steering System Torque Specifications Chart (1 Of 4)
Courtesy of FORD MOTOR CO.

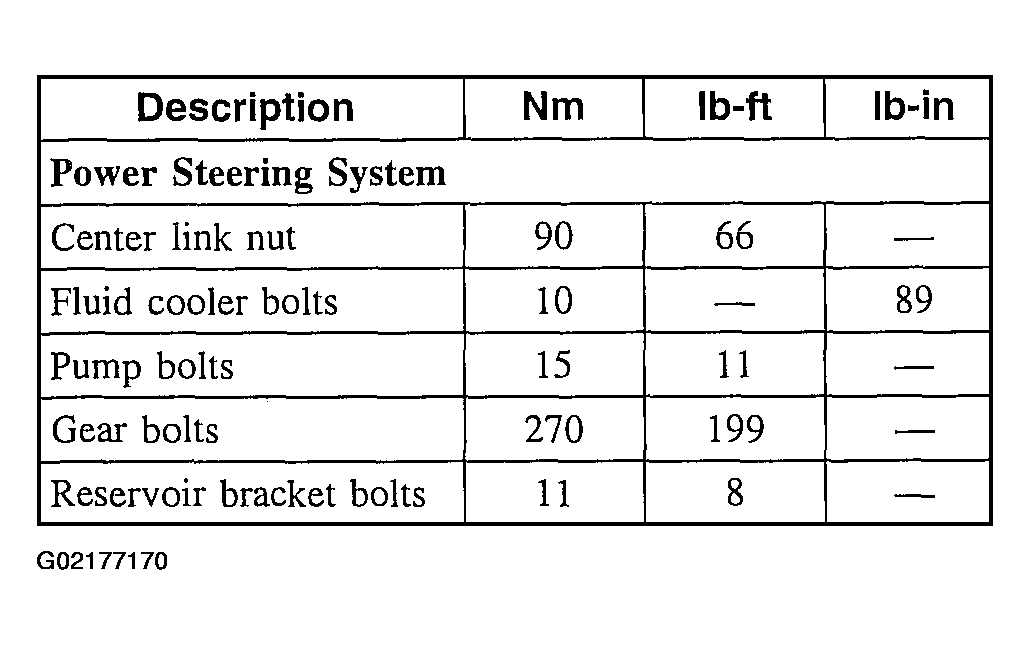

Fig 2: Steering System Torque Specifications Chart (2 Of 4)
Courtesy of FORD MOTOR CO.
Fig 3: Steering System Torque Specifications Chart (3 Of 4)
Courtesy of FORD MOTOR CO.
Fig 4: Steering System Torque Specifications Chart (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
