Park System: Installation

    NOTE: If installation of a new park gear is required, refer to OUTPUT SHAFT - CHECK .

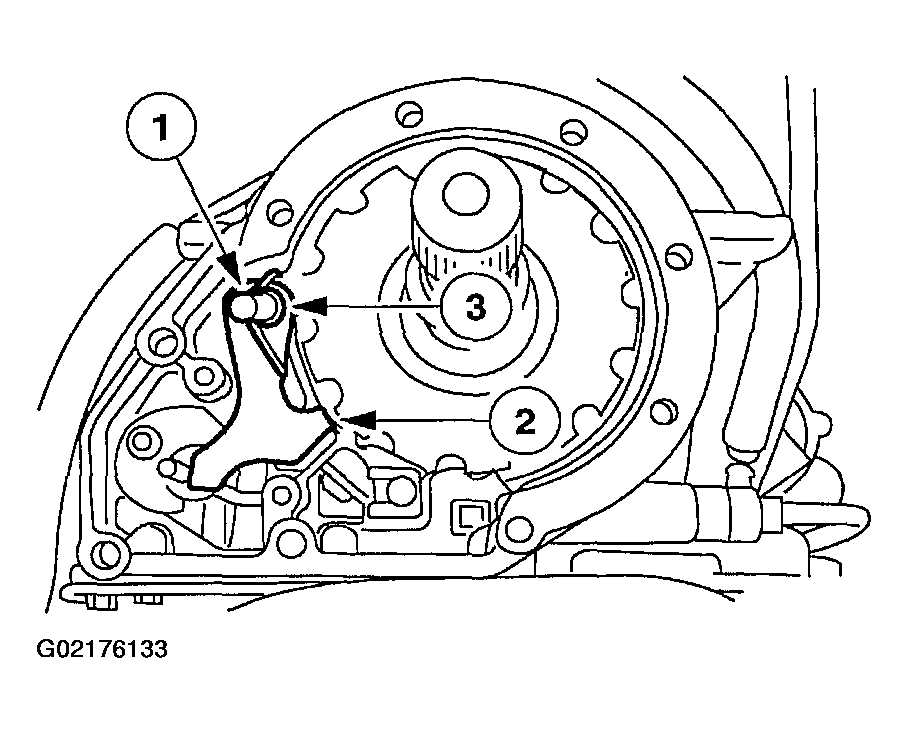

    Fig 1: Installing Park Pawl Shaft
    G02176133Courtesy of FORD MOTOR CO.
  1. Install the park pawl shaft.
    1. Install the park pawl shaft.
    2. Install the park pawl.
    3. Install the park pawl return spring.
  2. Install the parking rod guide plate.
    1. Install the parking rod guide plate.
    2. Install the bolts.

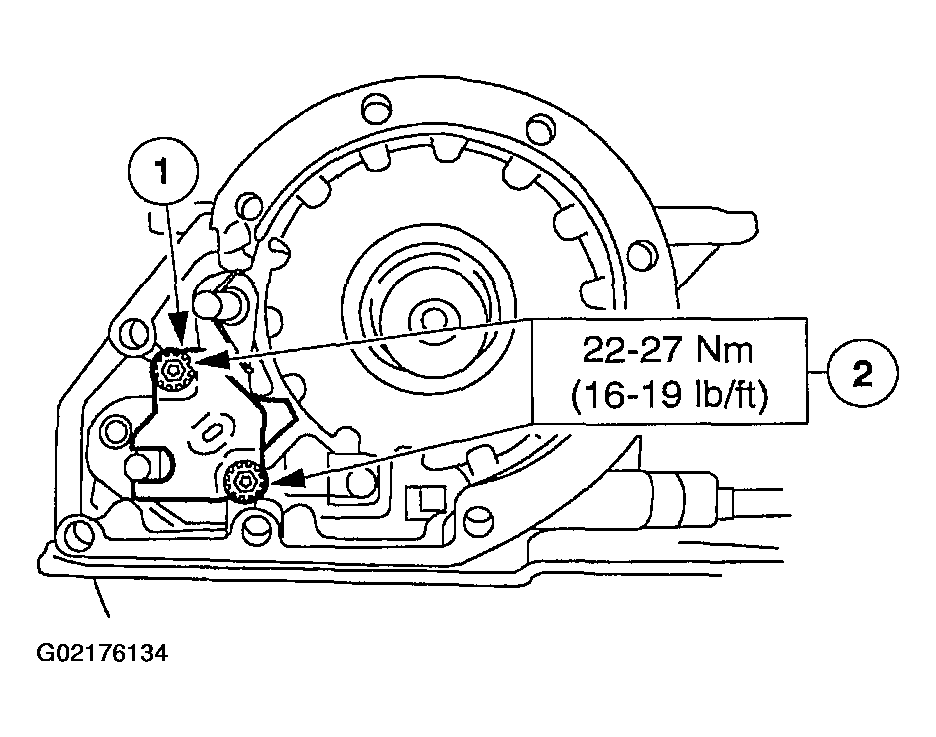

    Fig 2: Installing Parking Rod Guide Plate
    G02176134Courtesy of FORD MOTOR CO.
  3. Install the extension housing gasket and the extension housing.
