Band/Clutch Application Chart A

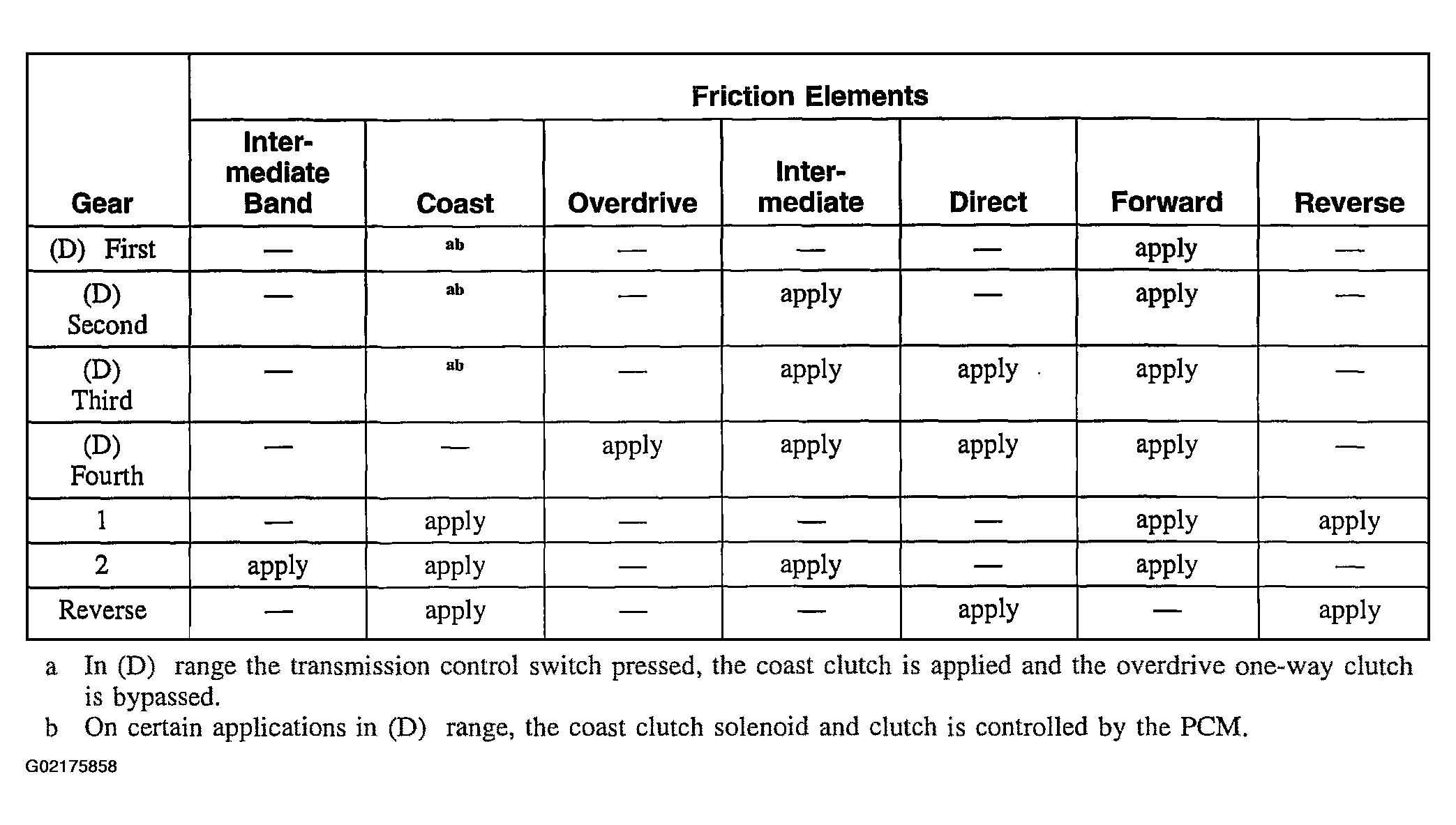

Fig 1: Band/Clutch Application Chart A
G02175858Courtesy of FORD MOTOR CO.
