Pinpoint Test B: The Module Does Not Respond To The Diagnostic Tool - Audio Control Module (ACM)

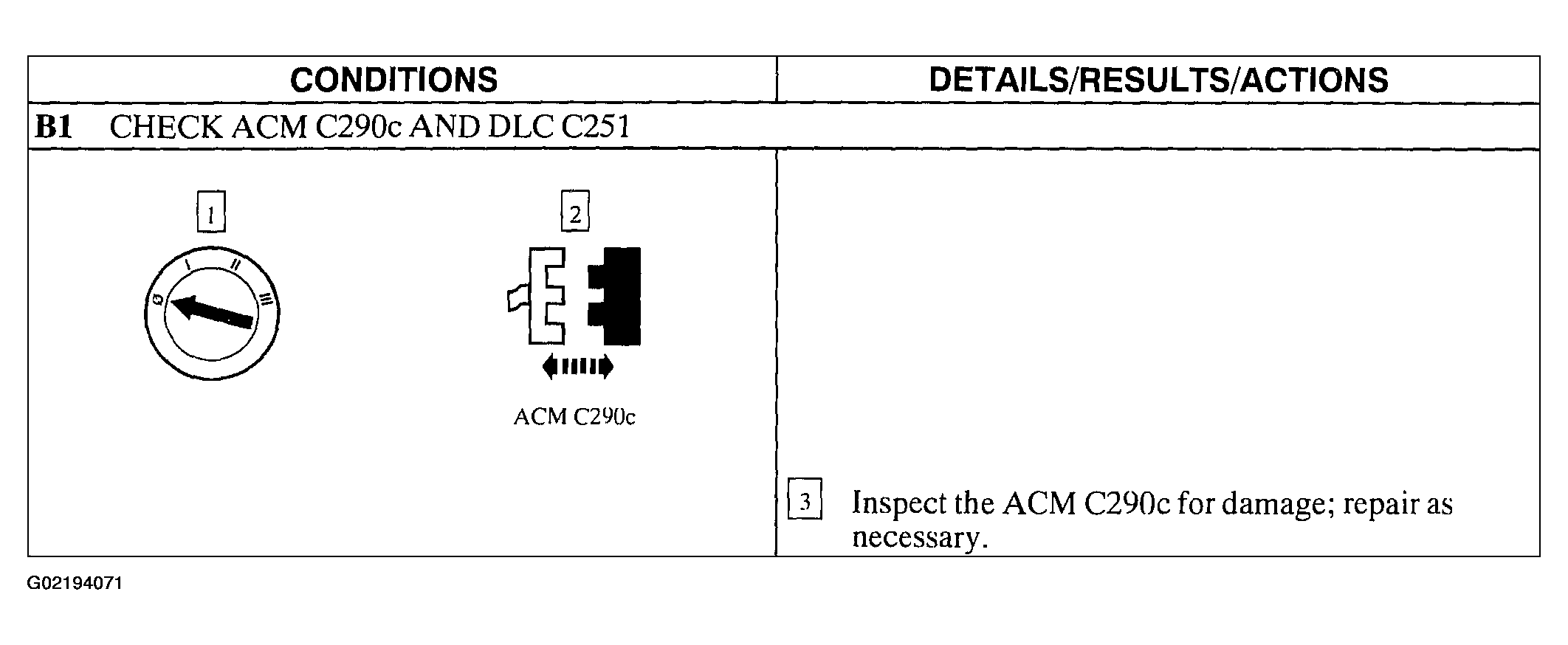

Fig 1: Pinpoint Test B: The Module Does Not Respond To The Diagnostic Tool - Audio Control Module (ACM) (Step B1)

Courtesy of FORD MOTOR CO.

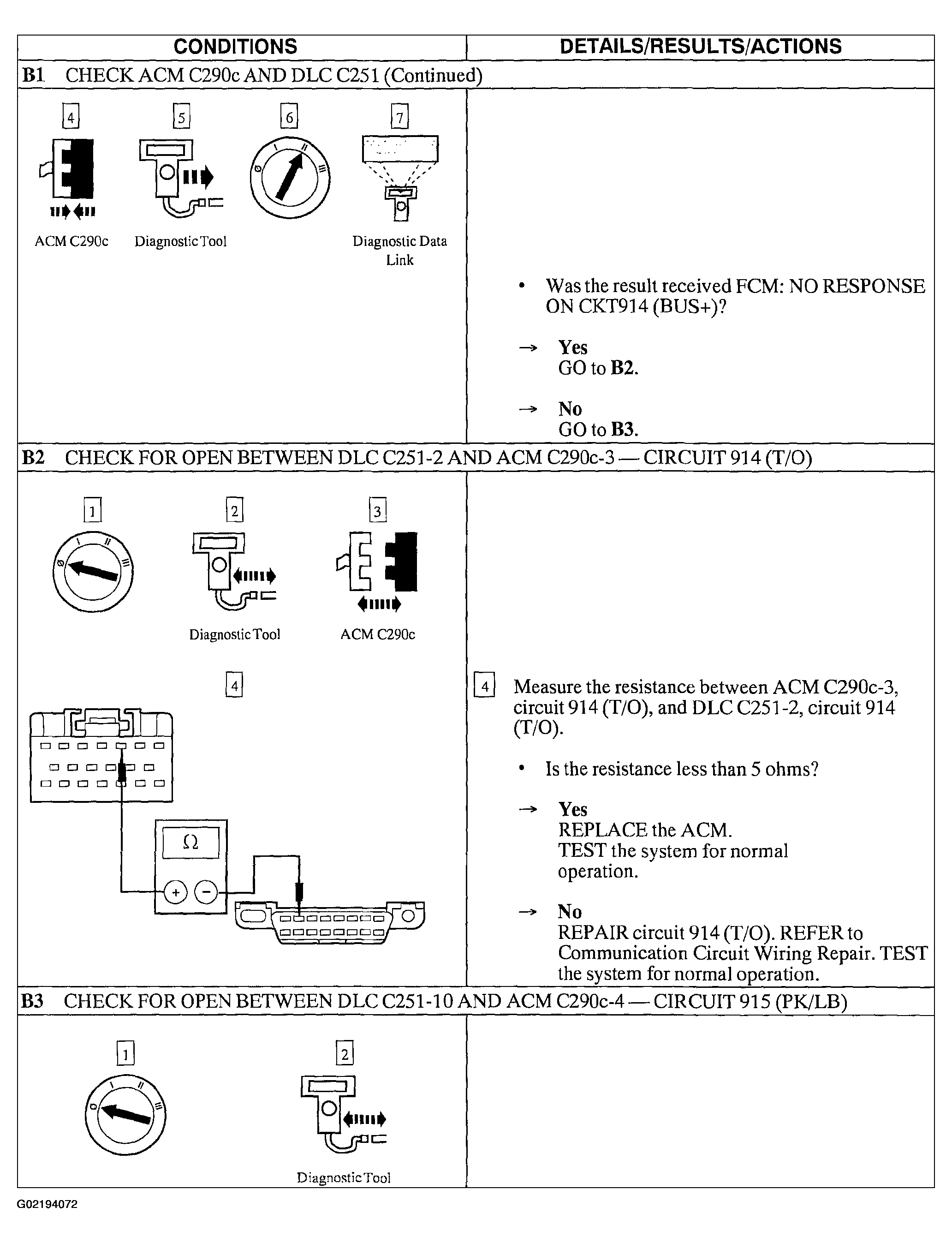

Fig 2: Pinpoint Test B: The Module Does Not Respond To The Diagnostic Tool - Audio Control Module (ACM) (Steps B1 Cont.-B3)

Courtesy of FORD MOTOR CO.

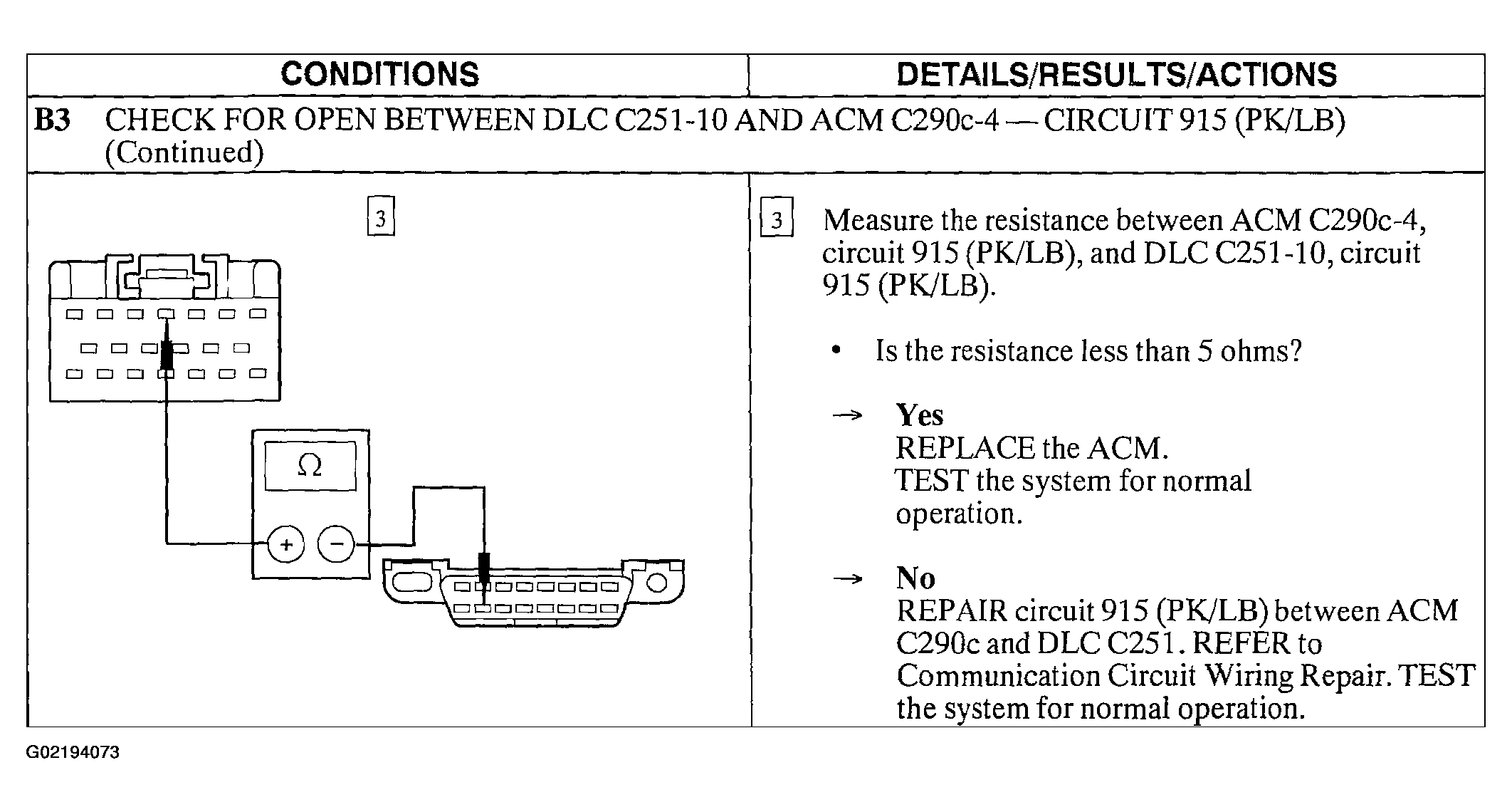

Fig 3: Pinpoint Test B: The Module Does Not Respond To The Diagnostic Tool - Audio Control Module (ACM) (Steps B3 Cont.)
