Ignition Switch Continuity Check
Ignition Switch Continuity Check

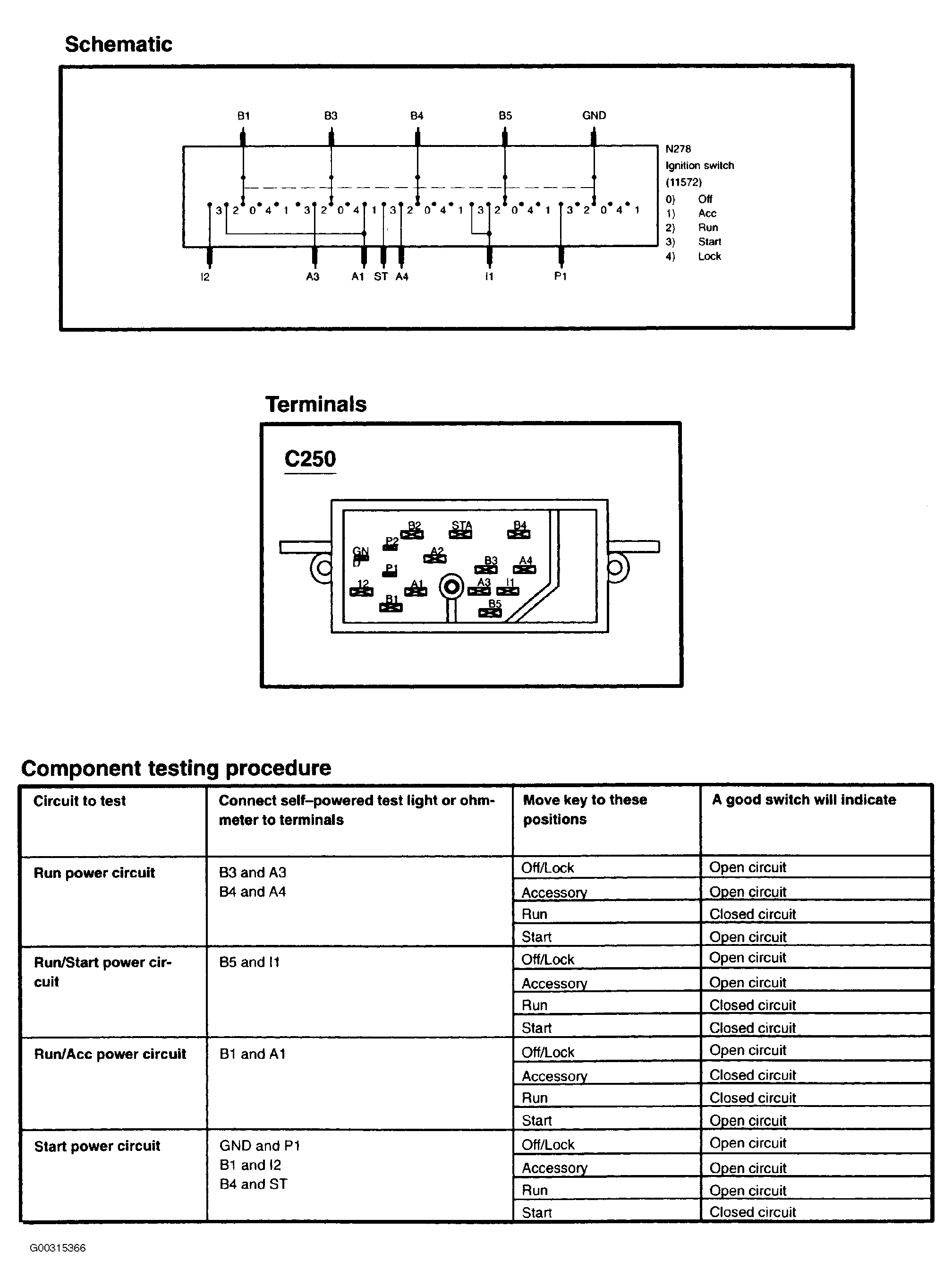

Fig 1: Ignition Switch Continuity Check
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
