Multi-Function Switch

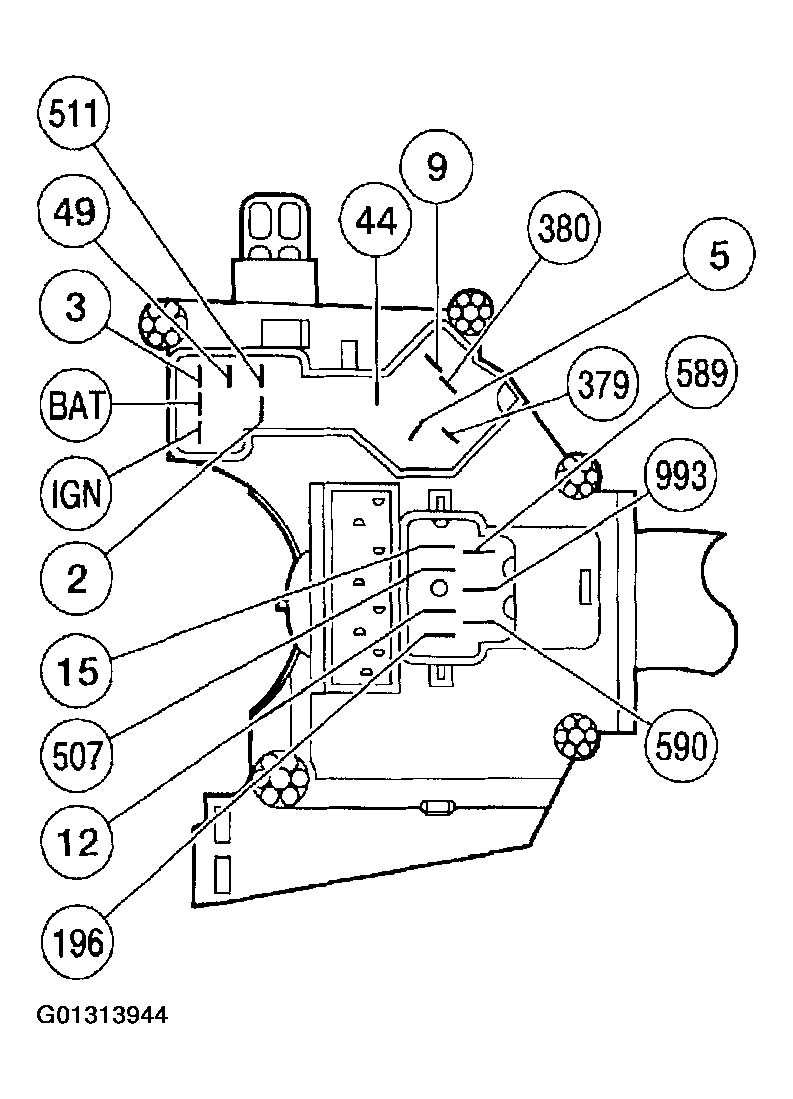

Fig 1: Multi-Function Switch Terminals Identification

G01313944

Courtesy of FORD MOTOR CO.

Measure the resistance between the multi-function switch terminals:

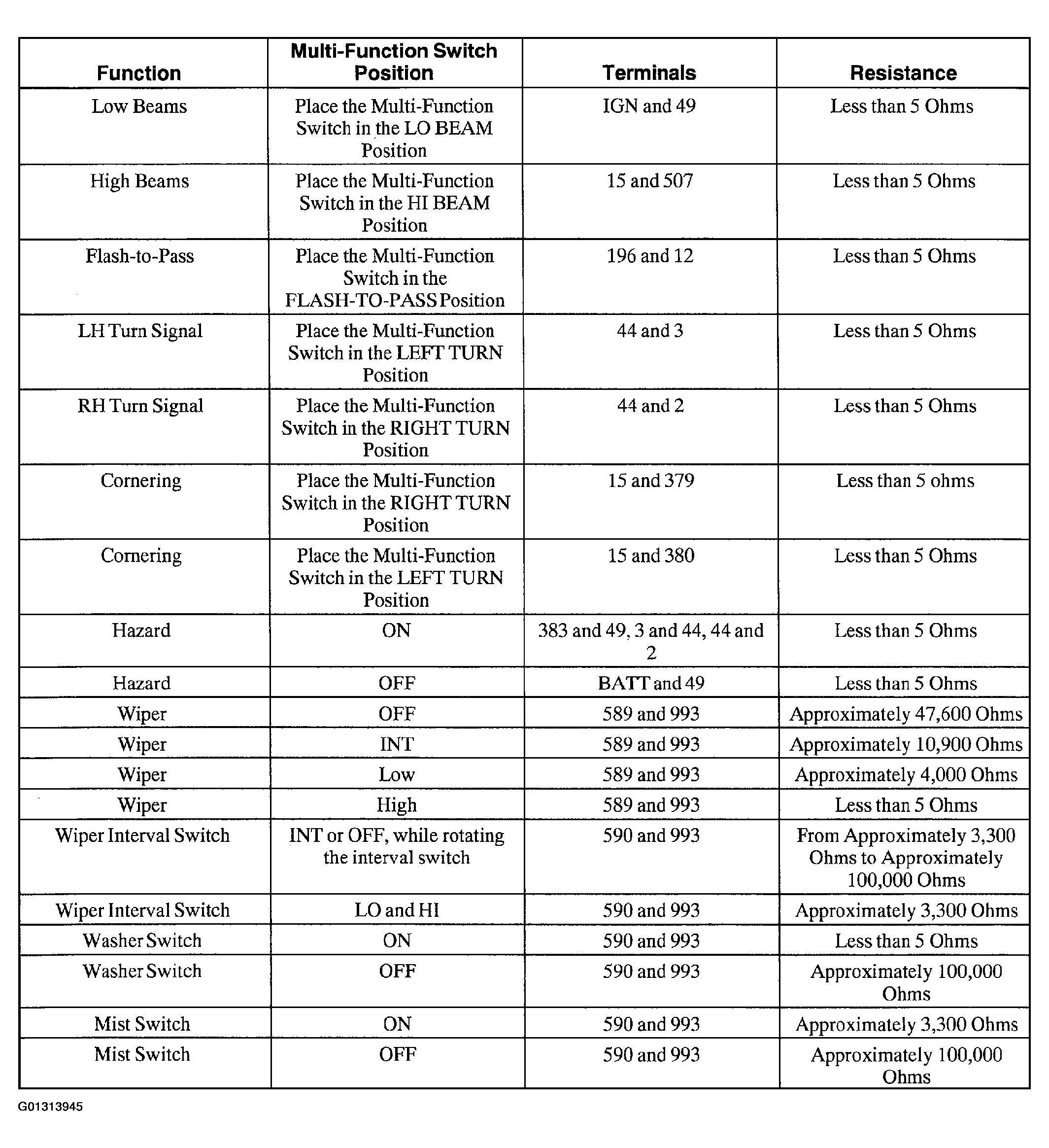

Fig 2: Multi-Function Switch Diagnostic Chart
Courtesy of FORD MOTOR CO.

If the resistances are not as specified, replace the multi-function switch; REFER to MULTIFUNCTION SWITCH . If the resistances are as specified the multi-function switch is OK
