Multi-Function Switch: Installation

NOTE: When the battery (10655) is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

To install, reverse the removal procedure.

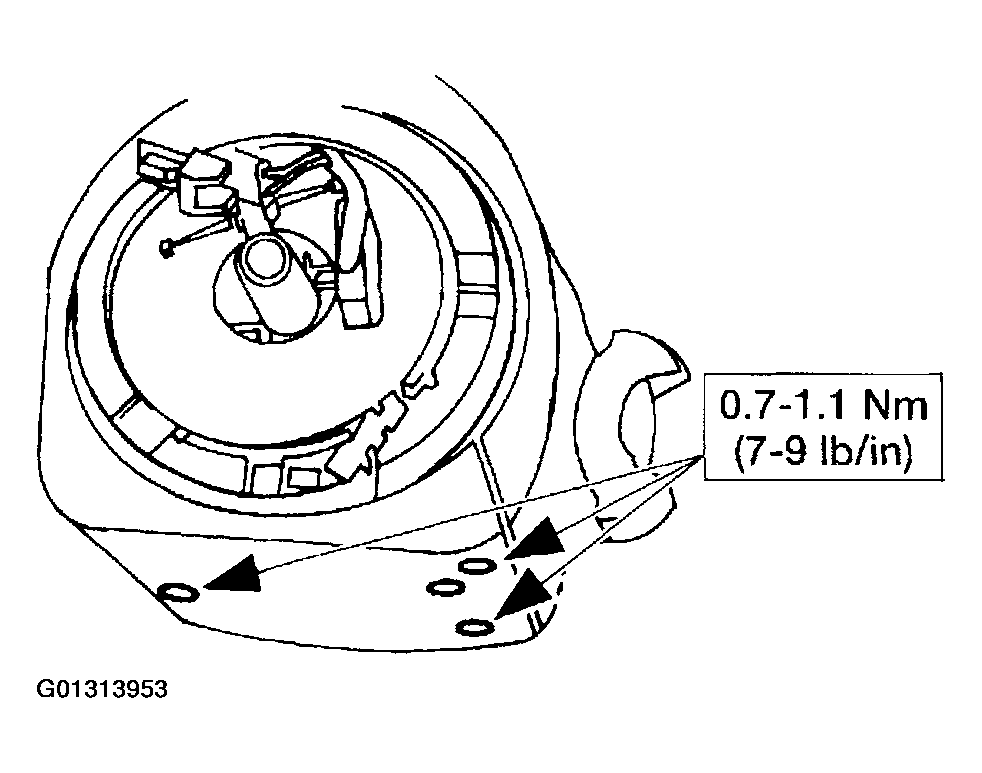

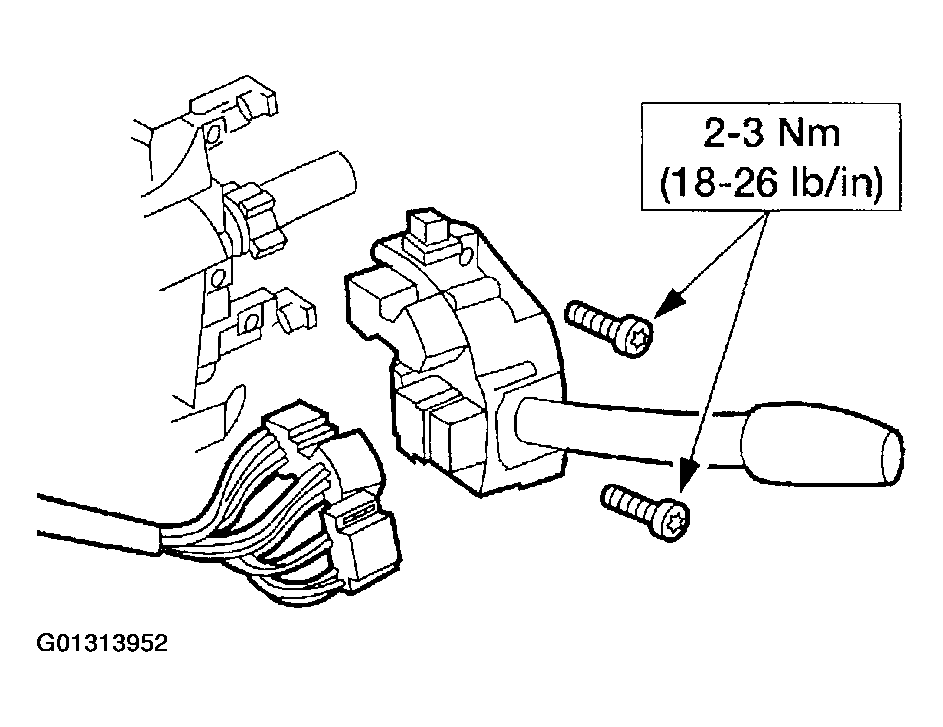

Fig 1: Installing Multi-Function Switch
Courtesy of FORD MOTOR CO.

Fig 2: Installing Upper & Lower Steering Column Shrouds
Courtesy of FORD MOTOR CO.

Fig 3: Installing Tilt Wheel Handle & Shank
Courtesy of FORD MOTOR CO.
