Diagnosis & Testing: Seats: Notes

Refer to MEMORY SYSTEMS power memory seats wiring diagrams for schematic and connector information.

Refer to POWER SEATS Wiring Diagrams for schematic and connector information.

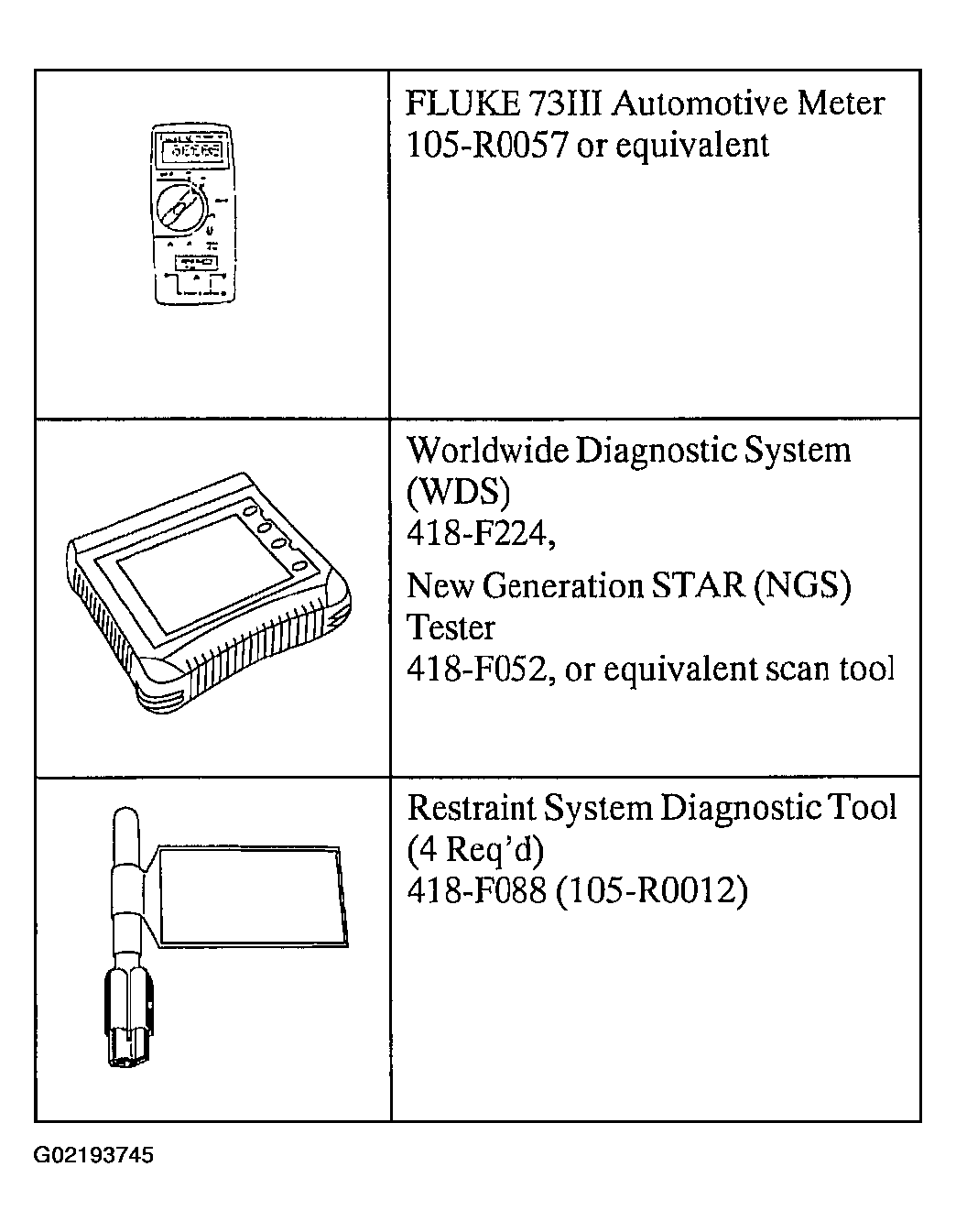

Fig 1: Special Tool(s)

Courtesy of FORD MOTOR CO.

Restraint System Diagnostic Tool Warning

WARNING: This tool is for restraint system service only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
