Seat-Front Armrest: Disassembly

  1. Remove the armrest. For additional information, refer to ARMREST-FRONT .
  2. Remove the trim cover.

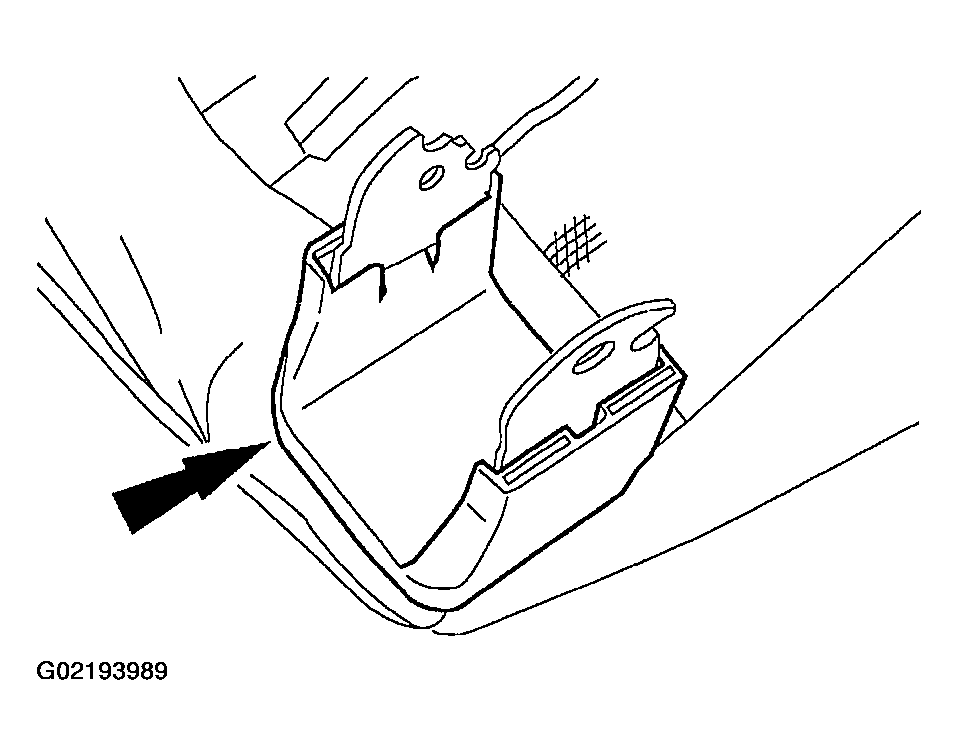

    Fig 1: Removing Trim Cover
    G02193989Courtesy of FORD MOTOR CO.
  3. Release the J retainers.

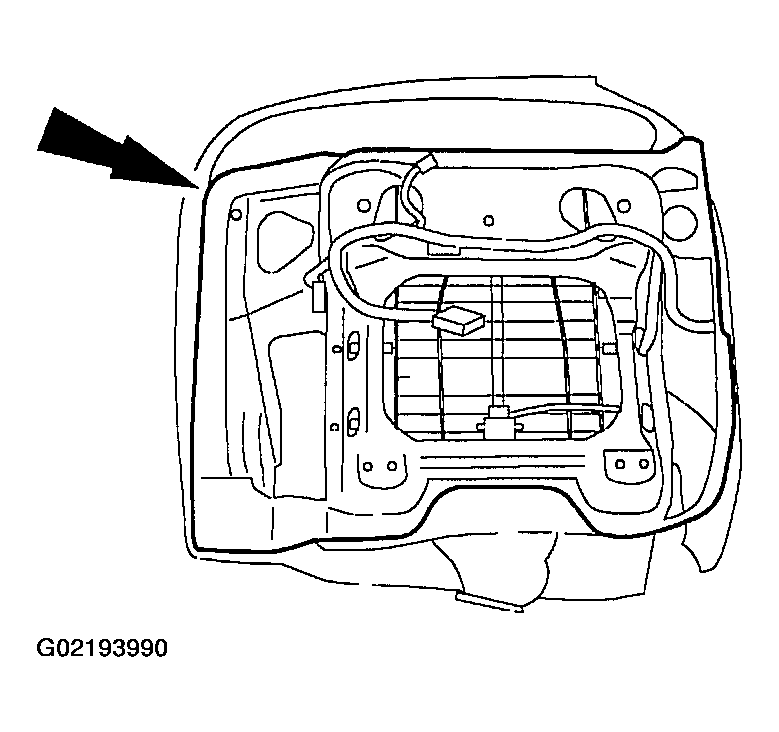

    Fig 2: Releasing J Retainers
    G02193990Courtesy of FORD MOTOR CO.
  4. Remove the bracket.

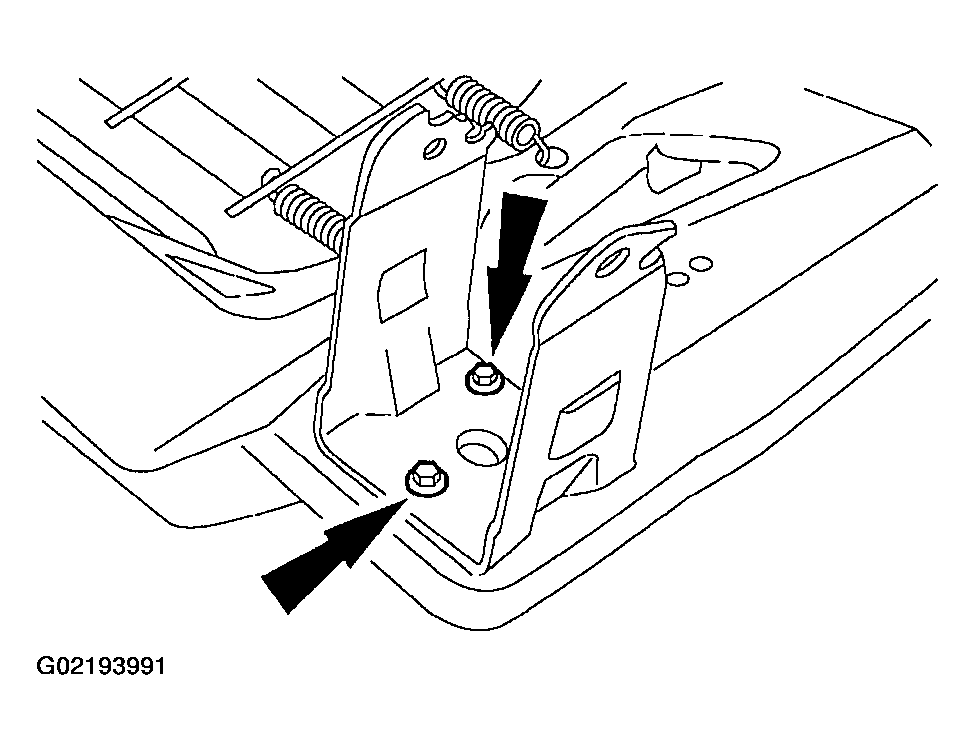

    Fig 3: Removing Bracket
    G02193991Courtesy of FORD MOTOR CO.
