Window Glass-Rear Door: Installation

NOTE: Two 1/4-20 x 1 inch bolts and two 1/4-20 nut and washer assemblies may be used as alternate fasteners for the rear door window glass retention.

Fig 1: Installing Door Window Glass Bracket Spacers & Retainers To Rear Door Window Glass

Courtesy of FORD MOTOR CO.

Install the door window glass bracket spacers (234A44) and the retainers to the rear door window glass.
Install the rear door window glass into the door.
Install the rivets using the heavy-duty riveter.

Fig 2: Installing Rivets
Courtesy of FORD MOTOR CO.
Install the weatherstrip.

Fig 3: Installing Weatherstrip
Courtesy of FORD MOTOR CO.
Install the bolt.

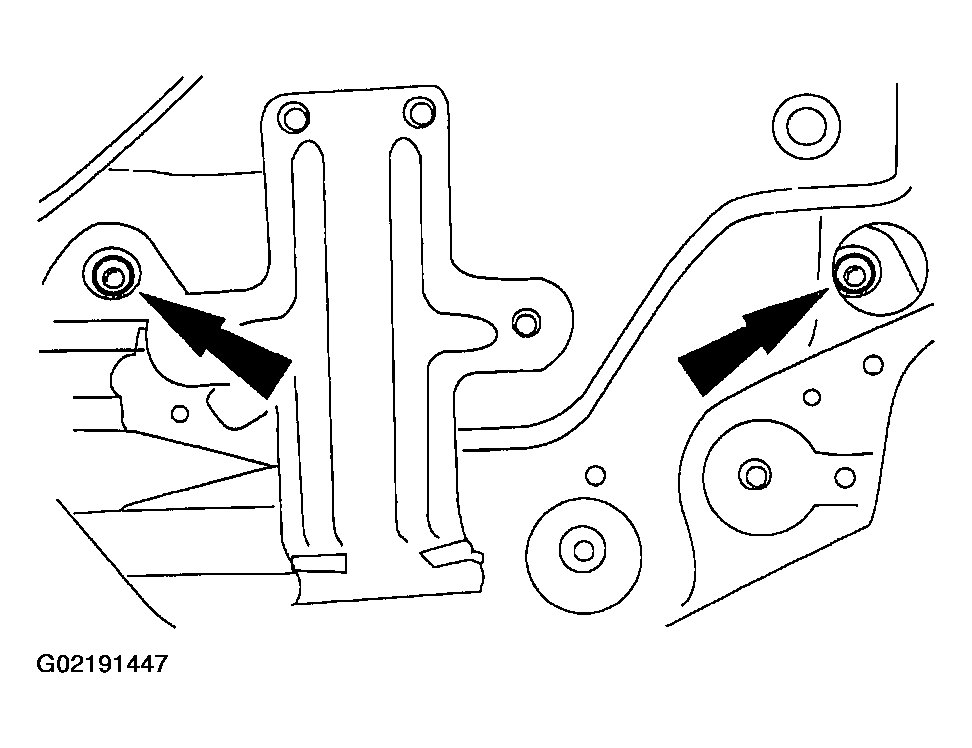

Fig 4: Installing Bolt
Courtesy of FORD MOTOR CO.
Install the rear door trim panel. For additional information, refer to TRIM PANEL -- REAR DOOR .
