Removal and Installation

  1. Remove the wheel and tire assembly.
  2. Remove the inner splash shield.
  3. Disconnect the front anti-lock brake sensor electrical connector.

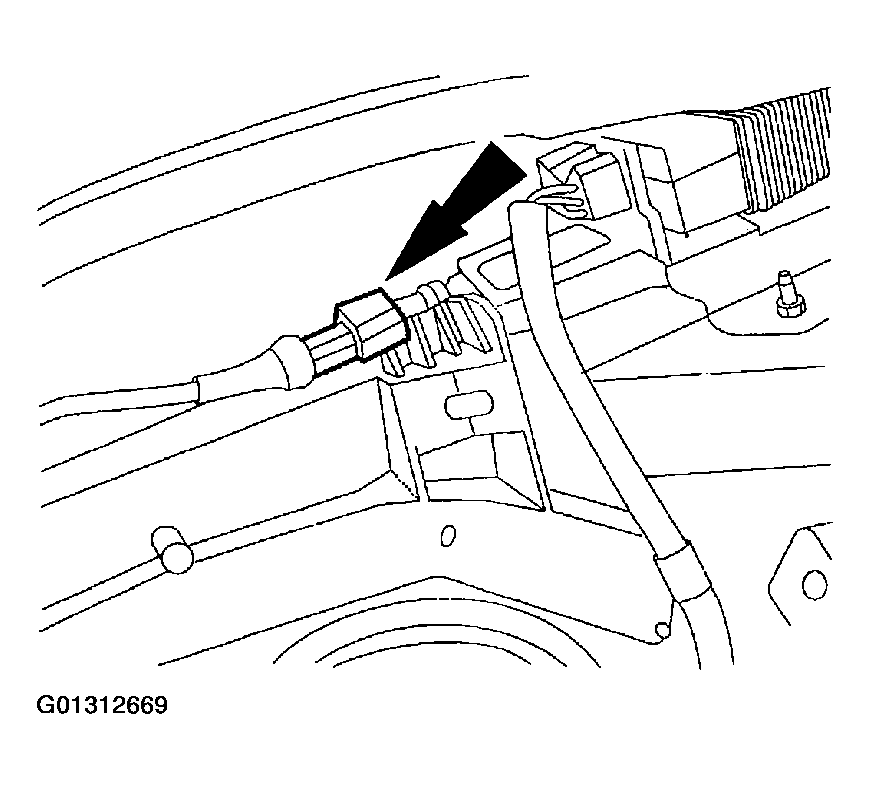

    Fig 1: Disconnecting Front Anti-Lock Brake Sensor Electrical Connector
    G01312669Courtesy of FORD MOTOR CO.
  4. Remove the harness from the clips.

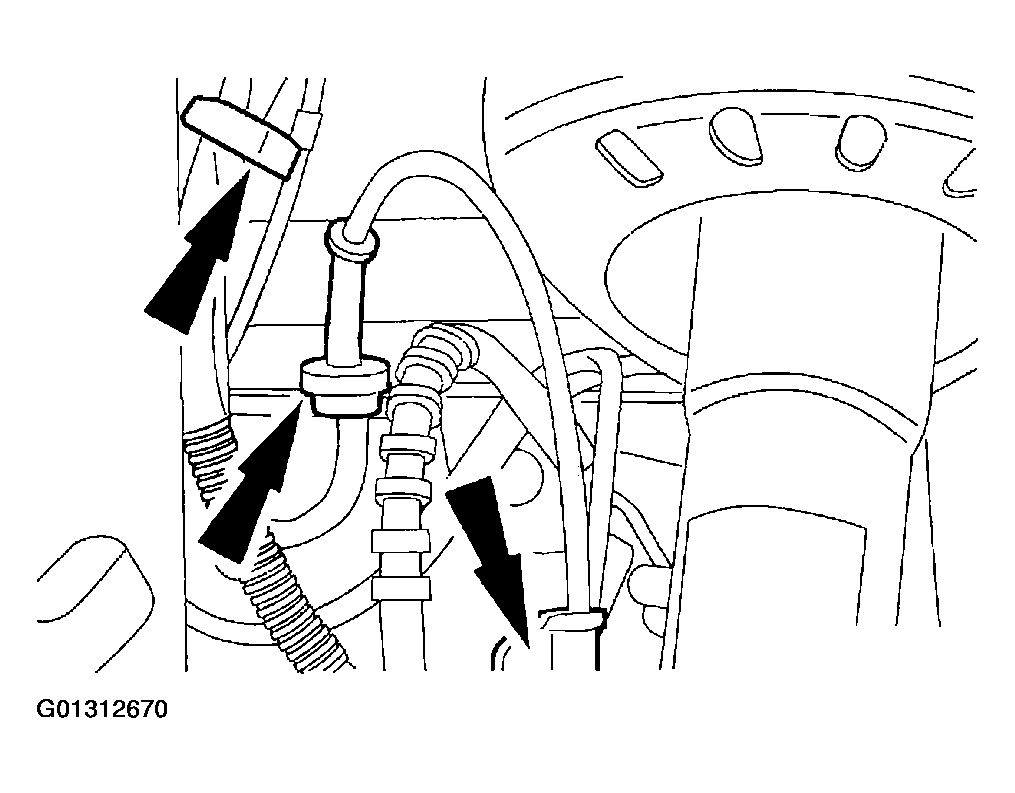

    Fig 2: Removing Front Anti-Lock Brake Harness From Clips
    G01312670Courtesy of FORD MOTOR CO.
  5. Remove the front anti-lock brake sensor.
    1. Remove the bolt.
    2. Remove the front anti-lock brake sensor (2C204).

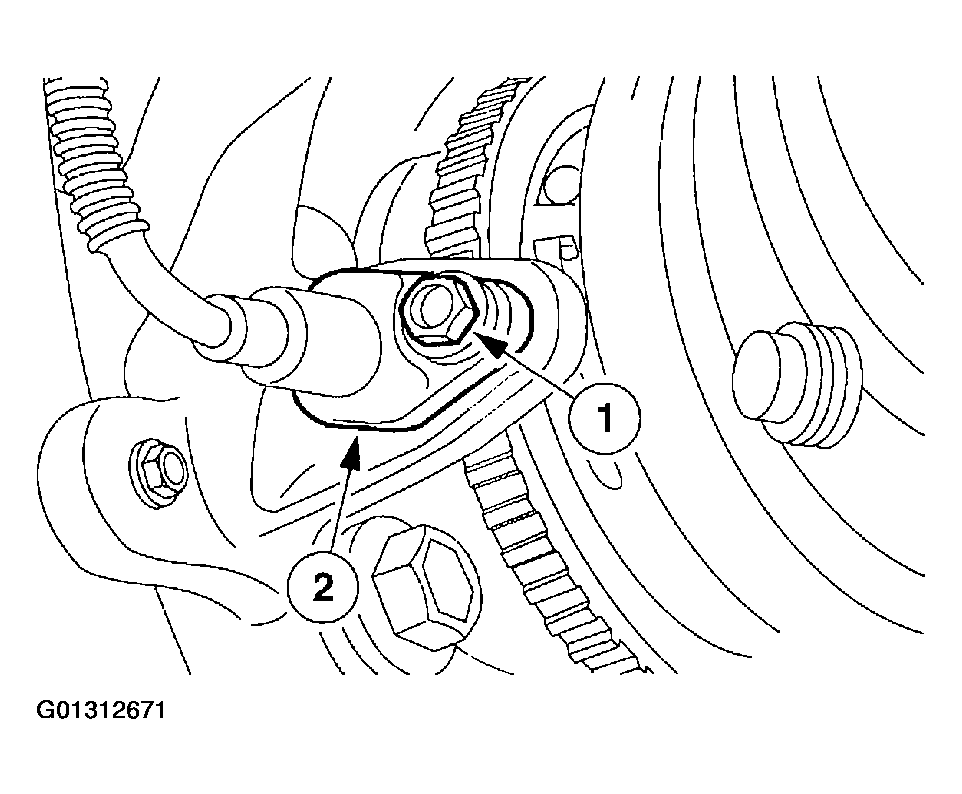

    Fig 3: Removing Front Anti-Lock Brake Sensor
    G01312671Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.

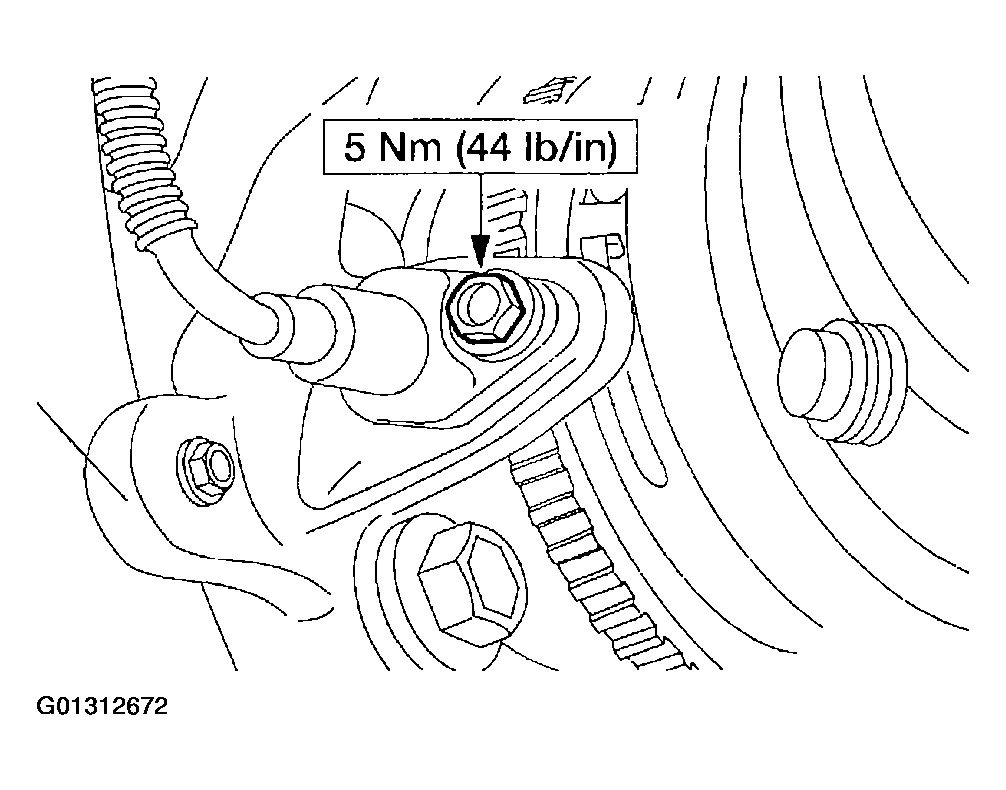

    Fig 4: Installing Front Anti-Lock Brake Sensor
    G01312672Courtesy of FORD MOTOR CO.
