Symptom Chart

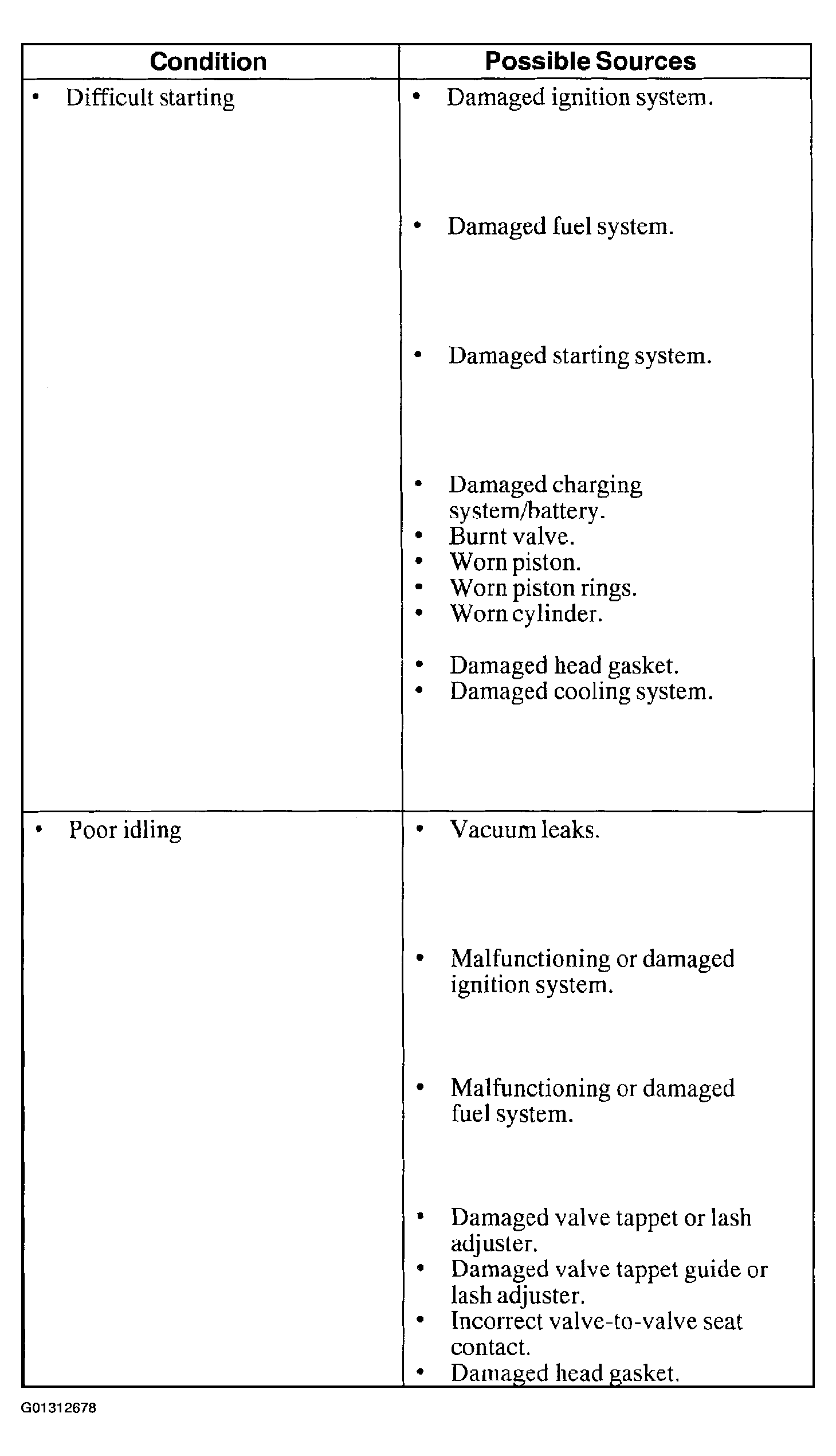

Fig 1: Symptom Chart (1 Of 4)
G01312678Courtesy of FORD MOTOR CO.

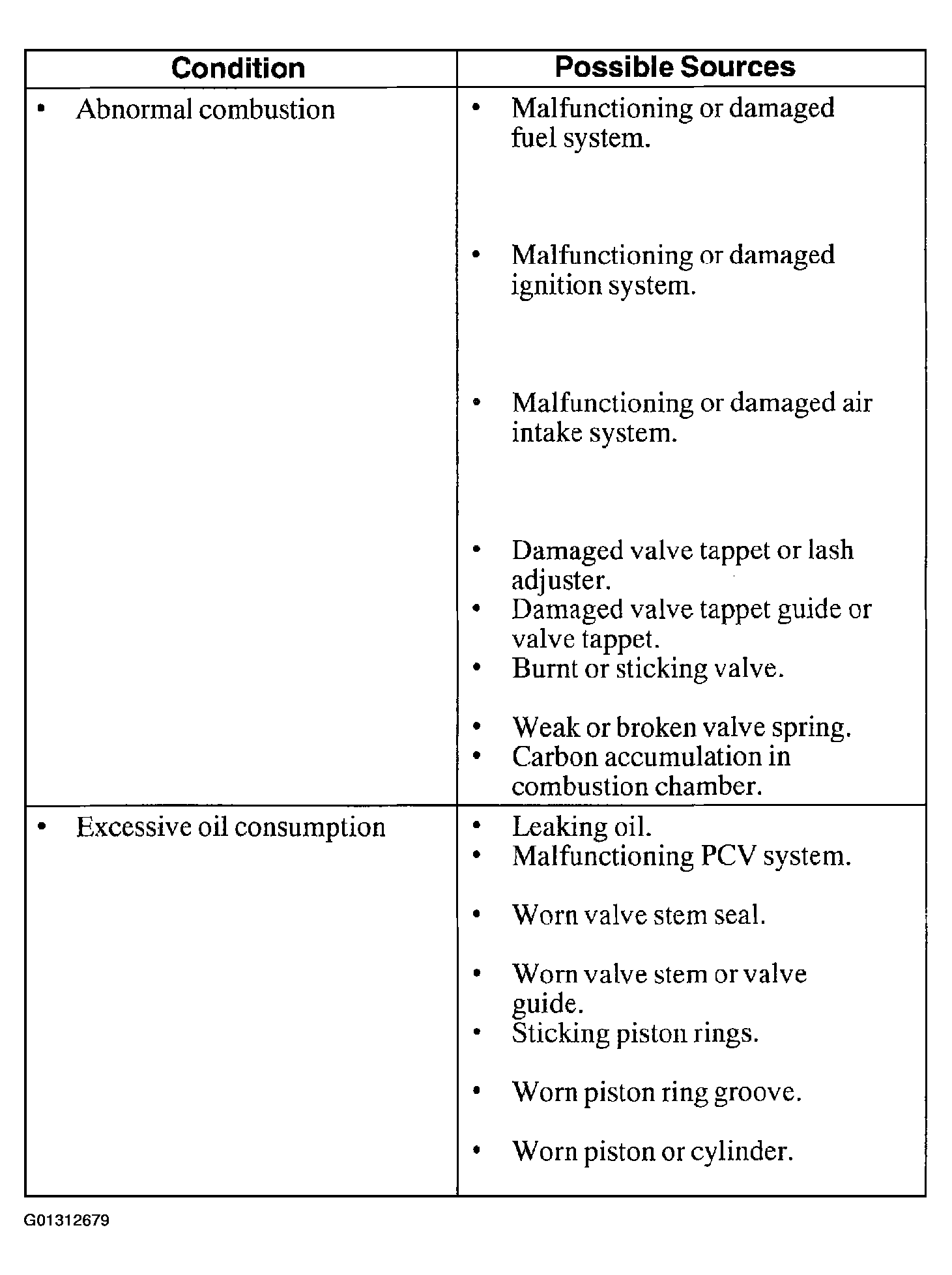

Fig 2: Symptom Chart (2 Of 4)
G01312679Courtesy of FORD MOTOR CO.

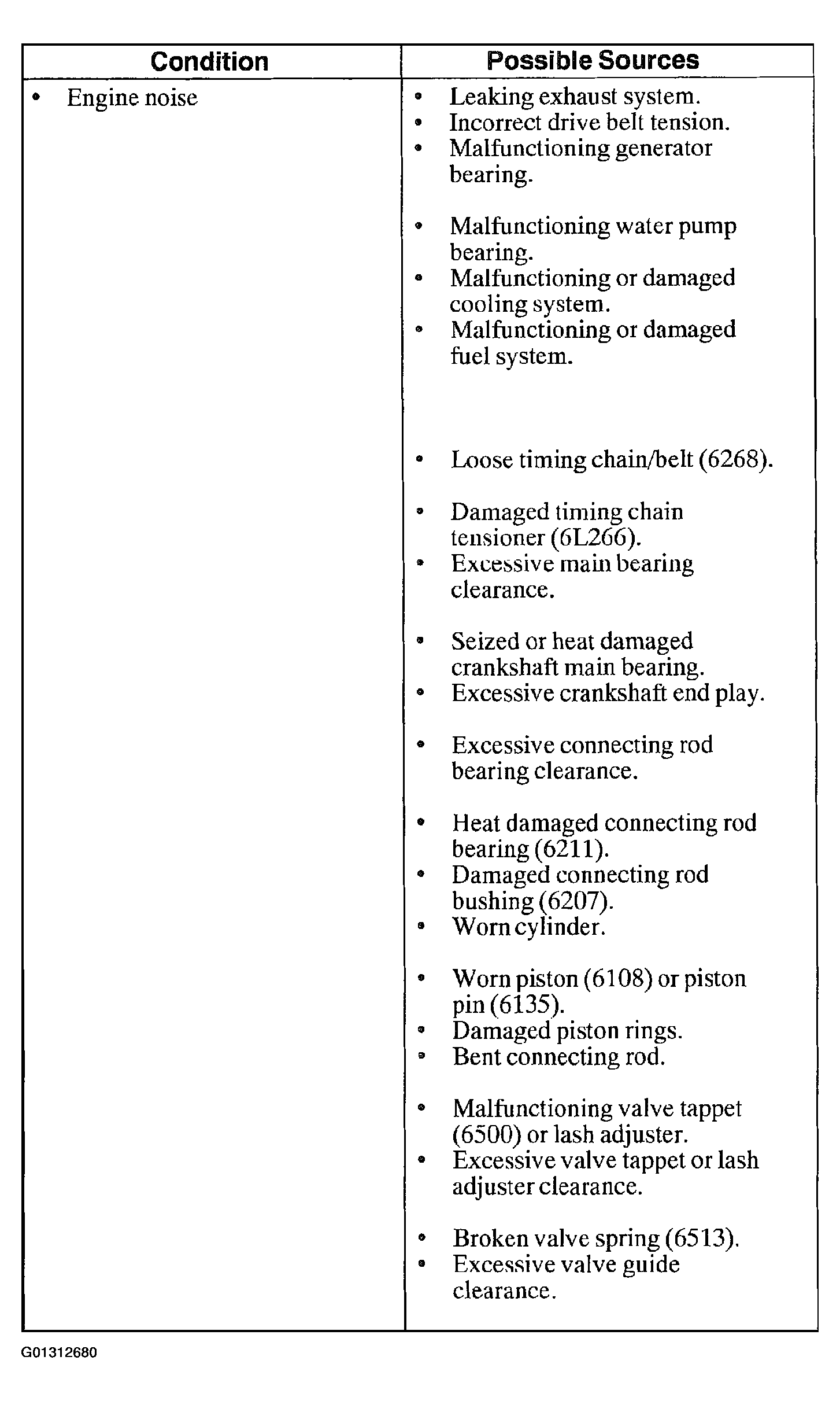

Fig 3: Symptom Chart (3 Of 4)
G01312680Courtesy of FORD MOTOR CO.

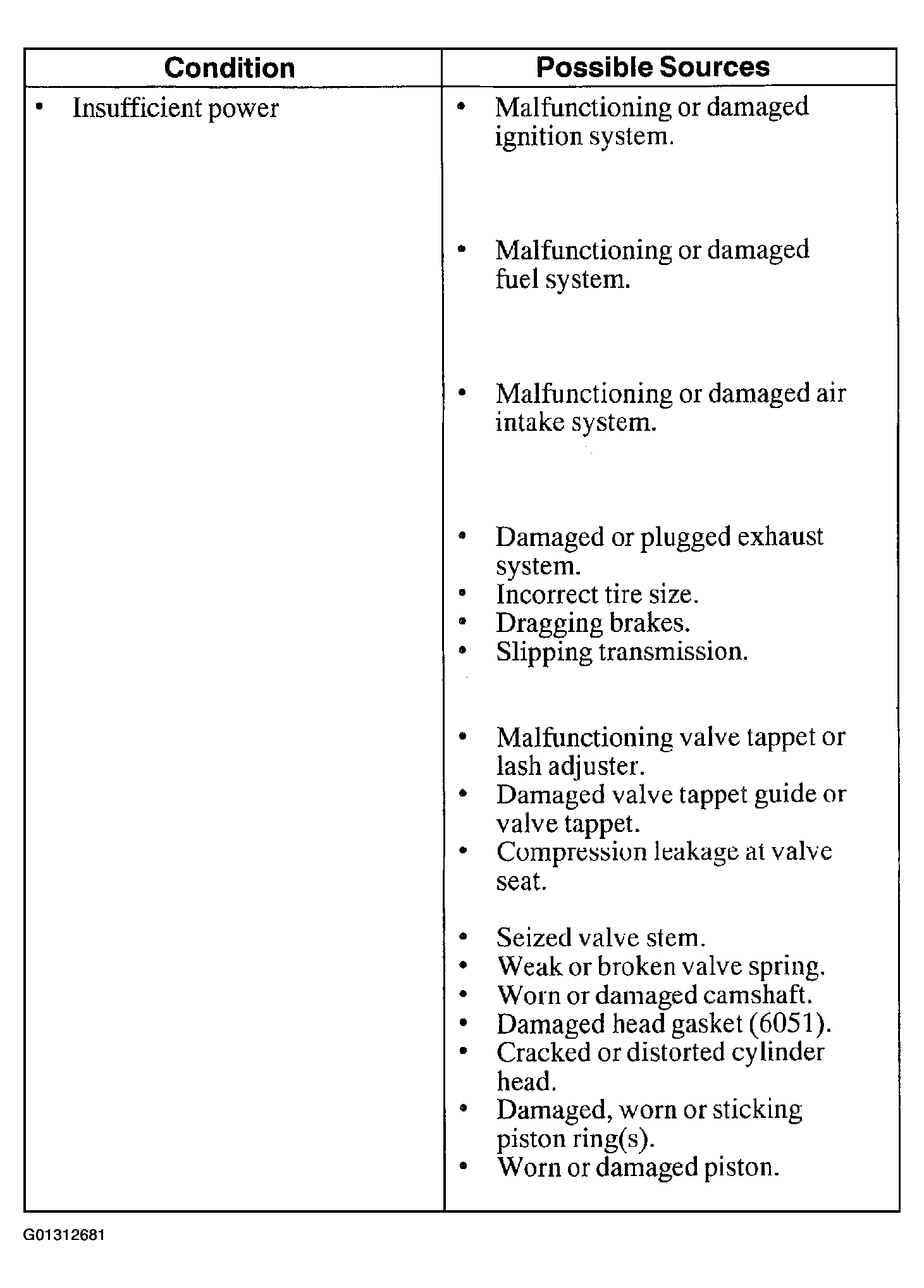

Fig 4: Symptom Chart (4 Of 4)
G01312681Courtesy of FORD MOTOR CO.
