Connecting Rod-Bend

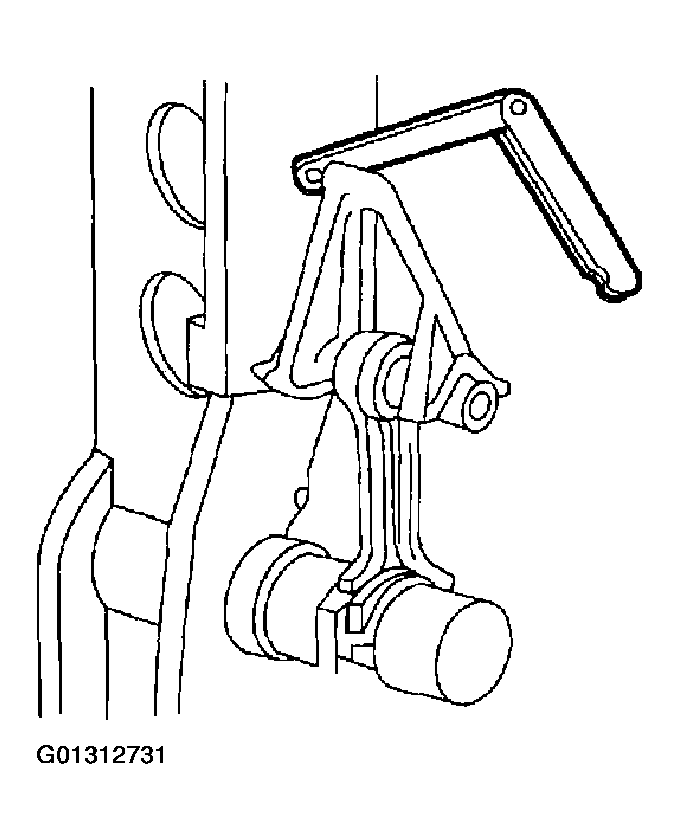

- Measure the connecting rod bend on a suitable alignment fixture. Follow the instructions of the fixture manufacturer. Verify the bend measurement is within specification.
- See SPECIFICATIONS .
- If out of specification, install new components as necessary. See PISTON for the procedure.
