Removal And Installation: Pump: Installation

  1. To install, reverse the removal procedure.
  2. Install a new seal on the high pressure line fitting.
  3. Fill and leak check the system. For additional information, refer to FILL .

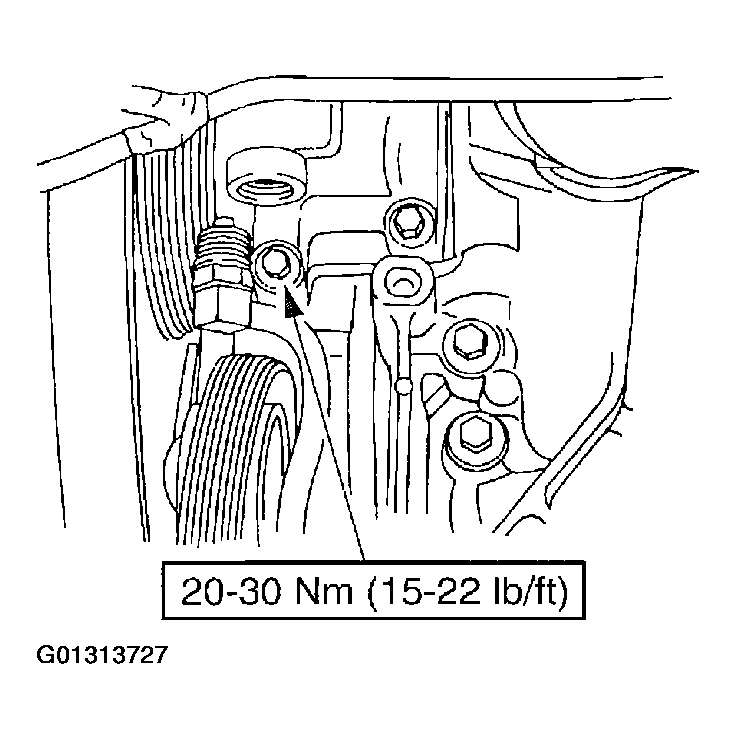

    Fig 1: Installing Power Steering Pump
    G01313727Courtesy of FORD MOTOR CO.

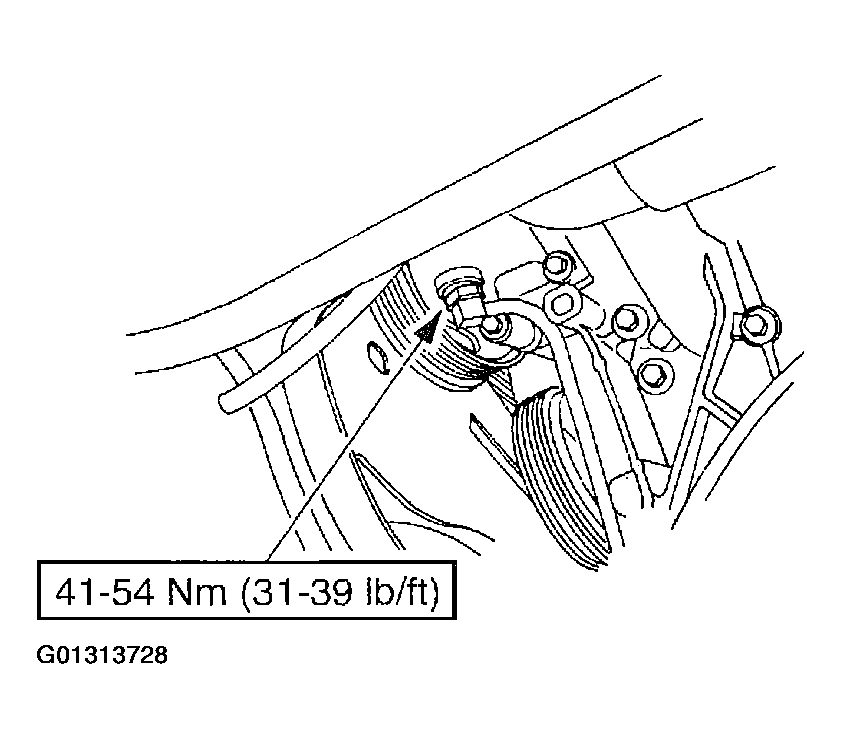

    Fig 2: Installing Power Steering Pressure Pump
    G01313728Courtesy of FORD MOTOR CO.

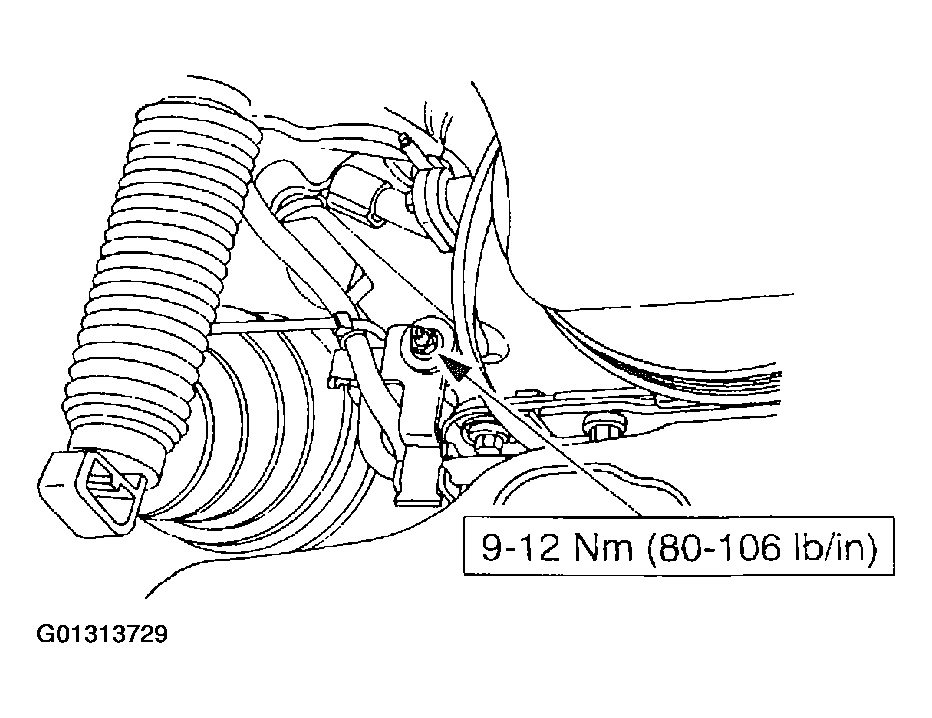

    Fig 3: Installing Routing Bracket
    G01313729Courtesy of FORD MOTOR CO.
