Ignition Switch Lock Cylinder-Functional Lock Cylinder: Removal

Disconnect the battery ground cable.
Remove the ignition switch lock cylinder (11582).
1. Insert the ignition key and turn to the RUN position.
2. Press the ignition switch lock cylinder release pin while pulling out the ignition switch lock cylinder.

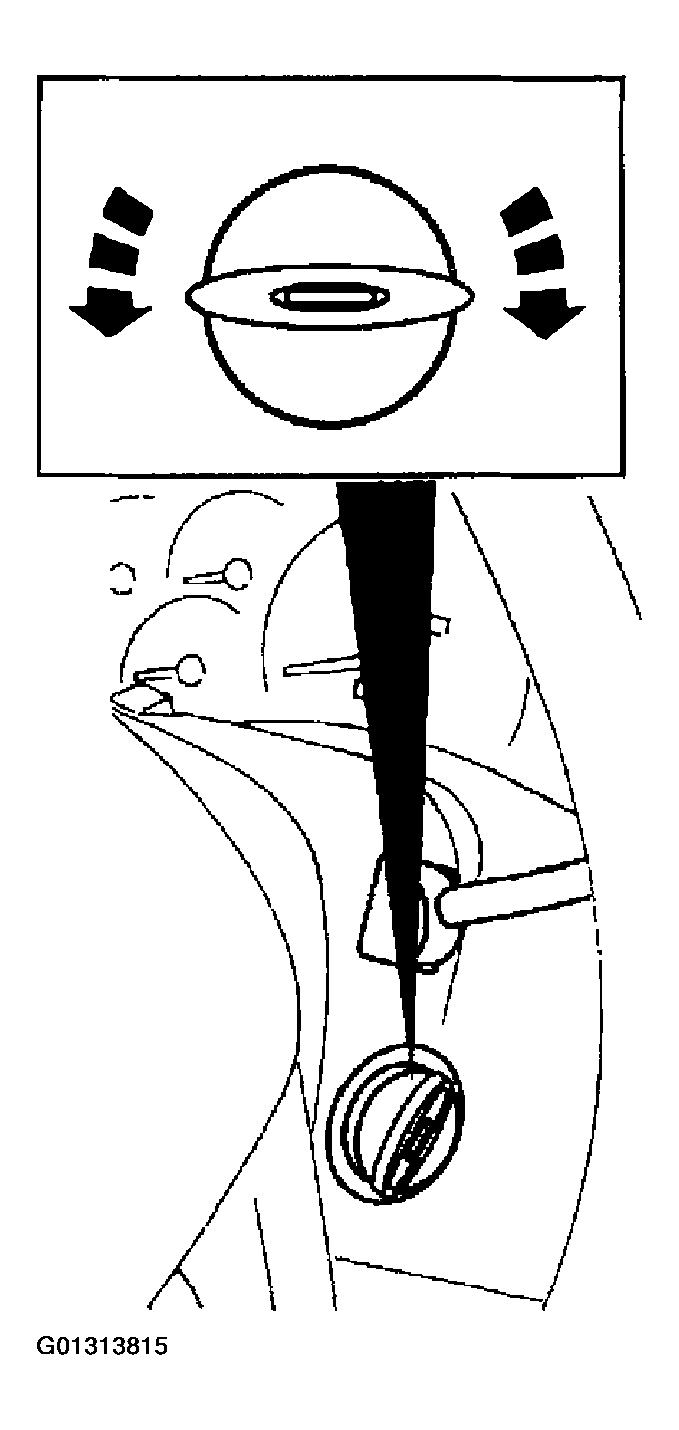

  Fig 1: Removing Ignition Switch Lock Cylinder
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Verify ignition switch lock cylinder operation.

  Fig 2: Verifying Ignition Switch Lock Cylinder Operation
  Courtesy of FORD MOTOR CO.
