Steering Wheel: Installation

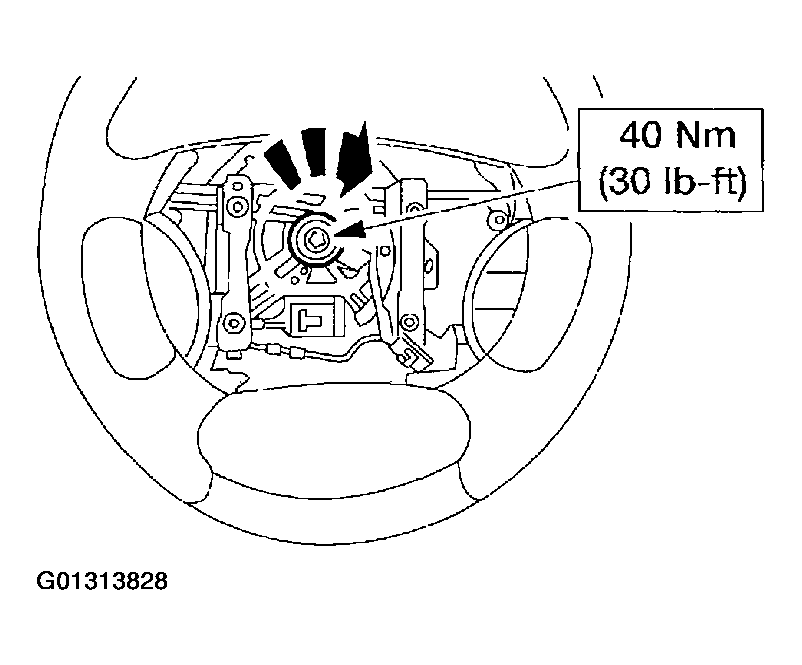

Install the steering wheel and the bolt.

Fig 1: Installing Steering Wheel & Bolt
Courtesy of FORD MOTOR CO.

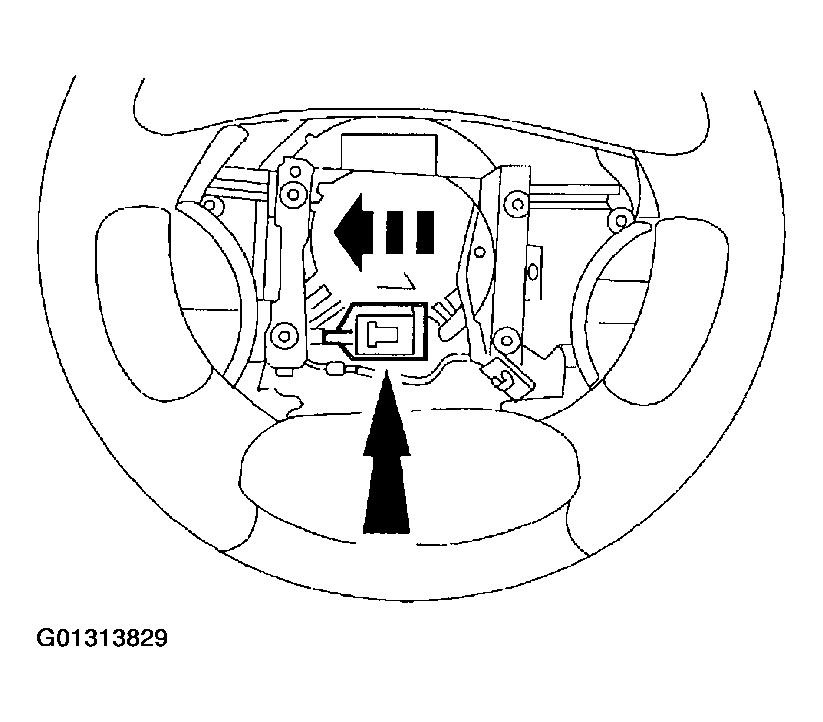

Connect the speed control electrical connector.

Fig 2: Connecting Speed Control Electrical Connector
Courtesy of FORD MOTOR CO.

WARNING: To avoid the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the driver air bag removal and installation procedure.

Install the driver air bag. For additional information, refer to DRIVER-SIDE AIR BAG MODULE .

WARNING: To avoid the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the Supplemental restraint system reactivation procedure.

Reactivate the supplemental restraint system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
