Forward Clutch Cylinder: Notes

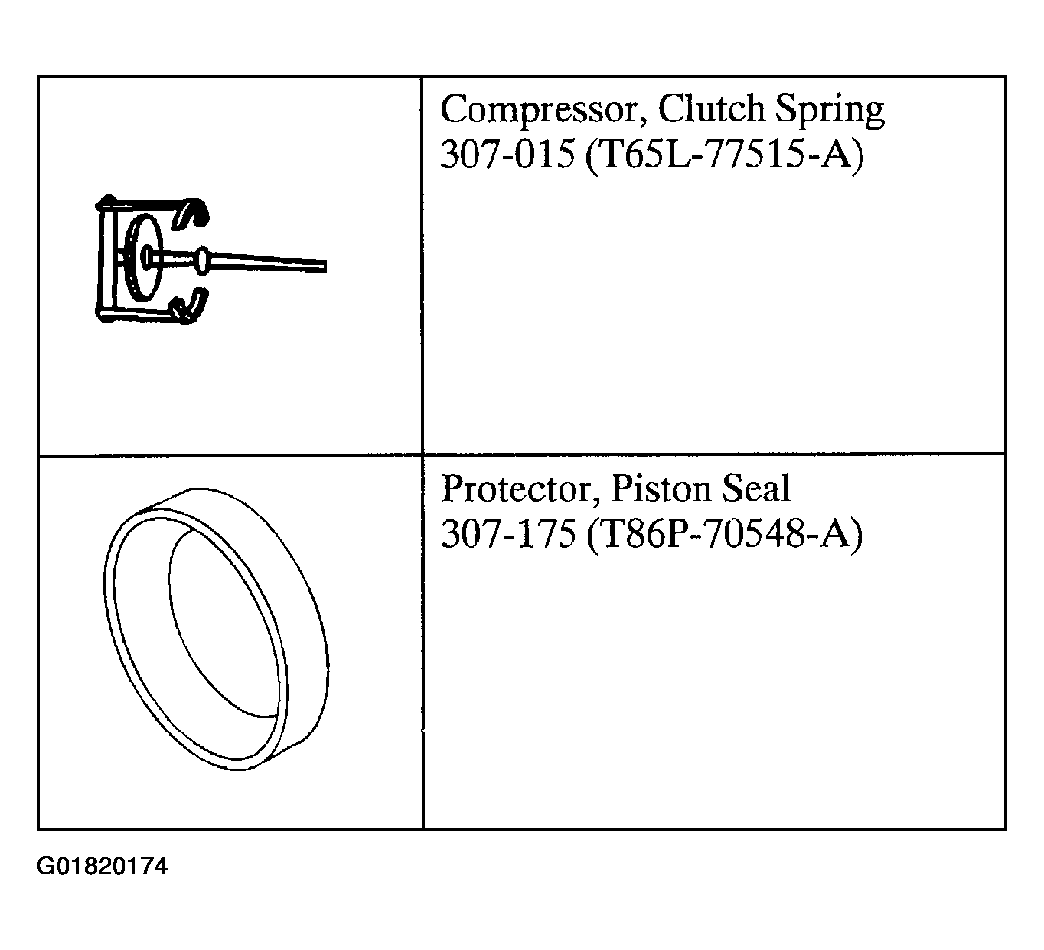

Fig 1: Special Tool(s)
G01820174Courtesy of FORD MOTOR CO.

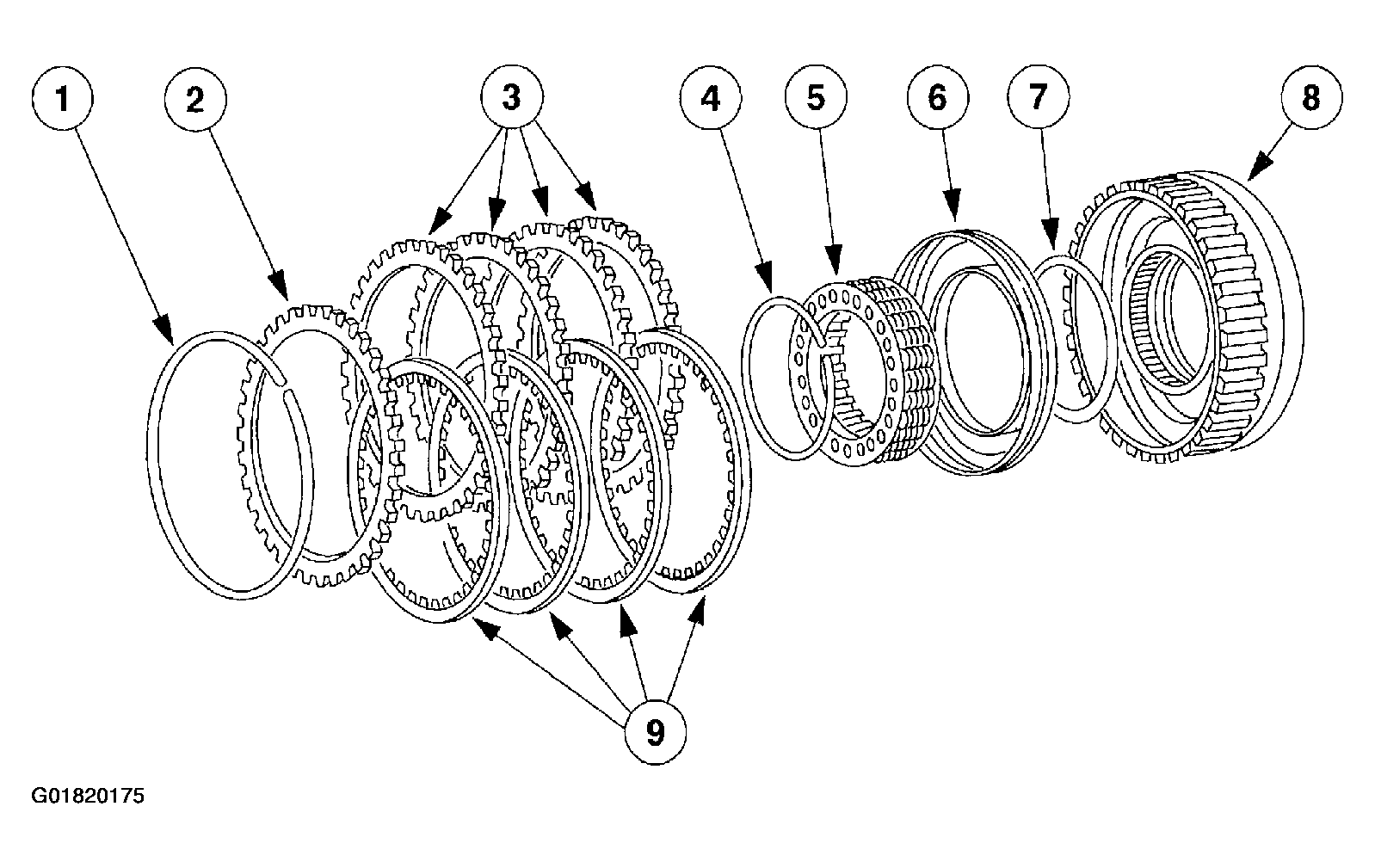

Fig 2: Forward Clutch Cylinder - Component View
G01820175Courtesy of FORD MOTOR CO.

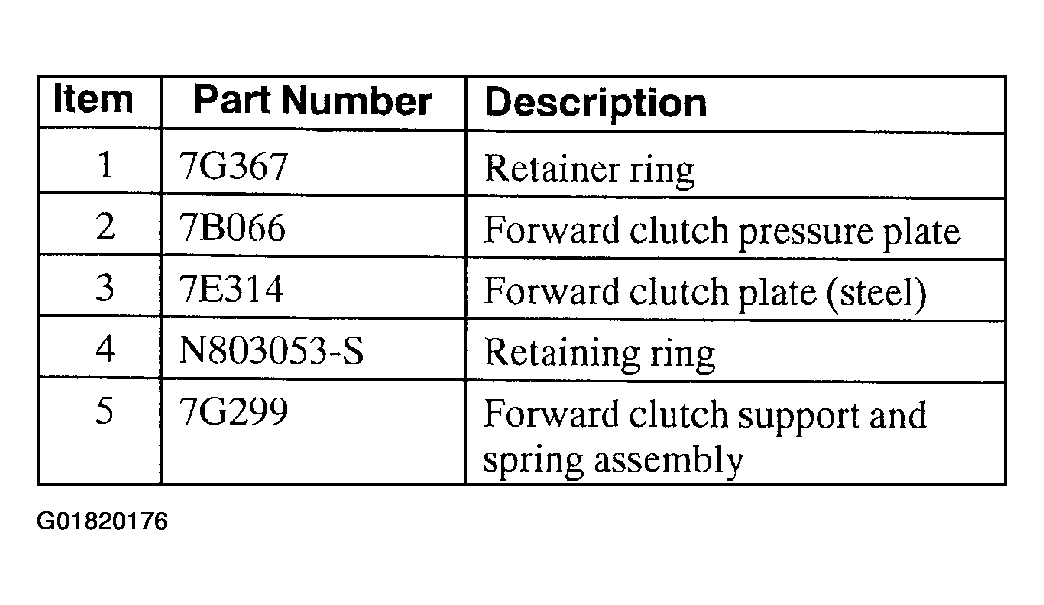

Fig 3: Forward Clutch Cylinder - Component View Legend (Items 1-5)
G01820176Courtesy of FORD MOTOR CO.

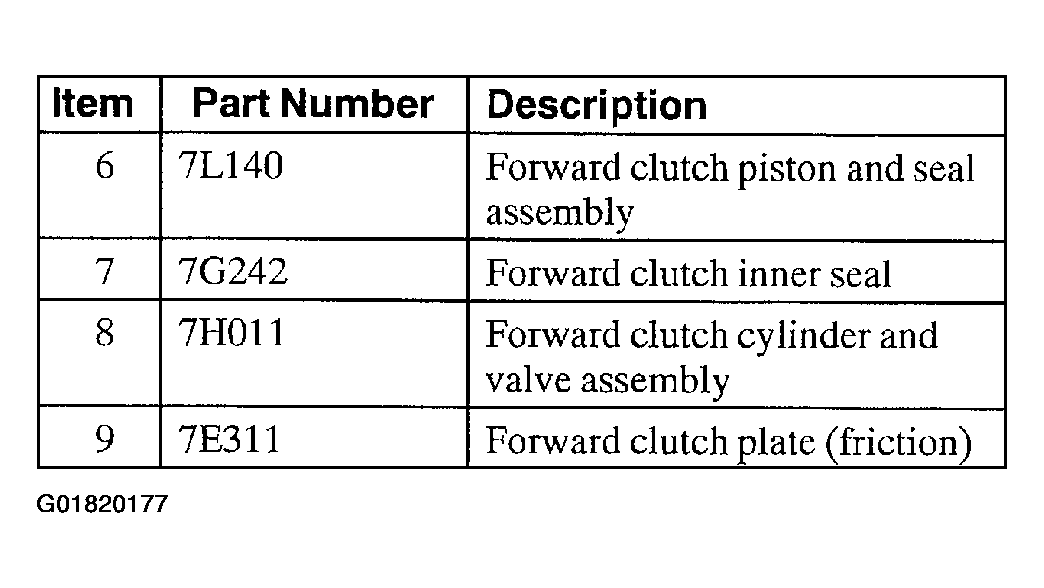

Fig 4: Forward Clutch Cylinder - Component View Legend (Items 6-9)
G01820177Courtesy of FORD MOTOR CO.
