Intermediate Clutch Cylinder: Notes

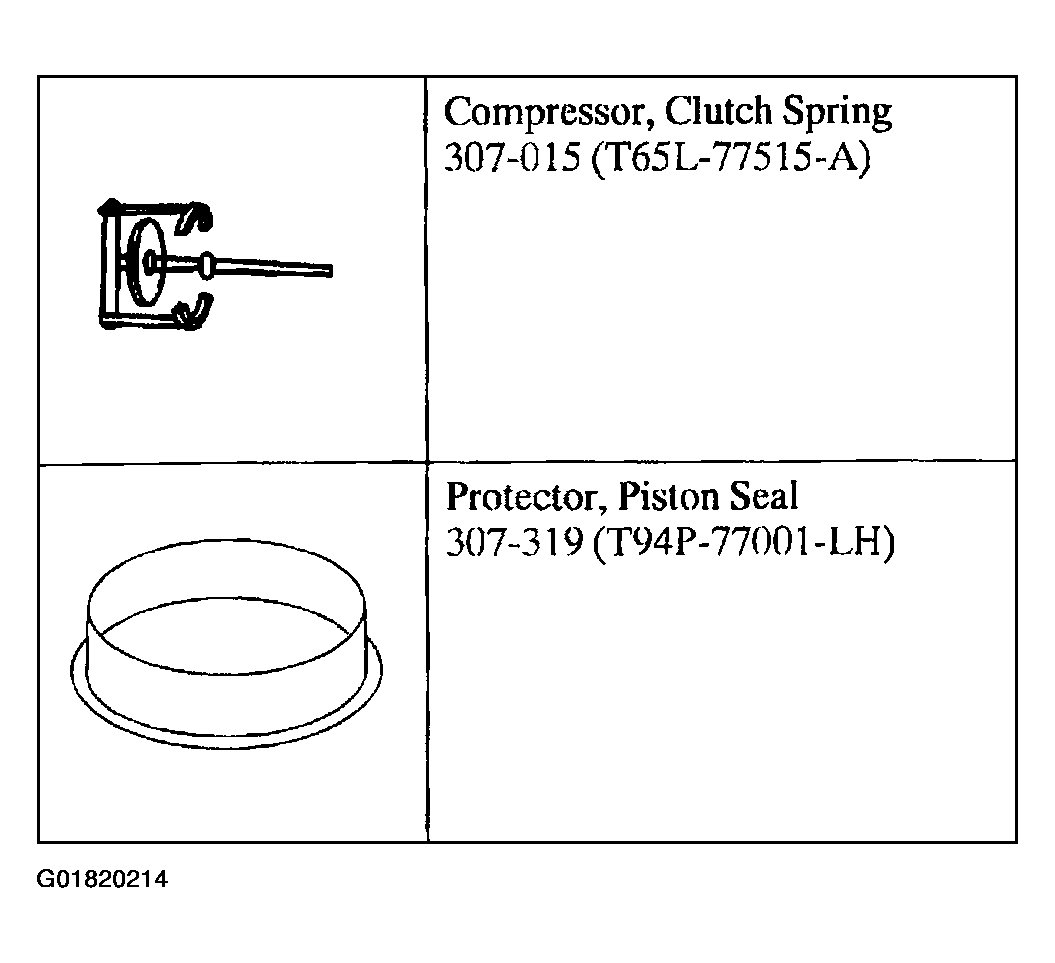

Fig 1: Special Tool(s) (1 Of 2)

Courtesy of FORD MOTOR CO.

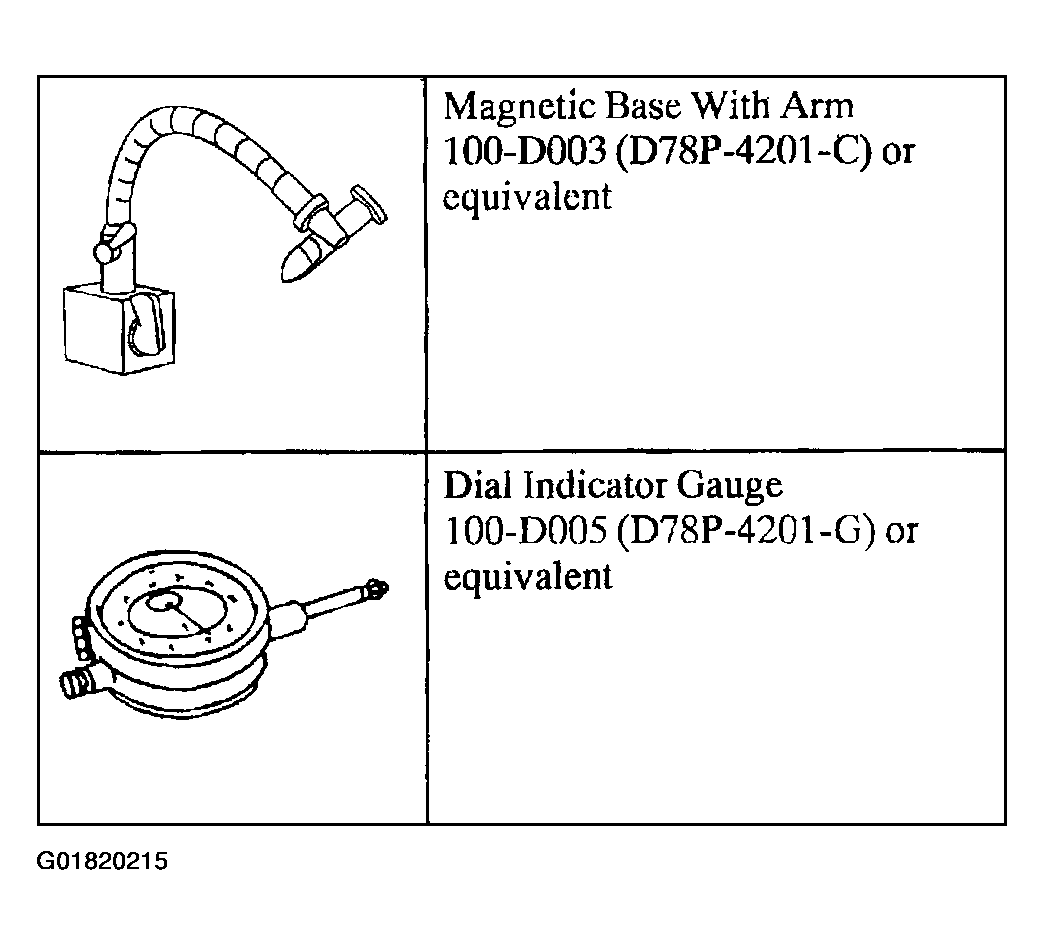

Fig 2: Special Tool(s) (2 Of 2)

Courtesy of FORD MOTOR CO.

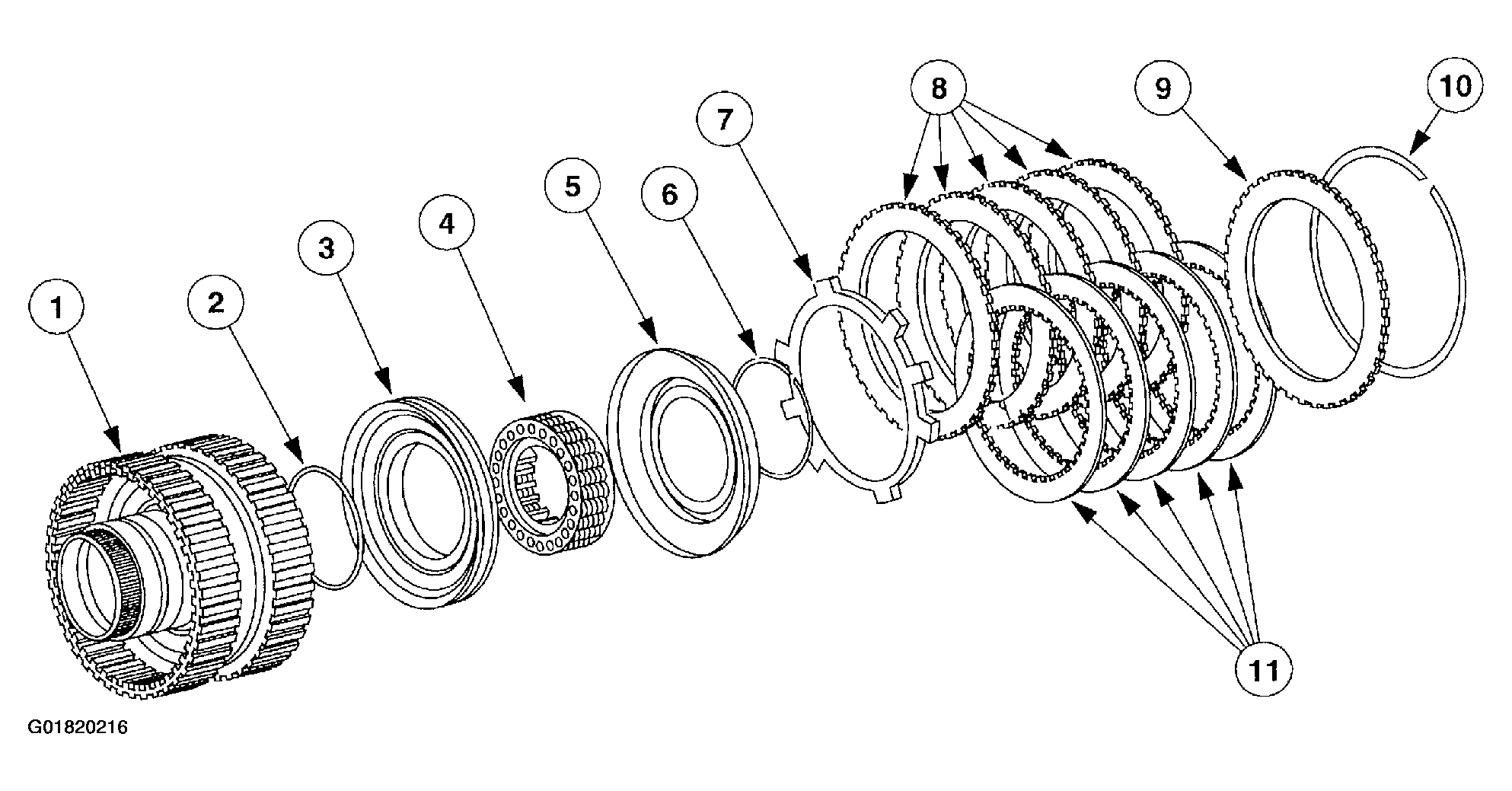

Fig 3: Intermediate Clutch Cylinder - Component View

Courtesy of FORD MOTOR CO.

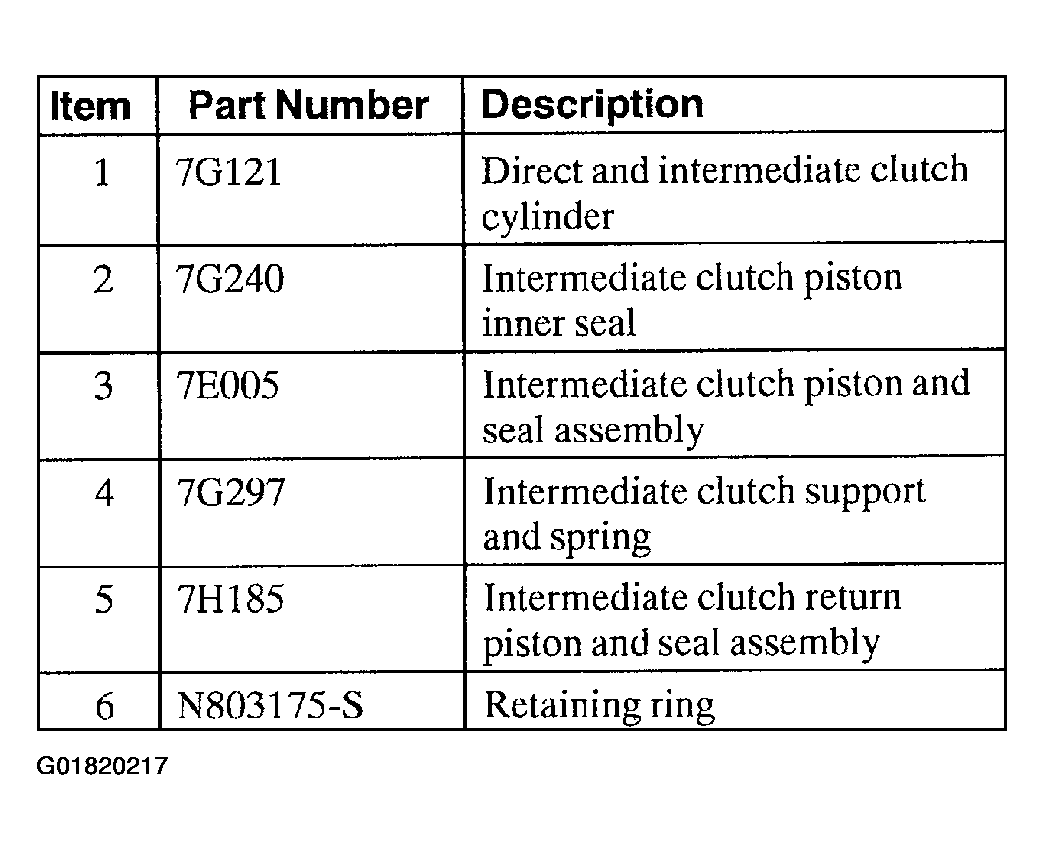

Fig 4: Intermediate Clutch Cylinder - Component View Legend (Items 1-6)

Courtesy of FORD MOTOR CO.

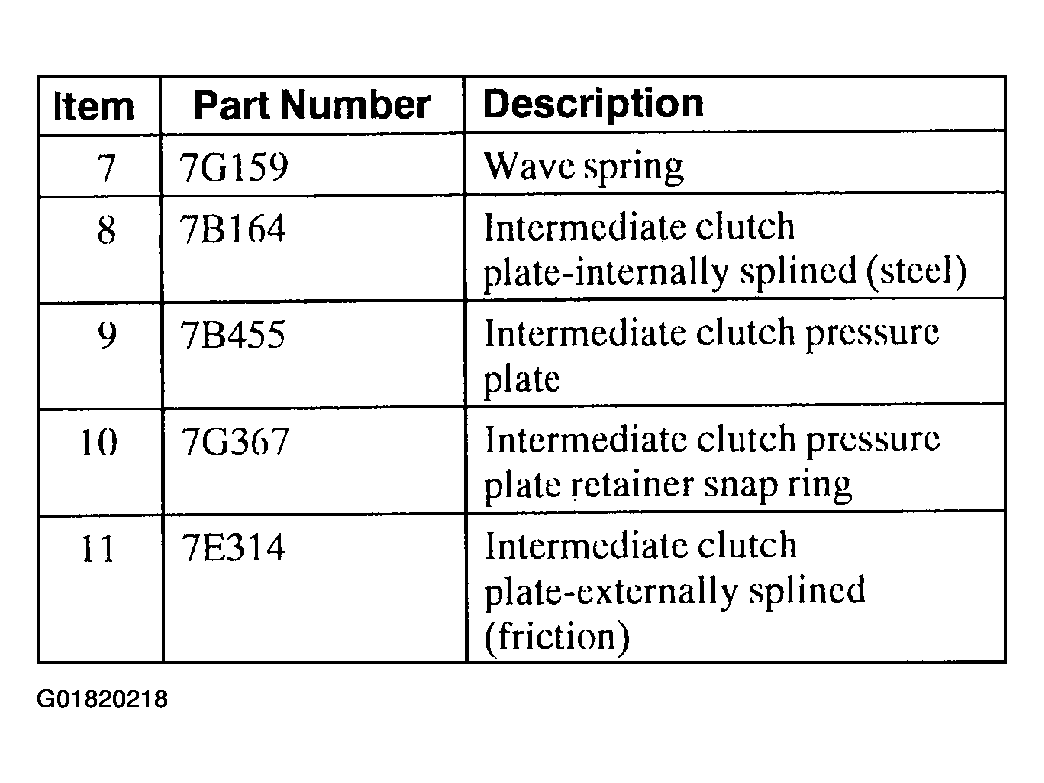

Fig 5: Intermediate Clutch Cylinder - Component View Legend (Items 7-11)

Courtesy of FORD MOTOR CO.
