Pump Assembly: Notes

Fig 1: Special Tool(s)

Courtesy of FORD MOTOR CO.

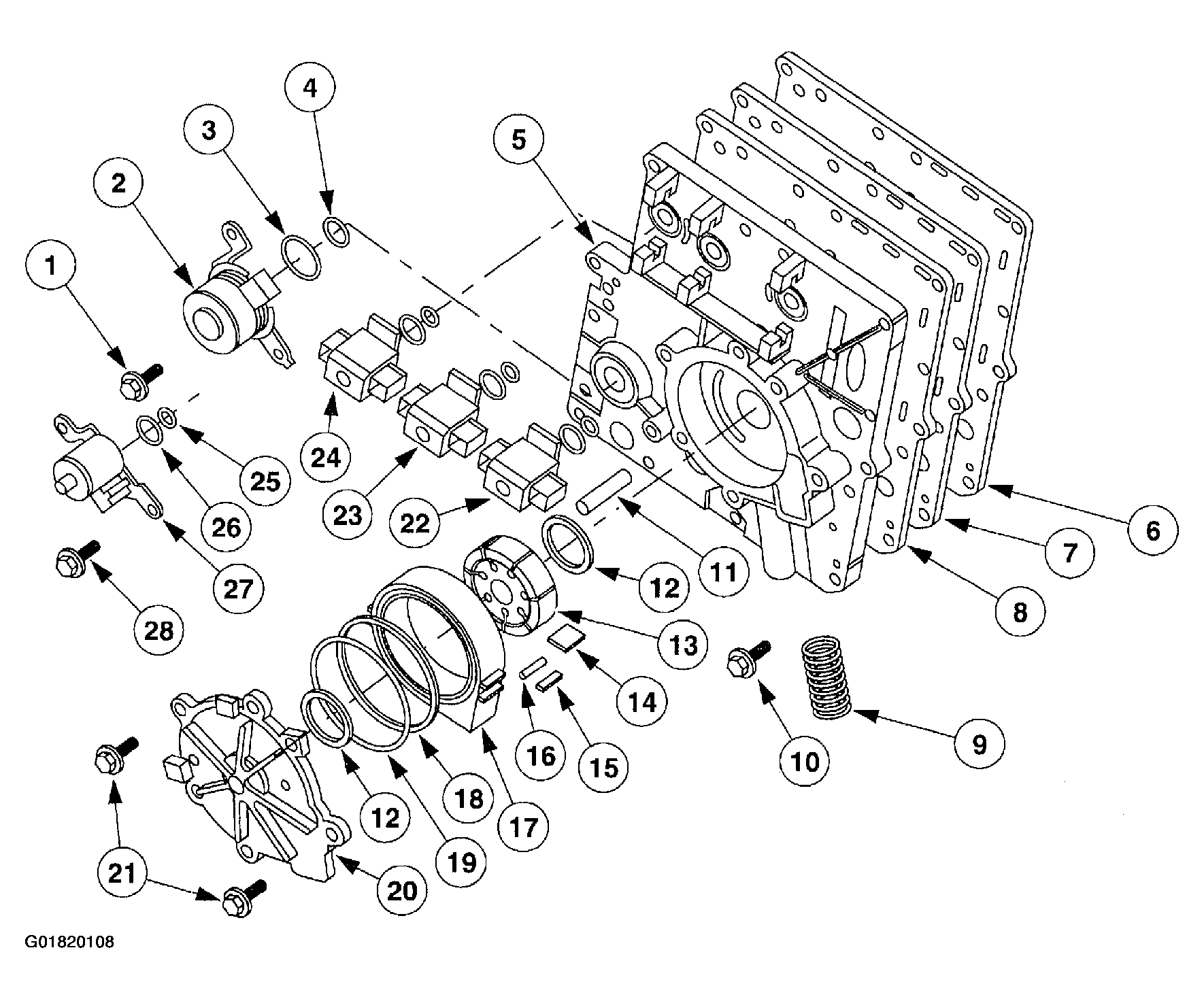

Fig 2: Pump Assembly - Component View

Courtesy of FORD MOTOR CO.

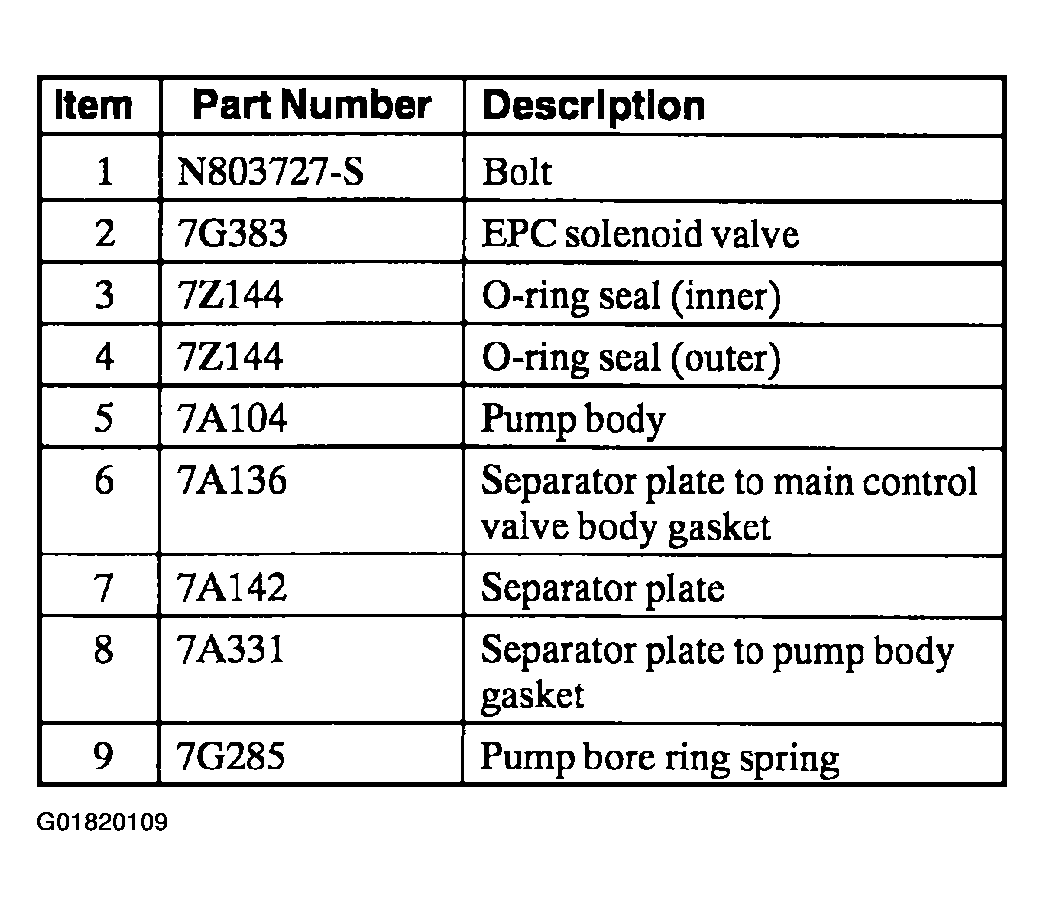

Fig 3: Pump Assembly - Component View Legend (Items 1-9)

Courtesy of FORD MOTOR CO.

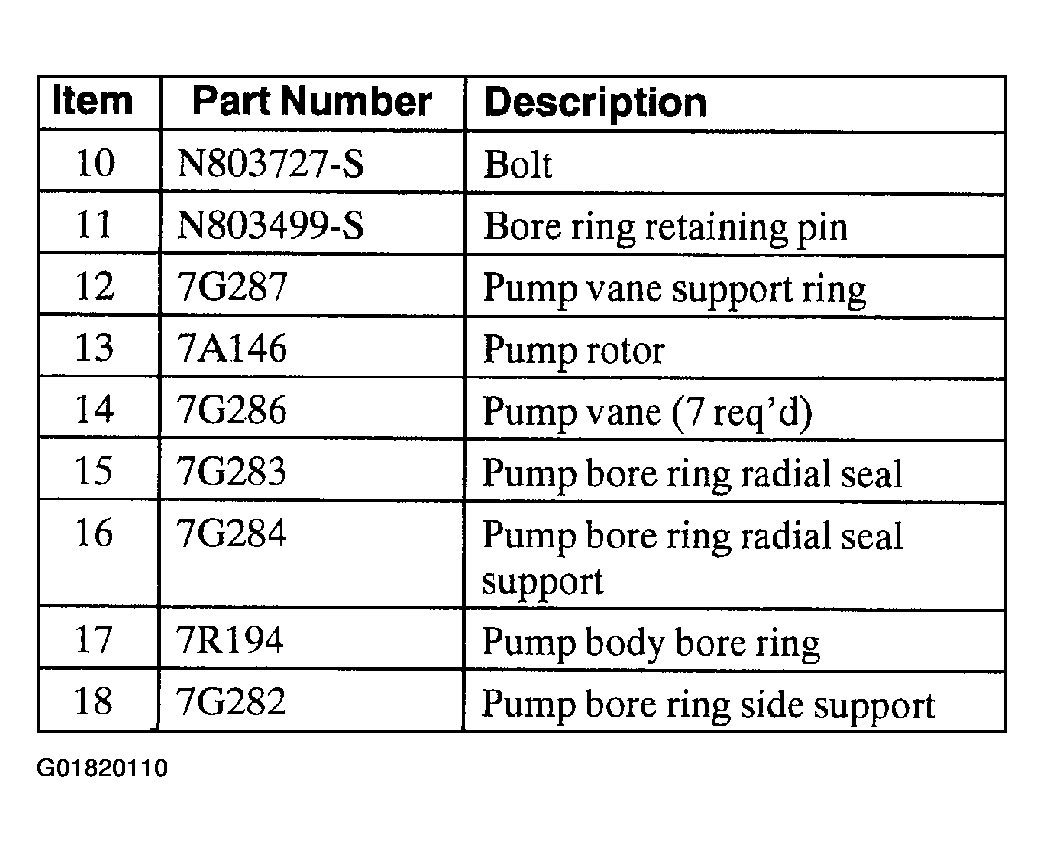

Fig 4: Pump Assembly - Component View Legend (Items 10-18)

Courtesy of FORD MOTOR CO.

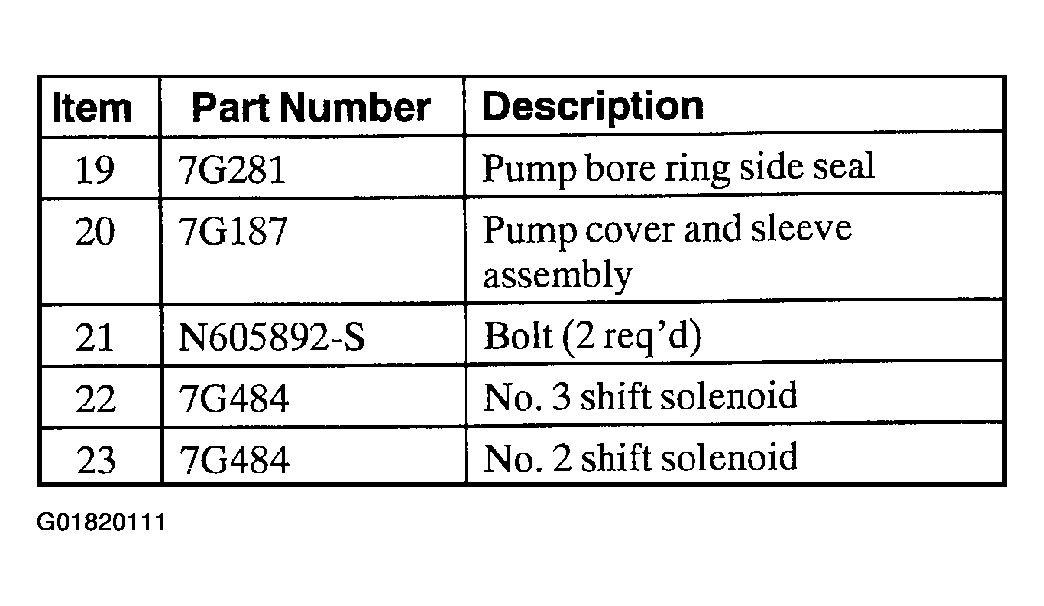

Fig 5: Pump Assembly - Component View Legend (Items 19-23)

Courtesy of FORD MOTOR CO.

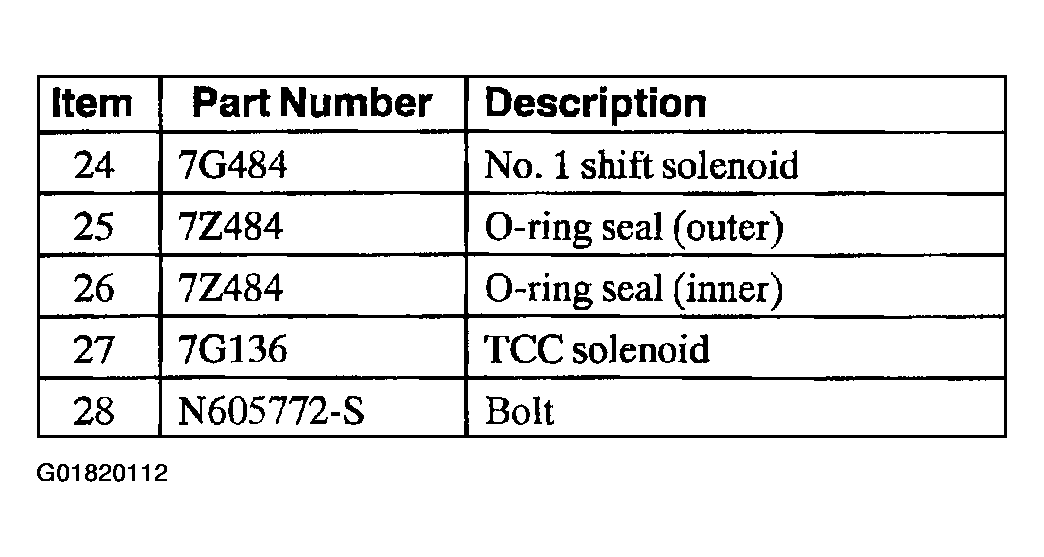

Fig 6: Pump Assembly - Component View Legend (Items 24-28)

Courtesy of FORD MOTOR CO.
