Pinpoint Test J: The Traction Control Switch Indicator Is Never/Always On

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

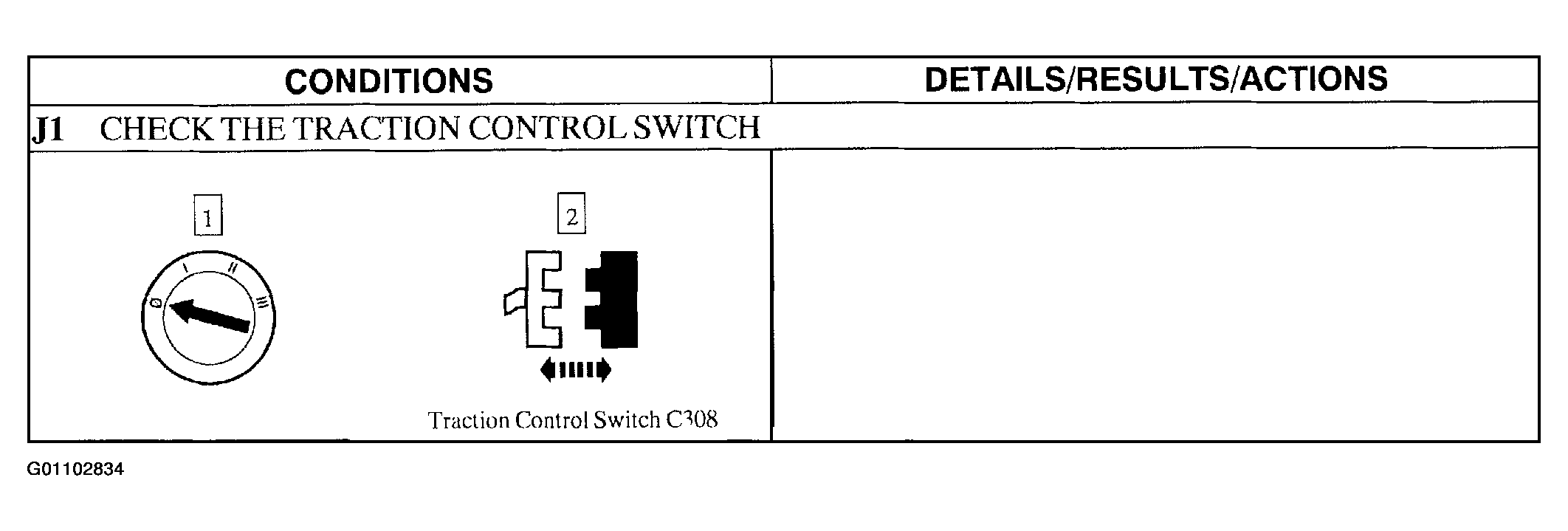

Fig 1: Pinpoint Test J (Step J1)

Courtesy of FORD MOTOR CO.

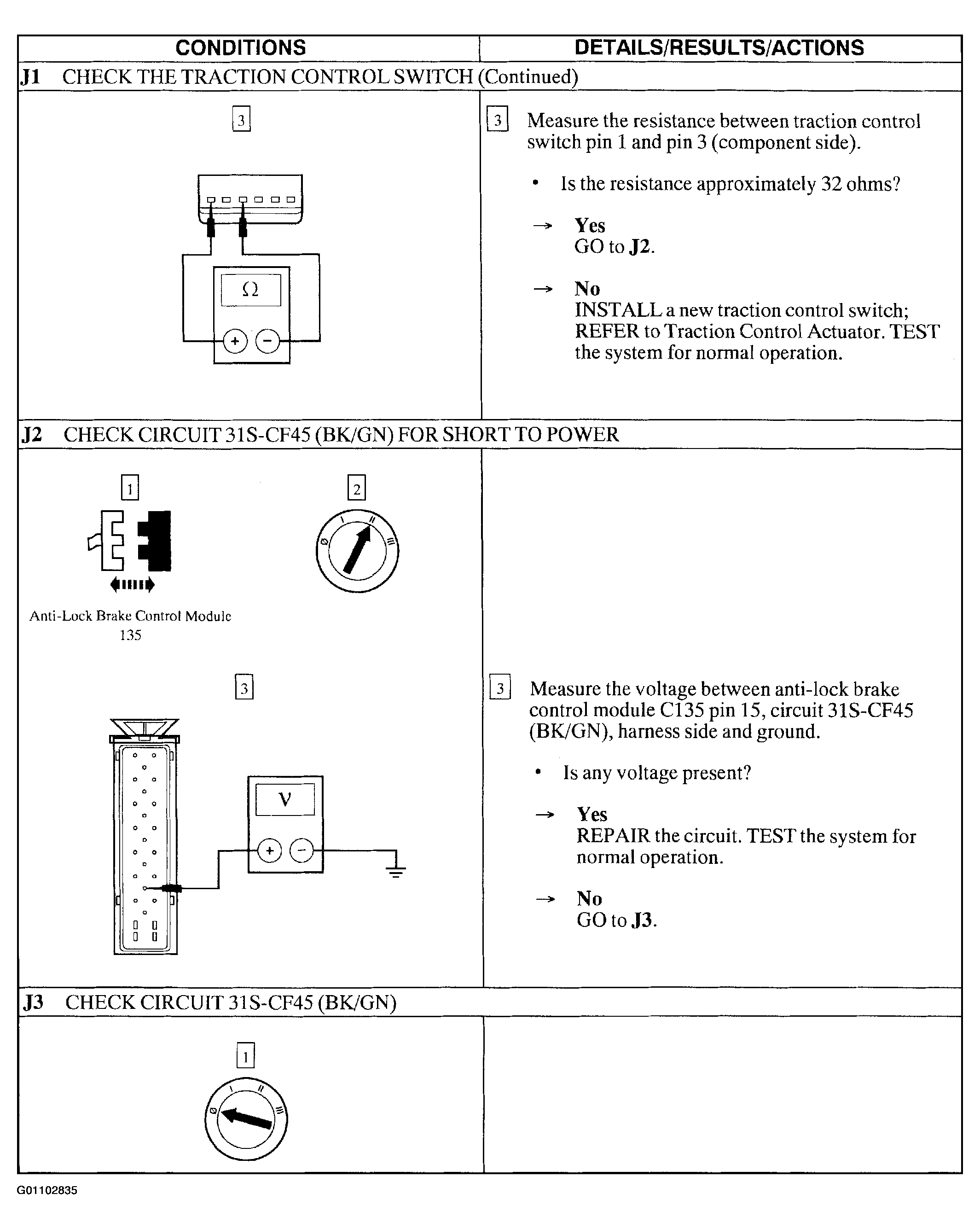

Fig 2: Pinpoint Test J (Steps J1 Cont. - J3)

Courtesy of FORD MOTOR CO.

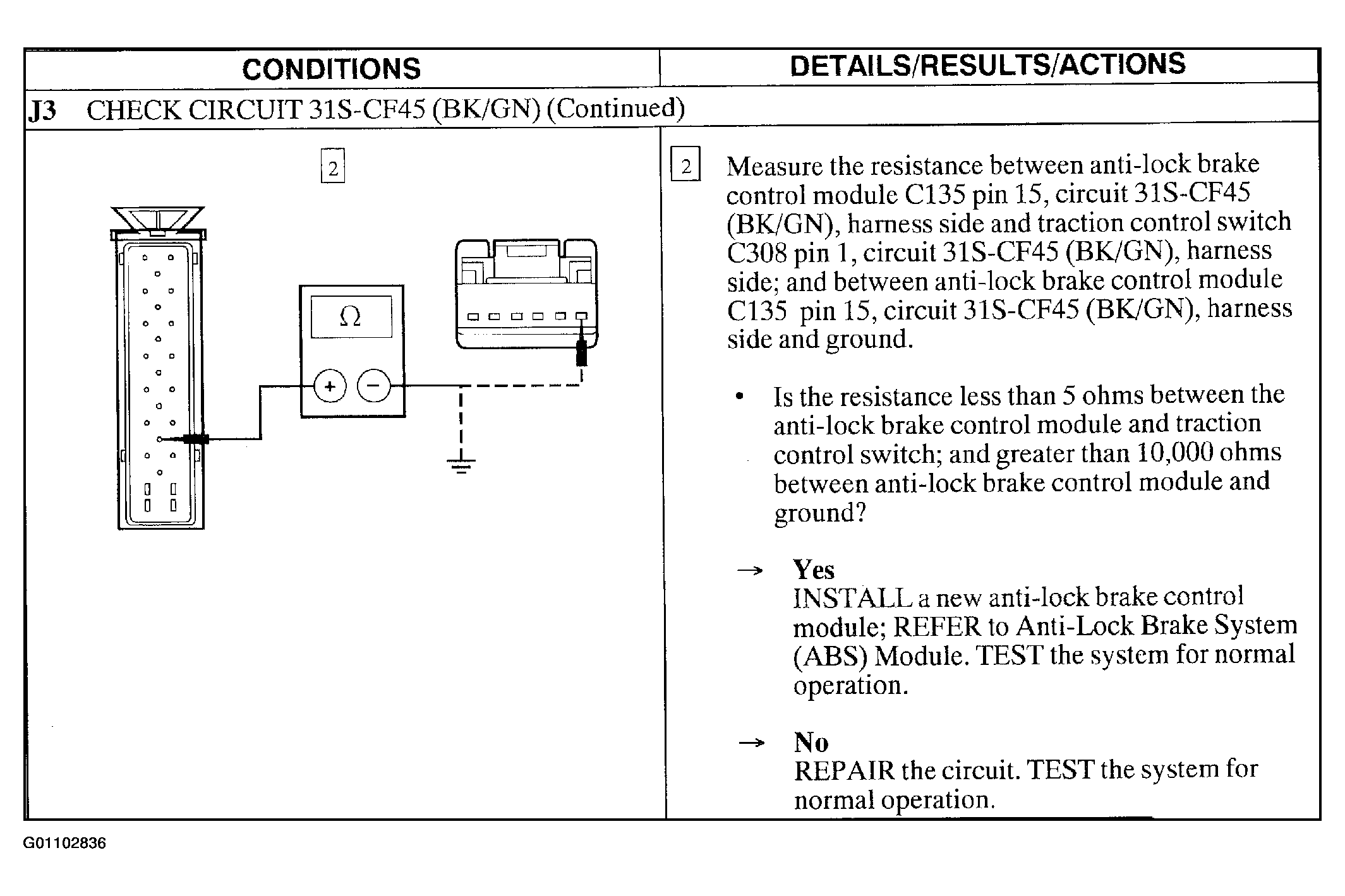

Fig 3: Pinpoint Test J (Step J3 Cont.)

Courtesy of FORD MOTOR CO.
