Fill Procedure

  1. Raise and support the vehicle. For additional information, see JACKING & HOISTING .
  2. Remove the fill plug.
    Fig 1: Removing Fill Plug
    G01104009Courtesy of FORD MOTOR CO.
  3. Fill the transmission to 0.5 mm (0.02 in) below the lower edge of the fill plug bore.
    Fig 2: Filling Transmission
    G01104010Courtesy of FORD MOTOR CO.
  4. Install the fill plug.

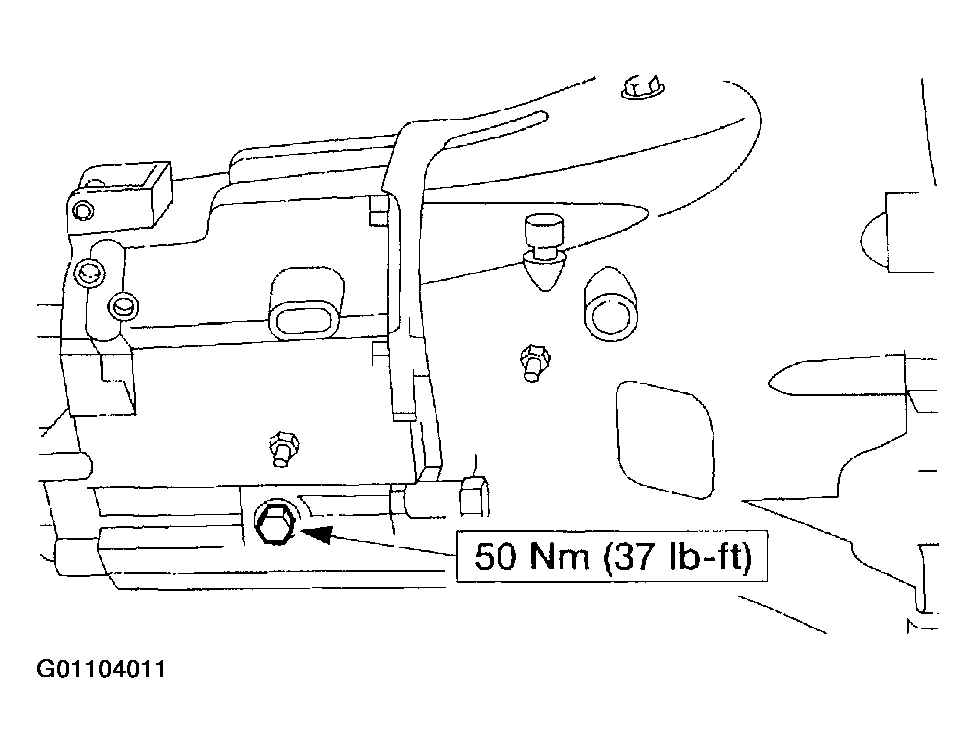

    Fig 3: Installing Fill Plug
    G01104011Courtesy of FORD MOTOR CO.
  5. Lower the vehicle.
