Pinpoint Test I: The Remote Emergency Satellite Cellular Unit (RESCU) Module Does Not Respond To The Diagnostic Tool

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

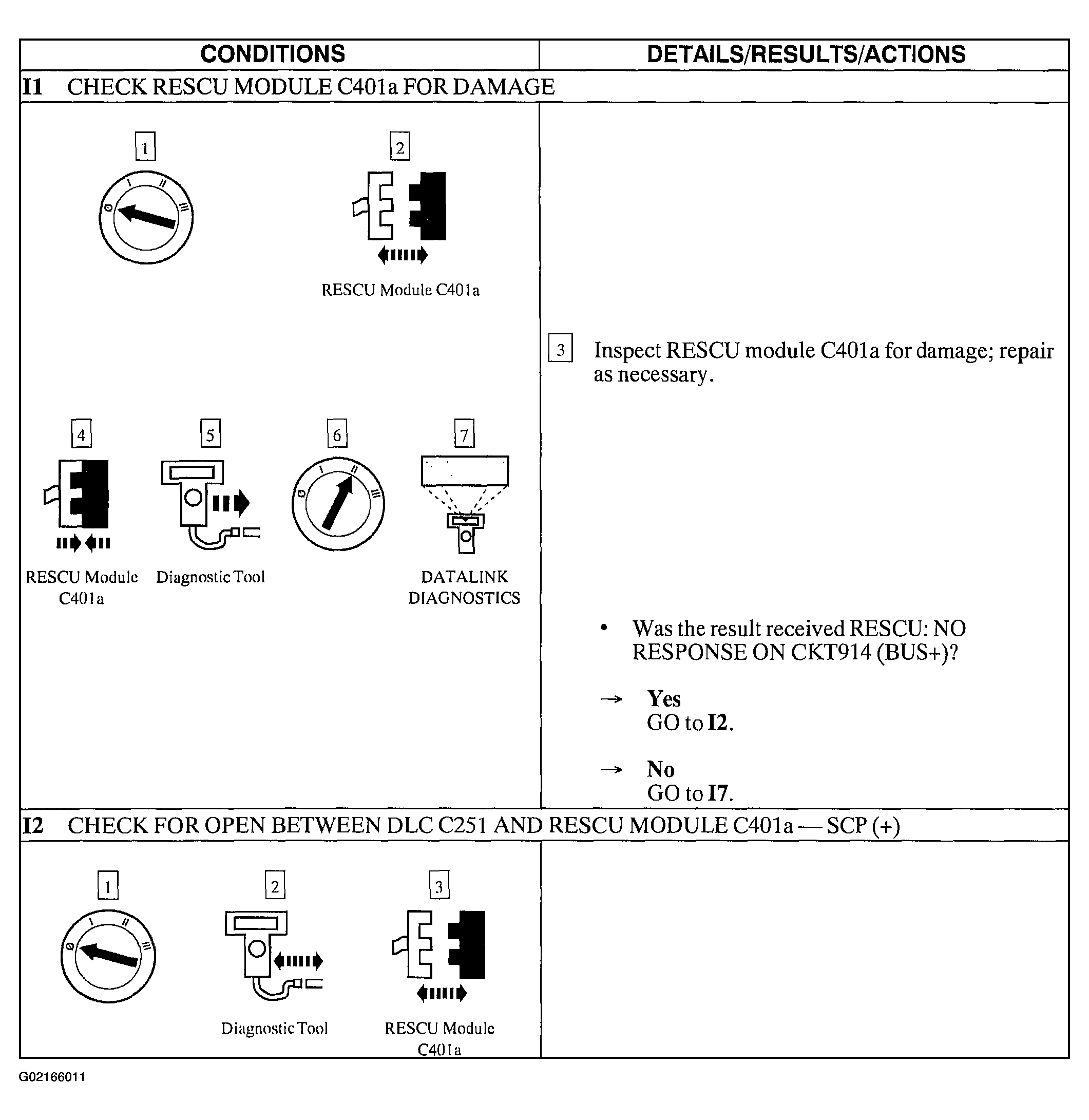

Fig 1: Pinpoint Test I: The Remote Emergency Satellite Cellular Unit (RESCU) Module Does Not Respond To The Diagnostic Tool (Steps I1 & I2)

Courtesy of FORD MOTOR CO.

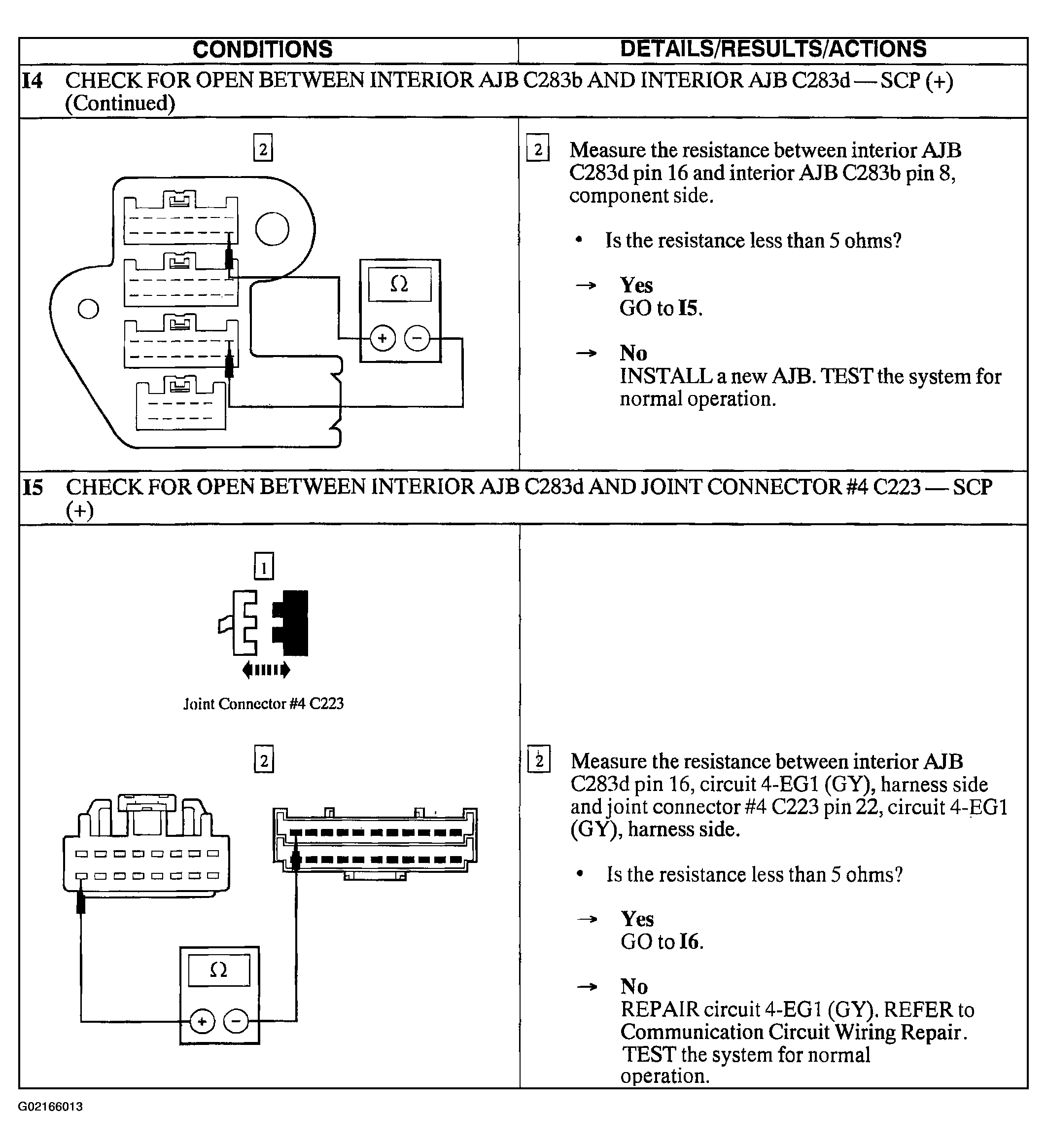

Fig 2: Pinpoint Test I: The Remote Emergency Satellite Cellular Unit (RESCU) Module Does Not Respond To The Diagnostic Tool (Steps I2 Cont.To I4)

Courtesy of FORD MOTOR CO.

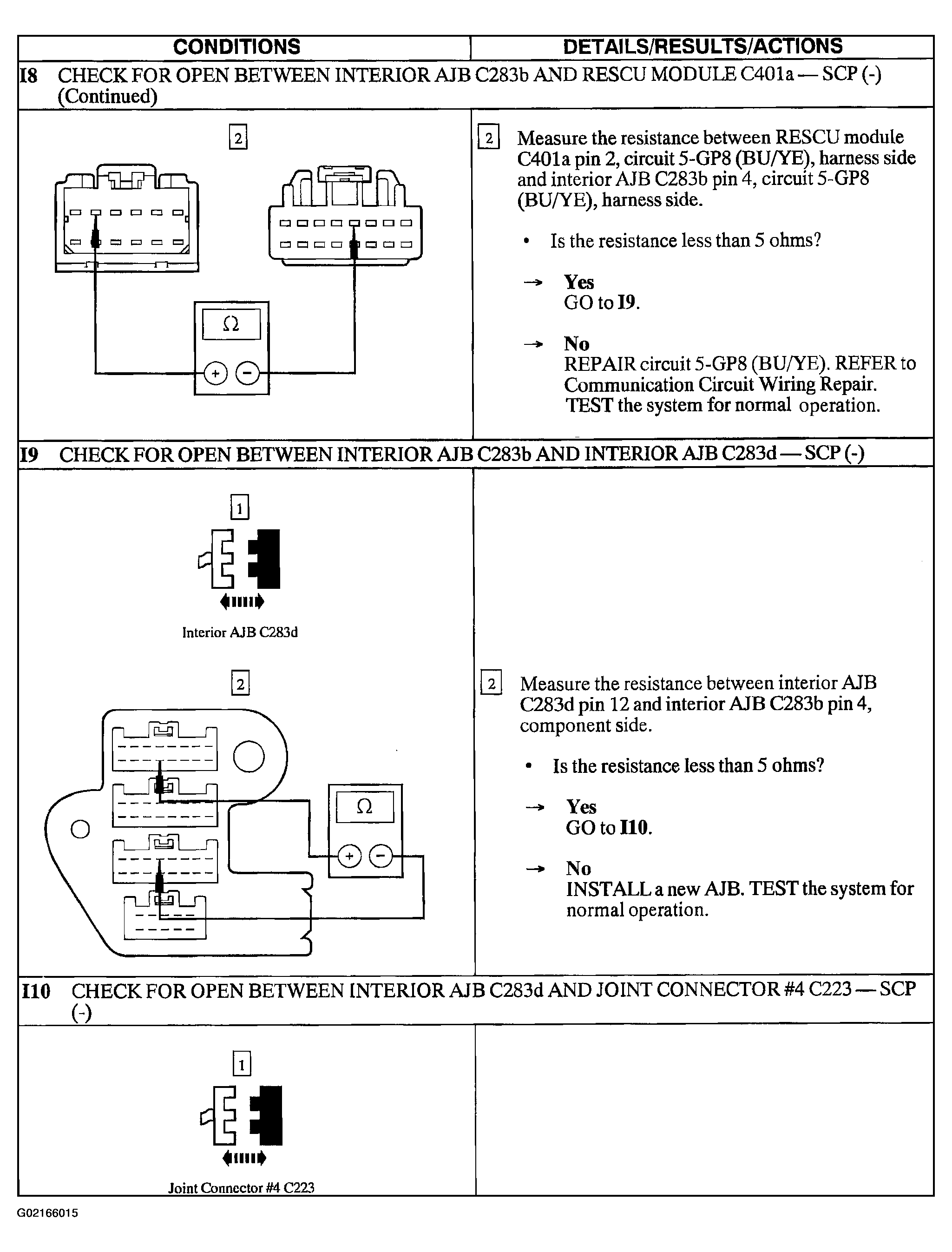

Fig 3: Pinpoint Test I: The Remote Emergency Satellite Cellular Unit (RESCU) Module Does Not Respond To The Diagnostic Tool (Steps I4 Cont. & I5)

Courtesy of FORD MOTOR CO.

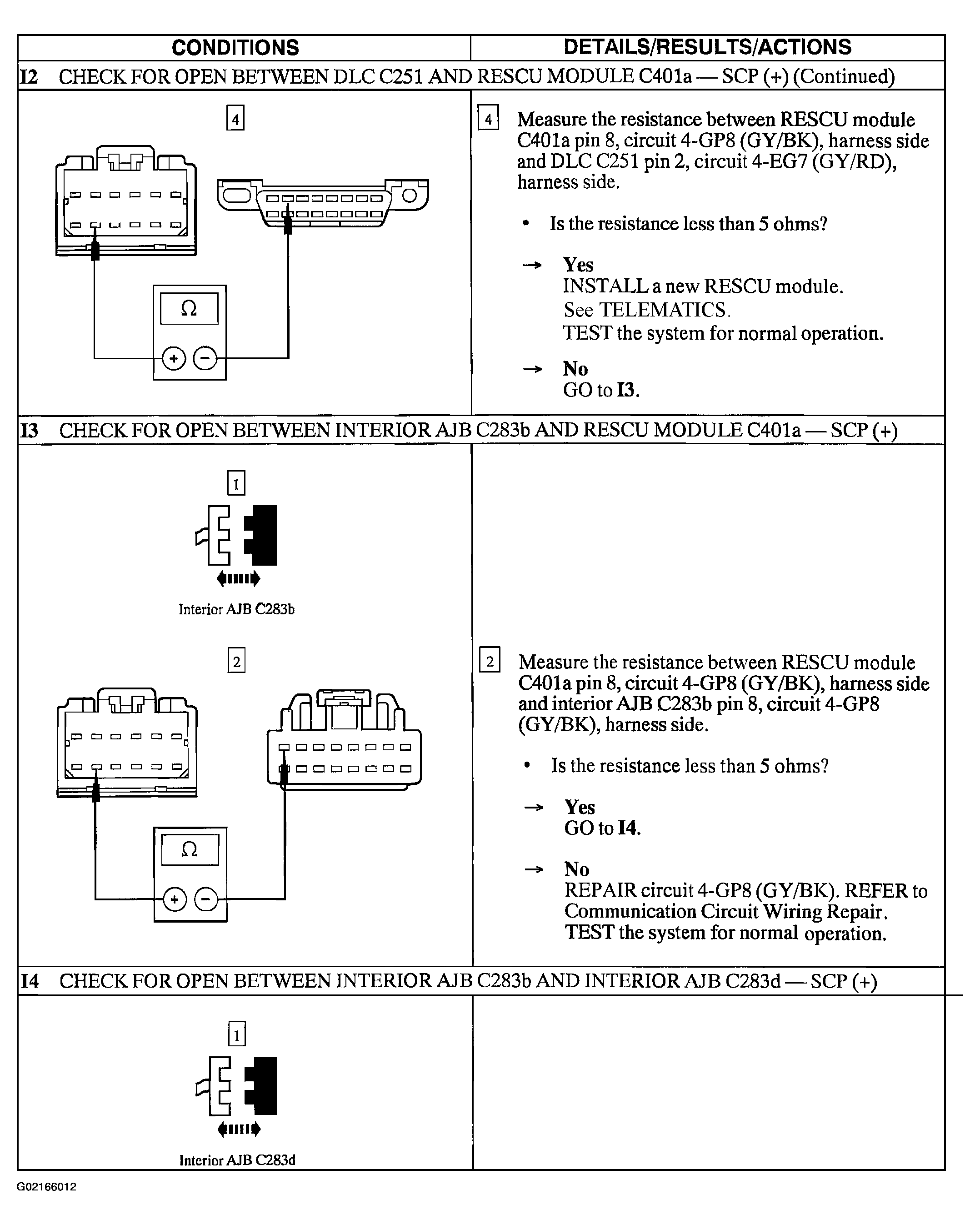

Fig 4: Pinpoint Test I: The Remote Emergency Satellite Cellular Unit (RESCU) Module Does Not Respond To The Diagnostic Tool (Steps I6 To I8)

Courtesy of FORD MOTOR CO.

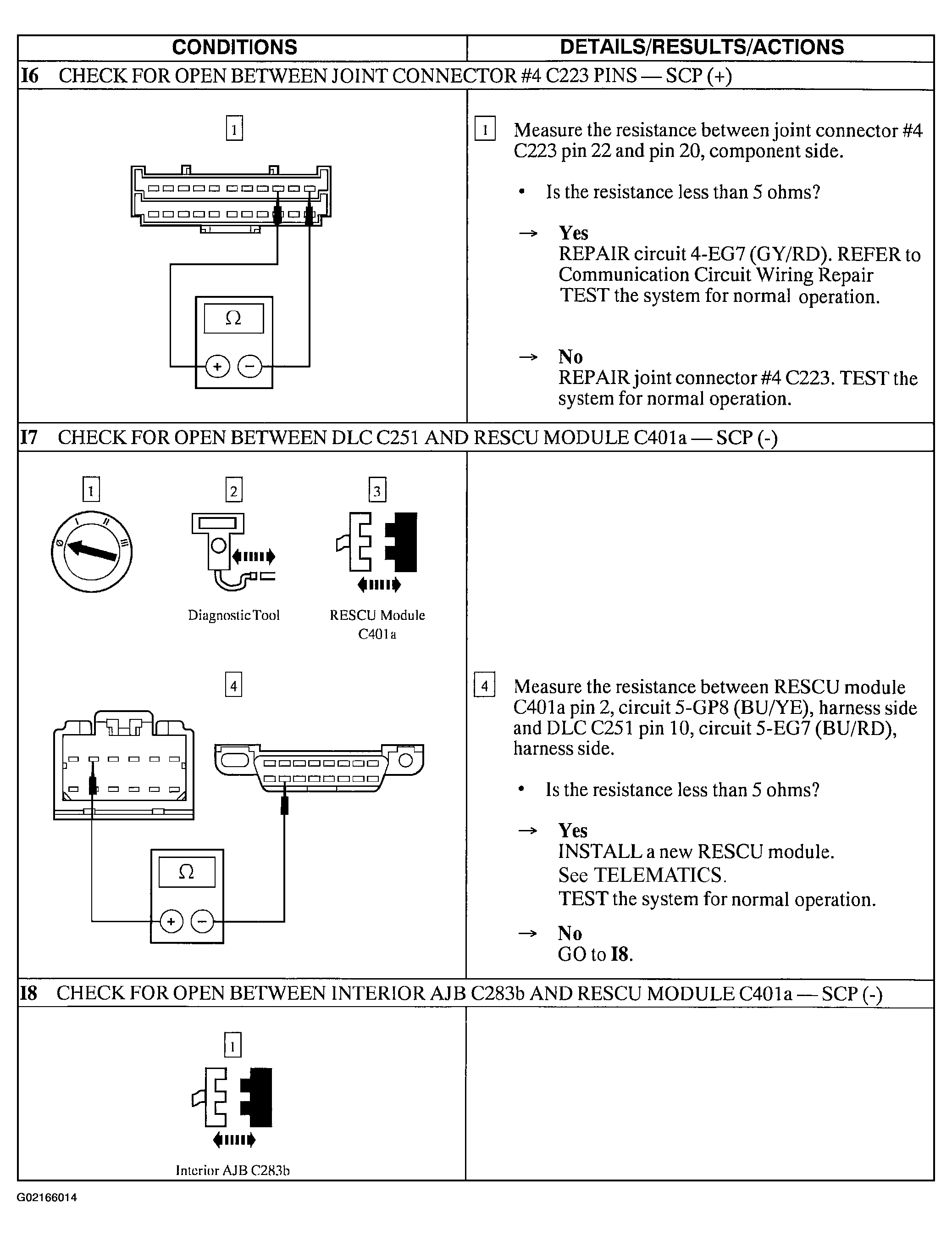

Fig 5: Pinpoint Test I: The Remote Emergency Satellite Cellular Unit (RESCU) Module Does Not Respond To The Diagnostic Tool (Steps I8 Cont. To I10)

Courtesy of FORD MOTOR CO.

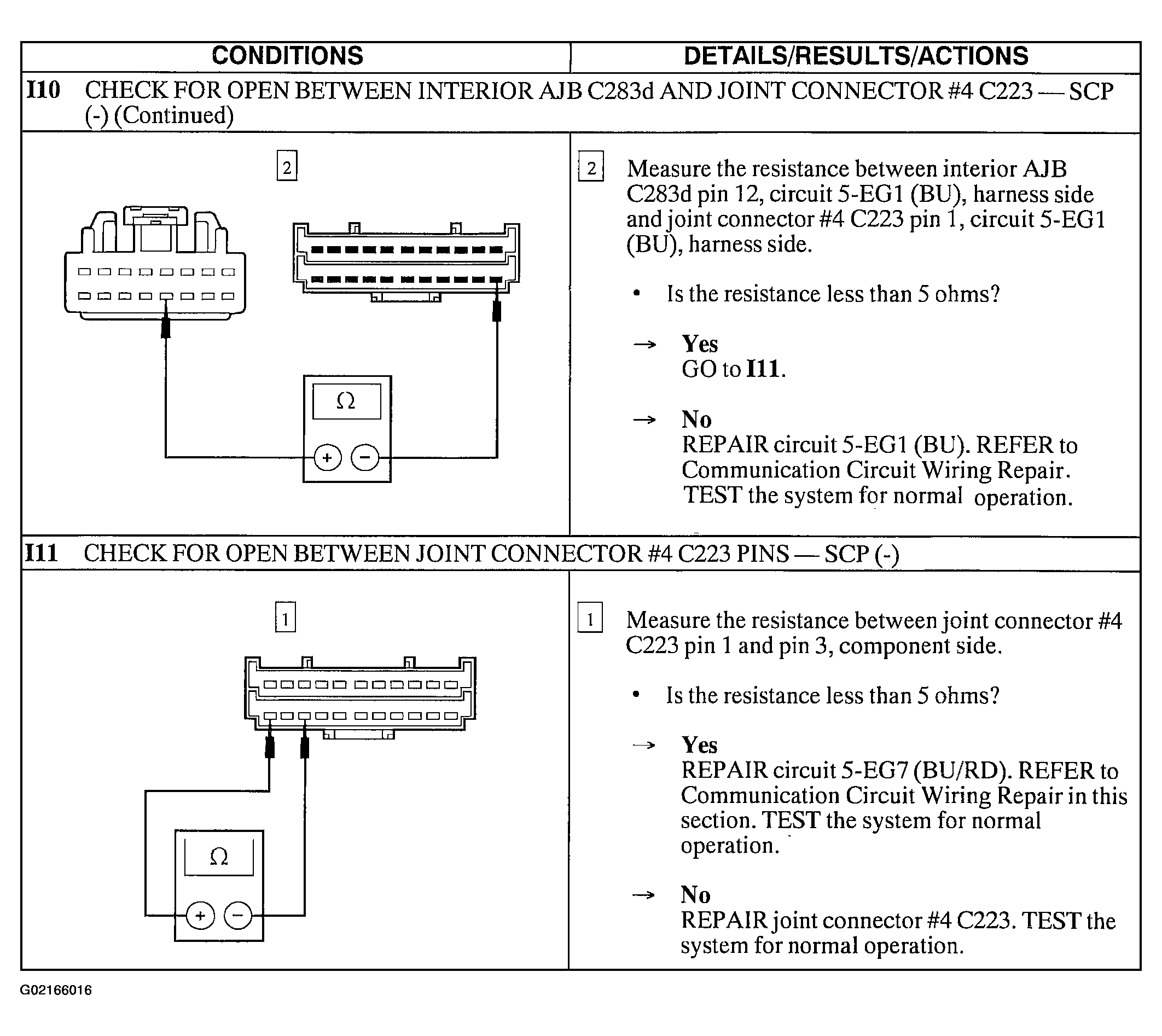

Fig 6: Pinpoint Test I: The Remote Emergency Satellite Cellular Unit (RESCU) Module Does Not Respond To The Diagnostic Tool (Steps I10 Cont. & I11)

Courtesy of FORD MOTOR CO.
