Lumbar Control Switch: Installation

WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, and notes at the beginning of the removal procedure.
  1. Install the lumbar control switch.
    1. Connect the electrical connector.
    2. Install the lumbar control switch.

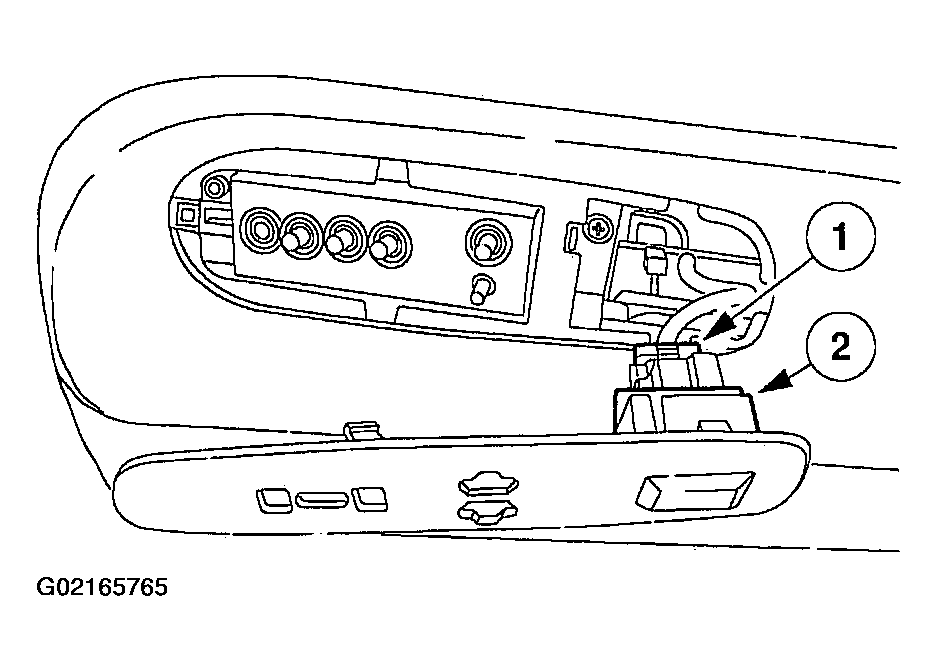

    Fig 1: Installing Lumbar Control Switch
    G02165765Courtesy of FORD MOTOR CO.
  2. Install the seat regulator control switch plate.
    Fig 2: Installing Seat Regulator Control Switch Plate
    G02165766Courtesy of FORD MOTOR CO.
  3. Install the seat control knobs.
    Fig 3: Installing Seat Control Knobs
    G02165767Courtesy of FORD MOTOR CO.
  4. Restore the vehicle to operating condition.
      WARNING: To reduce the risk of serious personal injury, read and follow all warnings, notes, and instructions in the seat removal and installation procedure.
    1. Install the affected seat. For additional information, see FRONT SEAT .
      2. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system (SRS) deactivation and reactivation procedure.
    2. Reactivate the supplemental restraint system (SRS). For additional information, see SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
      3. WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
    3. With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). For additional information, see SYSTEM OPERATION CHECK .
    4. Check the active restraint system for correct operation.
