Removal and Installation

  1. Raise and support the vehicle. For additional information, see JACKING & HOISTING .
  2. Position the inner splash shield aside.
    1. Remove the pin-type retainers.
    2. Position the inner splash shield aside.

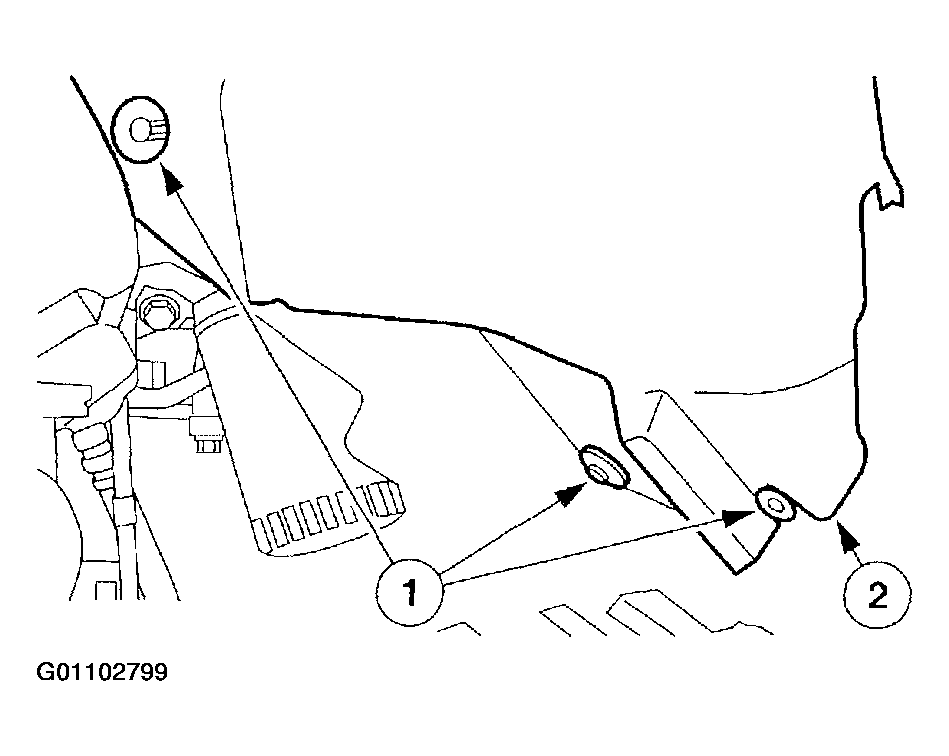

      Fig 1: Positioning Inner Splash Shield Aside
      G01102799Courtesy of FORD MOTOR CO.
  3. Disconnect the anti-lock brake sensor electrical connector.

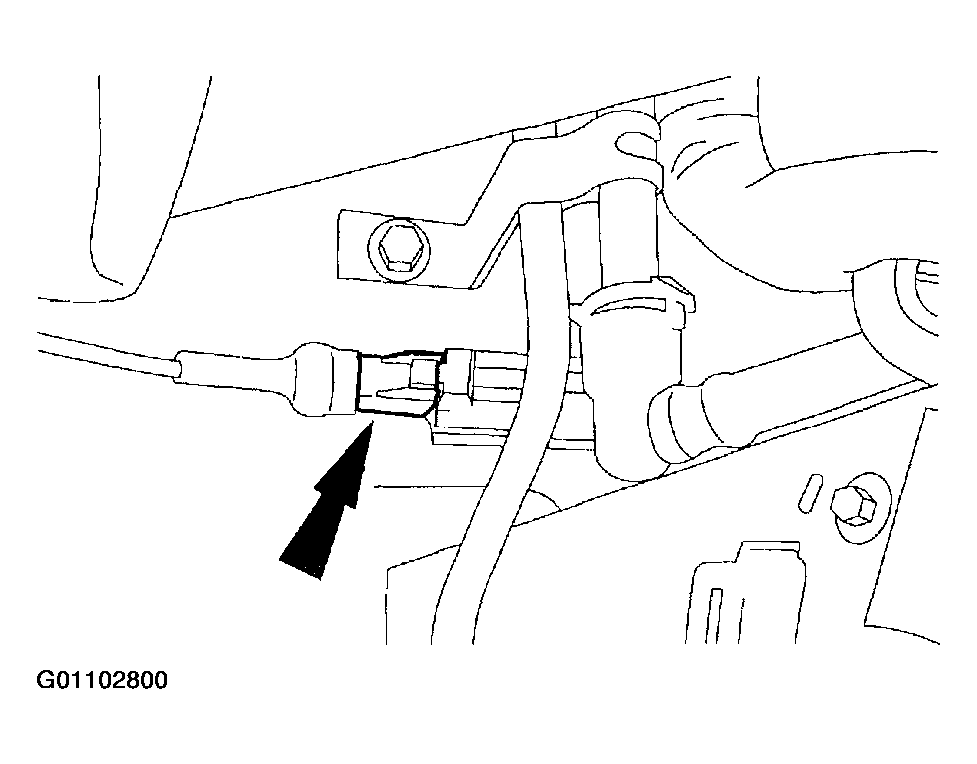

    Fig 2: Disconnecting Anti-Lock Brake Sensor Electrical Connector
    G01102800Courtesy of FORD MOTOR CO.
  4. Remove the anti-lock brake sensor harness from the brake hose clips.

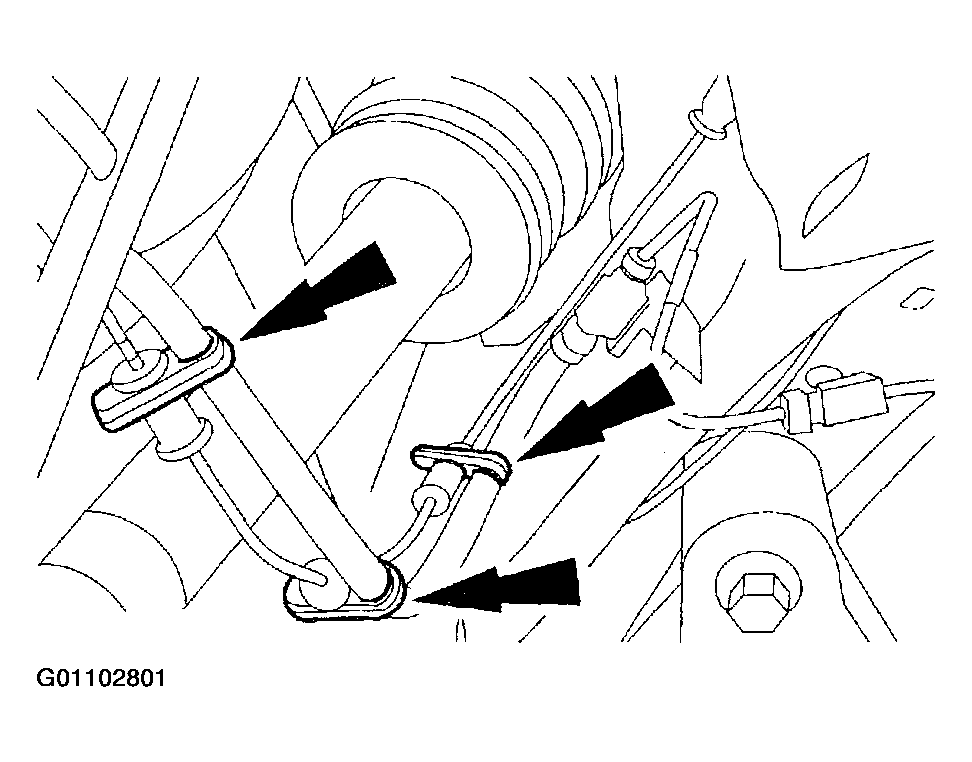

    Fig 3: Removing Anti-Lock Brake Sensor Harness
    G01102801Courtesy of FORD MOTOR CO.
  5. Remove the anti-lock brake sensor.
    1. Remove the anti-lock brake sensor clip.
    2. Remove the anti-lock brake sensor.
      Fig 4: Removing Anti-Lock Brake Sensor
      G01102802Courtesy of FORD MOTOR CO.
    6. NOTE: Make sure the anti-lock brake sensor is fully seated before installation of the new clip.
  6. To install, reverse the removal procedure.
    • Apply a 2.5 mm (0.1 in) bead of silicone sealant to the outside diameter of the anti-lock brake sensor.
