Main Control Valve Body: Notes

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

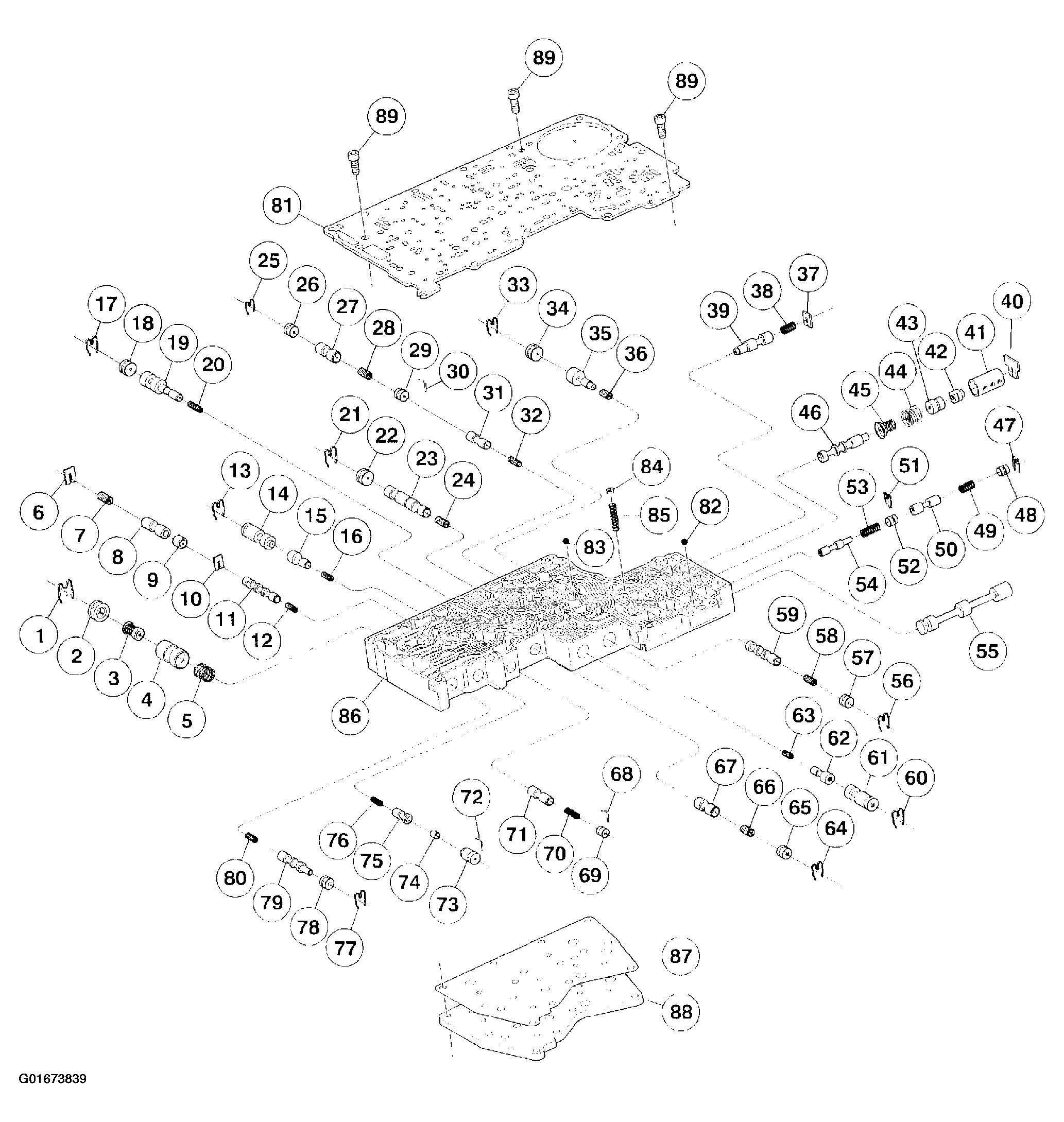

Fig 2: Exploded View Of Main Control Valve Body

Courtesy of FORD MOTOR CO.

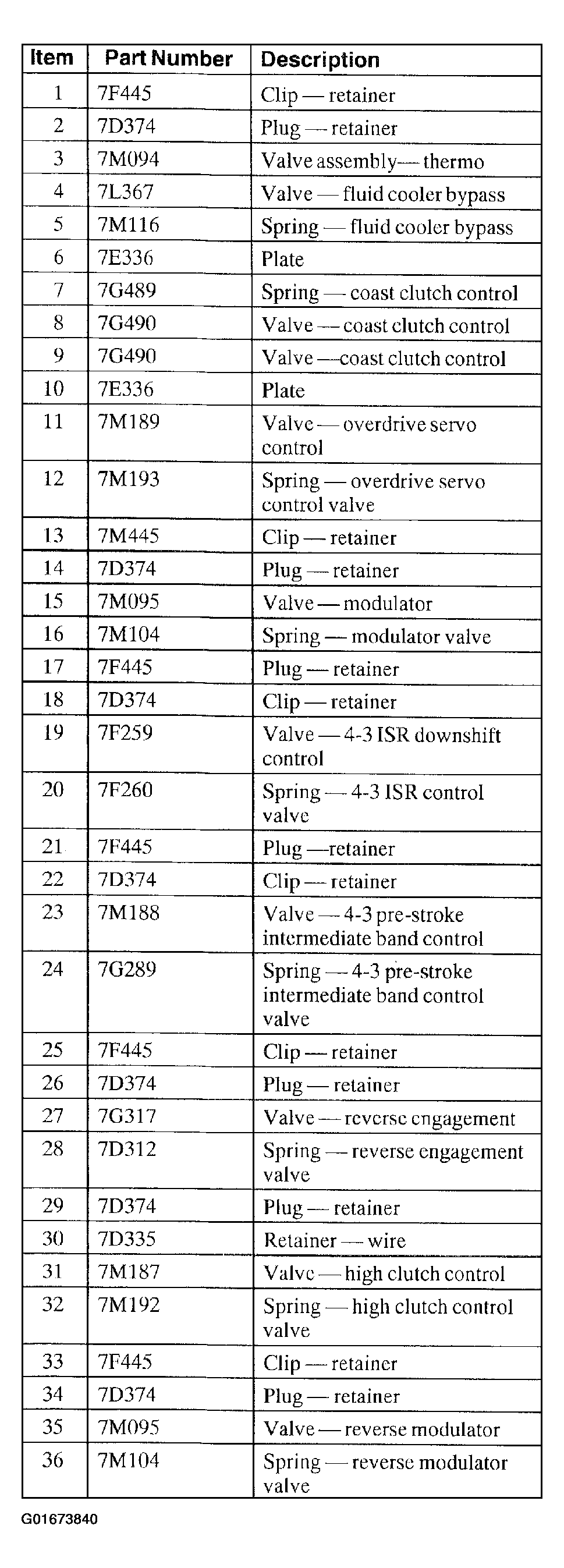

Fig 3: Part Number & Description Table (Items 1-36)

Courtesy of FORD MOTOR CO.

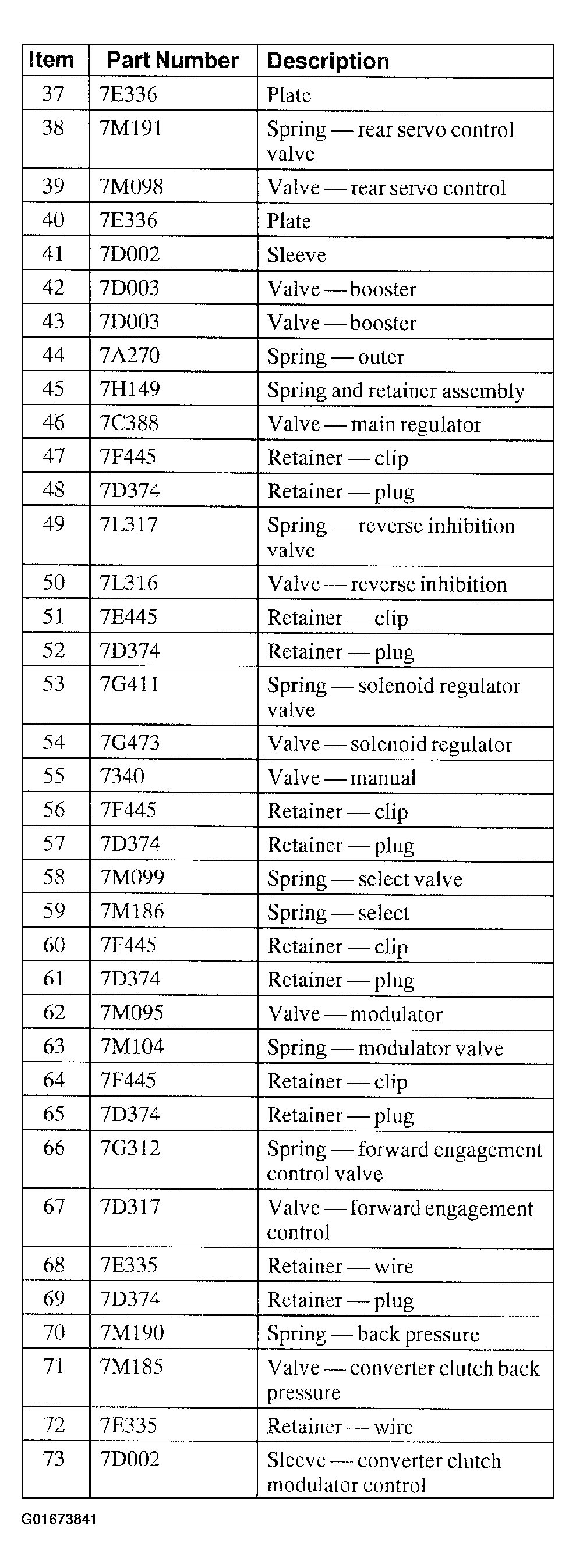

Fig 4: Part Number & Description Table (Items 37-73)

Courtesy of FORD MOTOR CO.

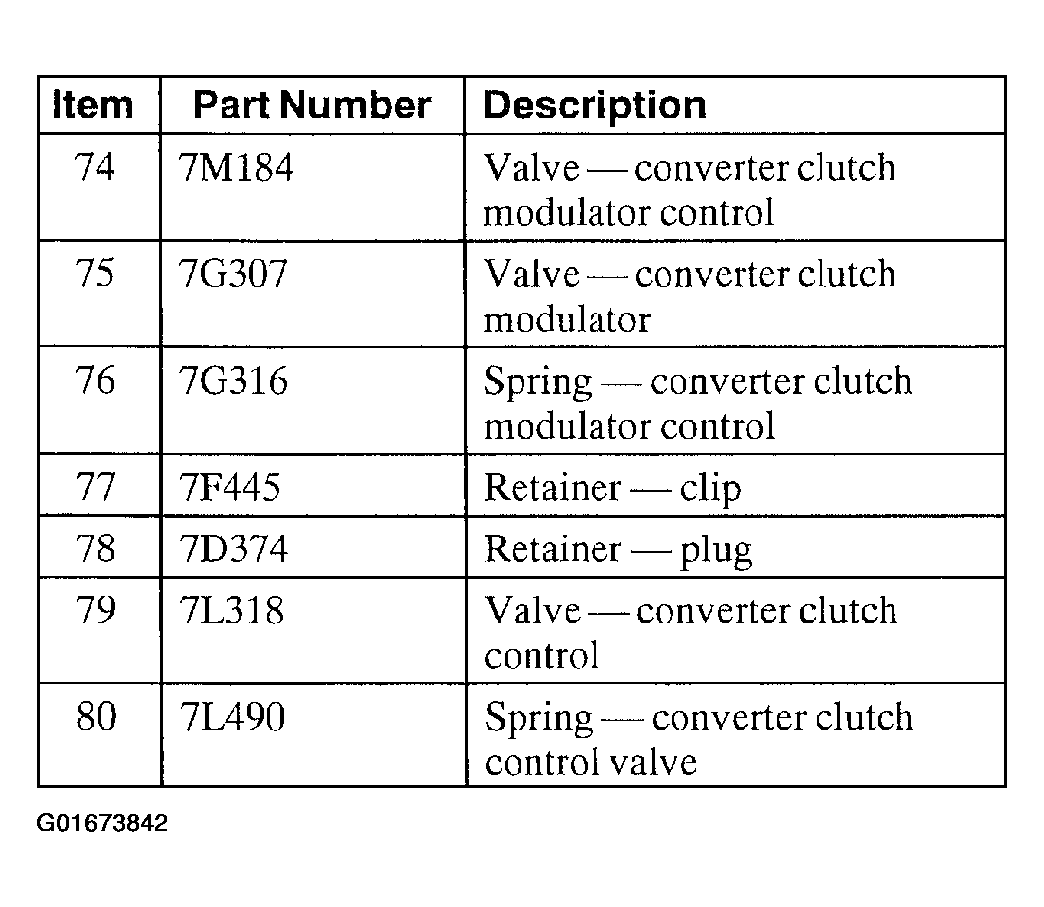

Fig 5: Part Number & Description Table (Items 74-80)

Courtesy of FORD MOTOR CO.

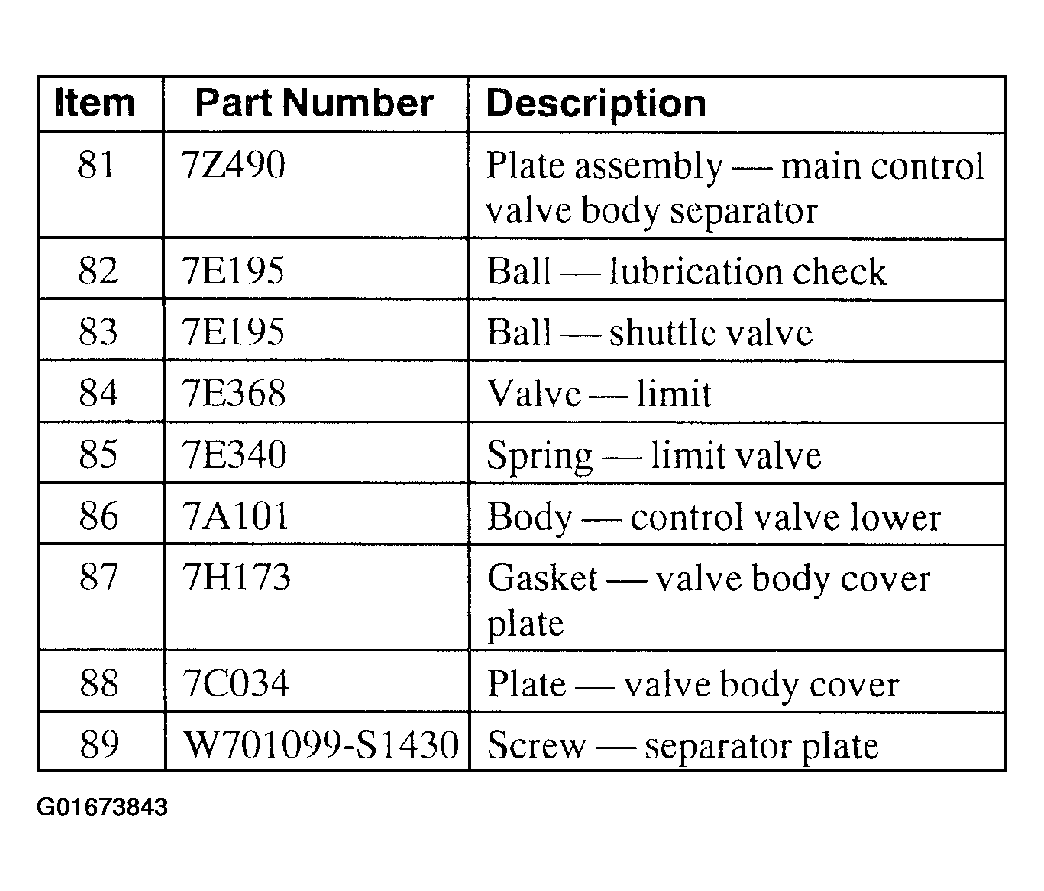

Fig 6: Part Number & Description Table (Items 81-89)

Courtesy of FORD MOTOR CO.
