Air Spring -Rear: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: When installing the rear air spring, it is necessary to inflate the air suspension system. For additional information, refer to RIDE HEIGHT ADJUSTMENTS .

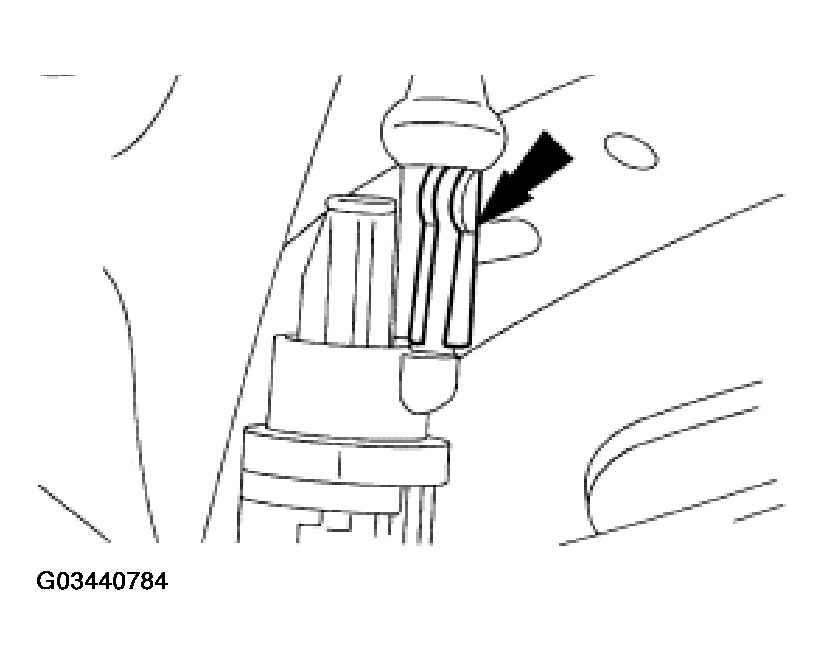

Fig 1: Connecting Solenoid Valve Electrical Connector

Courtesy of FORD MOTOR CO.

Connect the solenoid valve electrical connector.

NOTE: When installing the air lines, make sure the white air line is fully inserted into the fitting for correct installation.

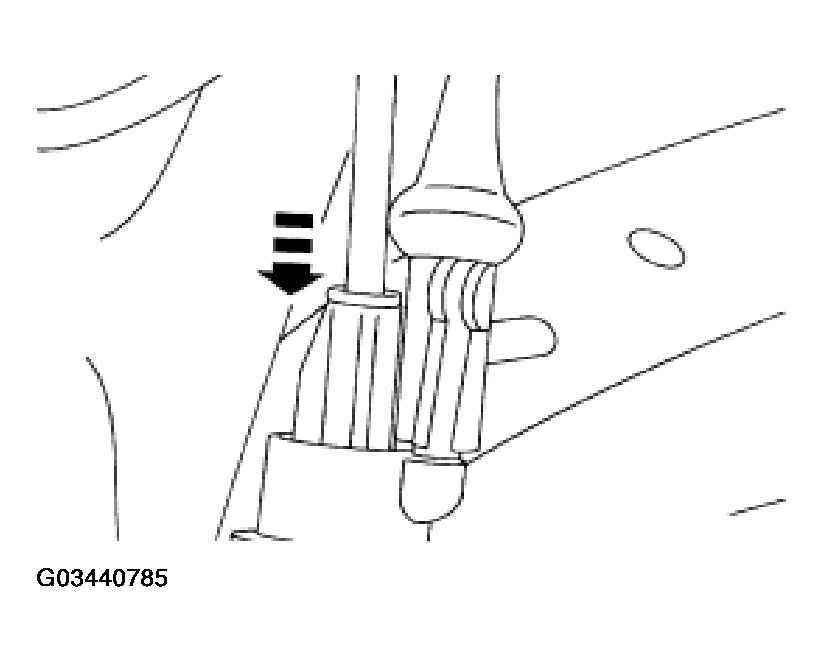

Fig 2: Connecting Air Line Into Solenoid Valve Line Fitting

Courtesy of FORD MOTOR CO.

Connect the air line into the solenoid valve line fitting.
Position the air spring into place and install the retaining clip at the top of the air spring.

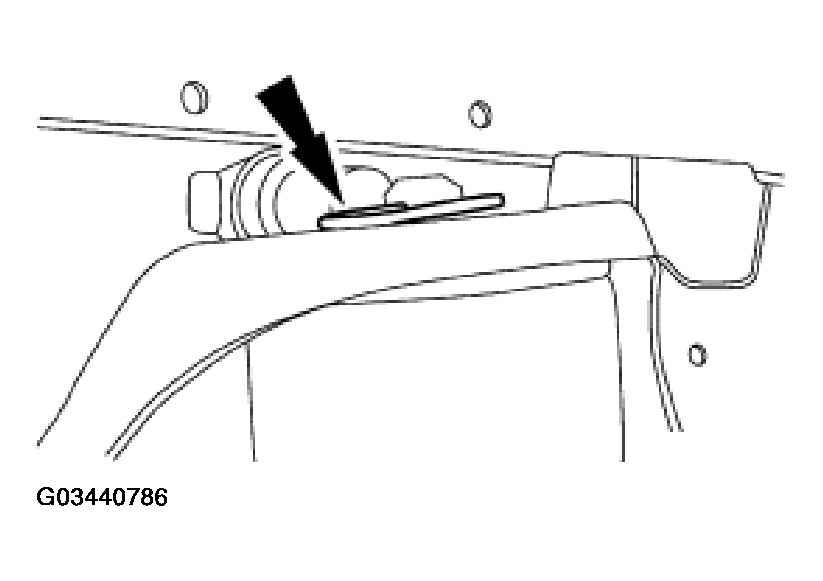

Fig 3: Positioning Air Spring Into Place And Install Retaining Clip At Top Of Air Spring
Courtesy of FORD MOTOR CO.
Visually inspect each air spring to ensure the correct profile has been obtained and the air spring is secured to the axle housing. There should be no evidence of buckling or folding of the air springs.

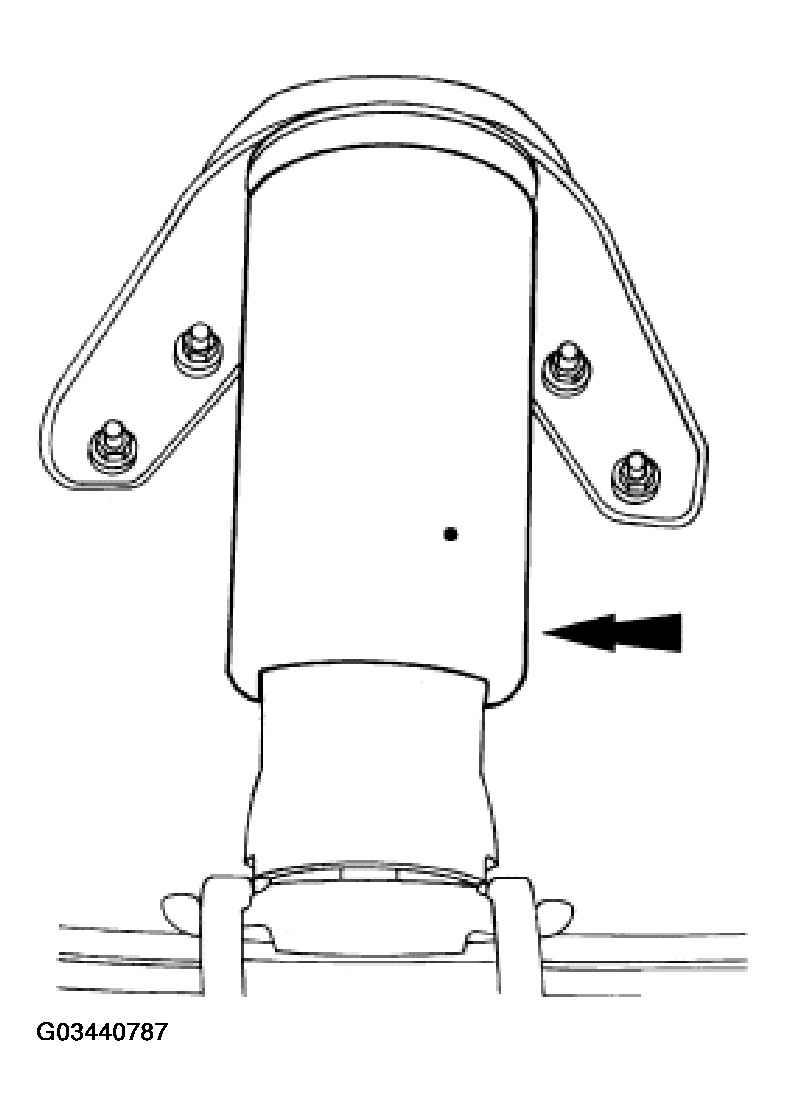

Fig 4: Identifying Axle Housing
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Inflate the air suspension system. For additional information, refer to RIDE HEIGHT ADJUSTMENTS .
