Steering Gear: Installation

Follow the removal procedure in reverse order.

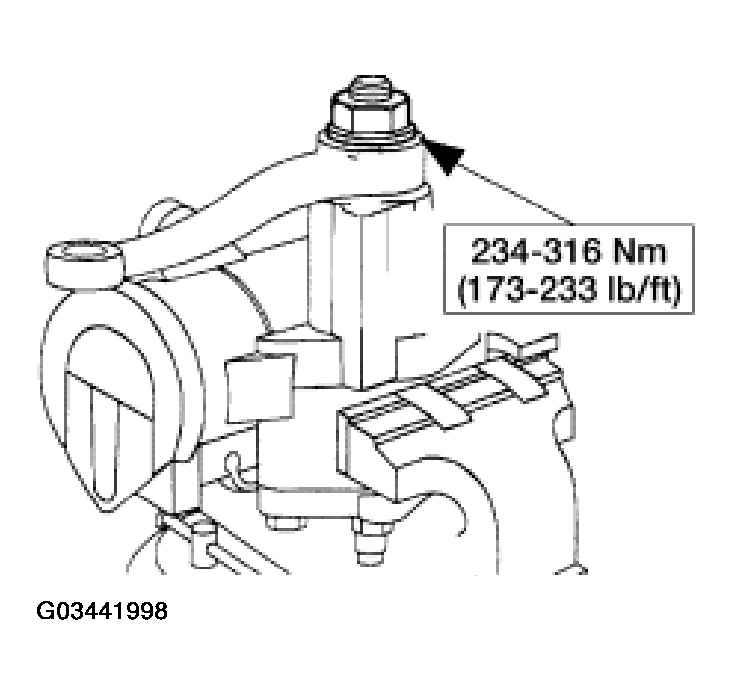

Fig 1: Installing Nut & Lockwasher
Courtesy of FORD MOTOR CO.

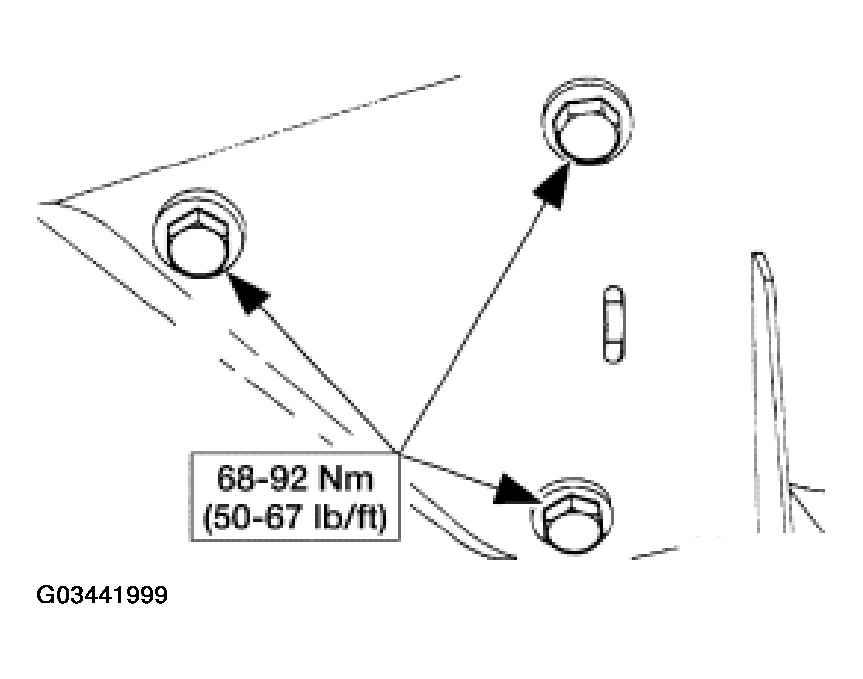

Fig 2: Installing Steering Gear Bolts
Courtesy of FORD MOTOR CO.

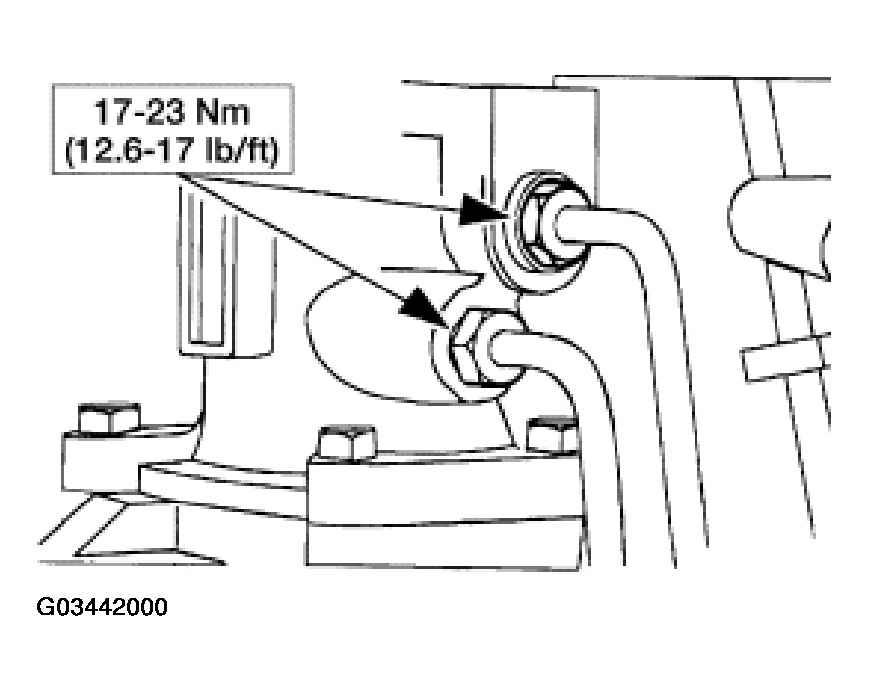

Fig 3: Connecting Power Steering Lines
Courtesy of FORD MOTOR CO.

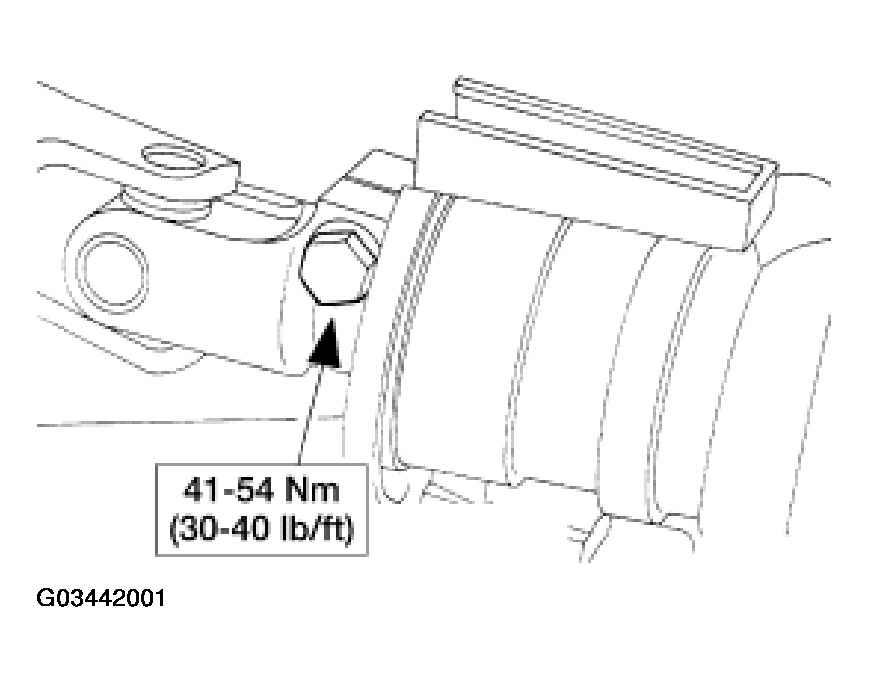

Fig 4: Installing Pinch Bolt
Courtesy of FORD MOTOR CO.

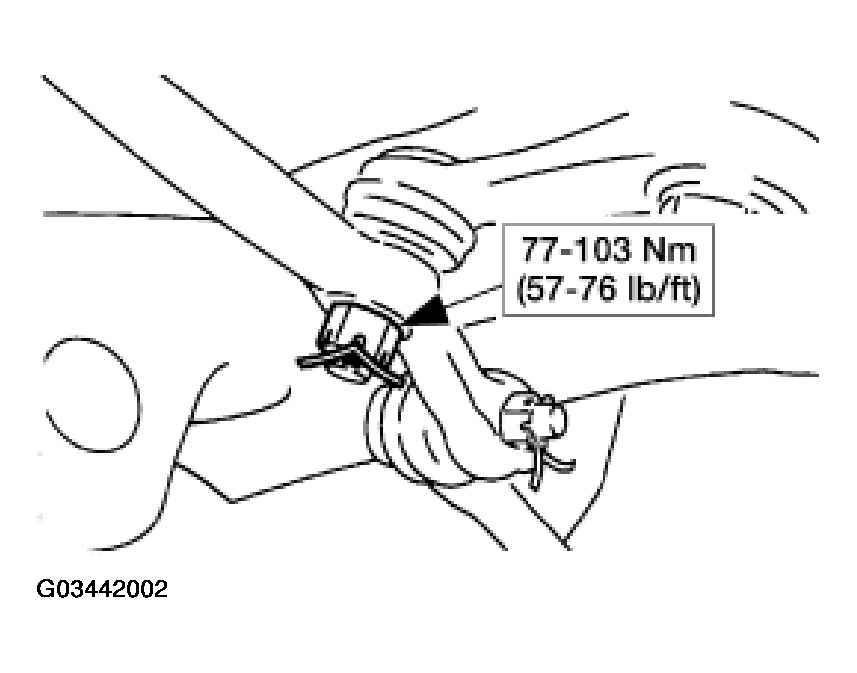

Fig 5: Installing Steering Sector Shaft Arm Drag Link Castellated Nut
Courtesy of FORD MOTOR CO.
Fill and leak check the system. For additional information, refer to STEERING SYSTEM-GENERAL INFORMATION .
