Output Shaft Speed Sensor -Front: Removal

  1. Remove the transfer case shift motor (7G360). For additional information, refer to TRANSFER CASE SHIFT MOTOR  .
  2. Remove the wire connector spacer and the front output shaft speed sensor wire pins from the electrical connector.
    • Use the proper electrical connector pin remover.

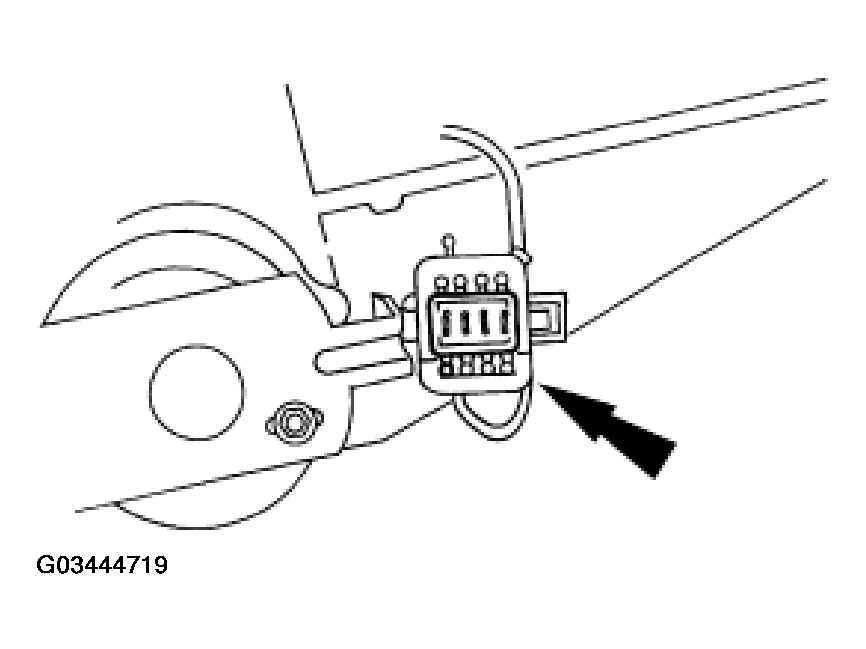

    Fig 1: Removing Wire Connector Spacer And Front Output Shaft Speed Sensor Wire Pins
    G03444719Courtesy of FORD MOTOR CO.
  3. Remove the front output shaft speed sensor (7F293).
    1. Remove the bolt.
    2. Remove the front output shaft speed sensor.

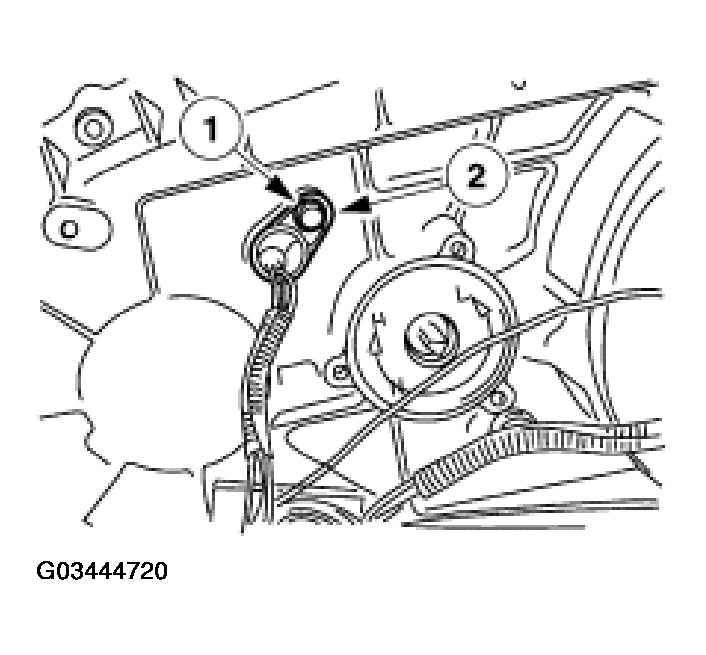

    Fig 2: Removing Front Output Shaft Speed Sensor
    G03444720Courtesy of FORD MOTOR CO.
