Output Shaft Speed Sensor -Rear: Installation
CAUTION:
Make sure the sensor seats flat against the boss.

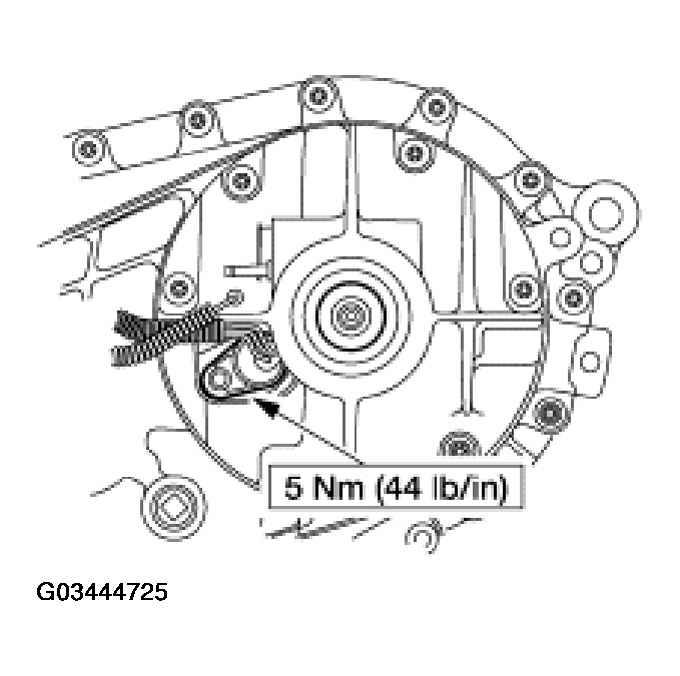

Fig 1: Installing Sensor Bolts
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
