Sensor - Front, 4x2: Removal

  1. Disconnect the front wheel speed sensor electrical connector.

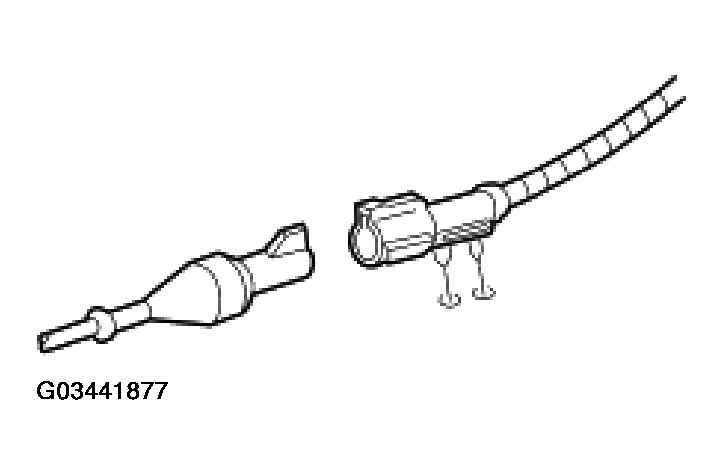

    Fig 1: Disconnecting Front Wheel Speed Sensor Electrical Connector (4x2)
    G03441877Courtesy of FORD MOTOR CO.
  2. Separate the sensor cable from the brake hose clips.

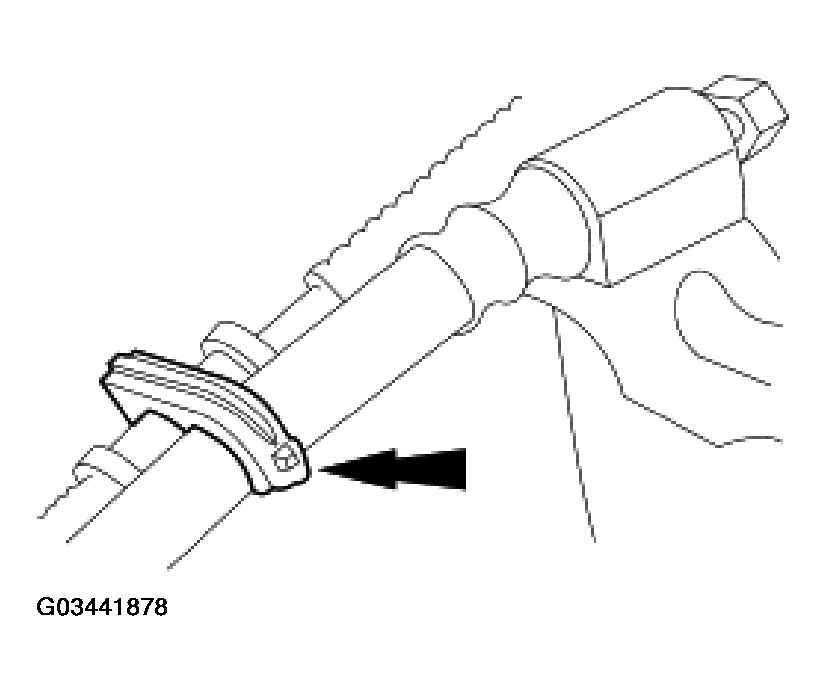

    Fig 2: Separating Sensor Cable From Brake Hose Clips (4x2)
    G03441878Courtesy of FORD MOTOR CO.
  3. Remove the (A) front wheel speed sensor bolt and the (B) front wheel speed sensor.

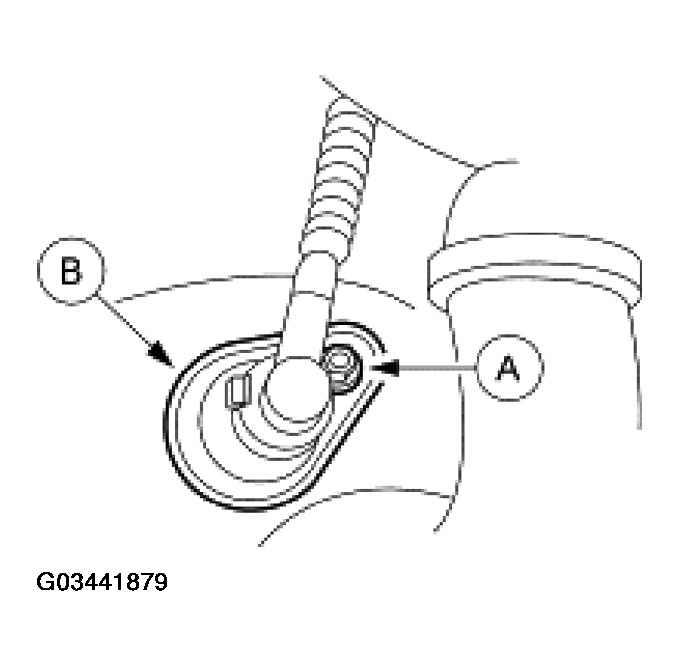

    Fig 3: Removing Front Wheel Speed Sensor & Bolt (4x2)
    G03441879Courtesy of FORD MOTOR CO.
