Cylinder Head - Distortion: Procedure

  1. Use a straight edge and a feeler gauge to inspect the cylinder head for flatness. If the cylinder head is distorted, install a new cylinder head.

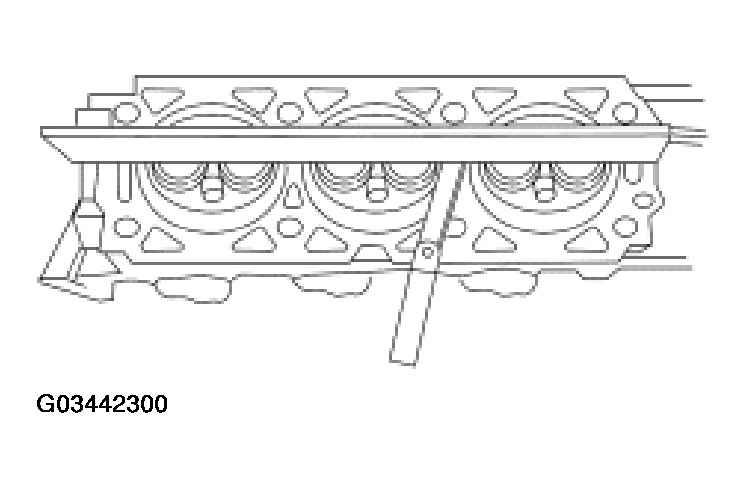

    Fig 1: Inspecting Cylinder Head For Flatness
    G03442300Courtesy of FORD MOTOR CO.
