Pinpoint Test B: No Communication With The Electronic Variable Orifice Control Module

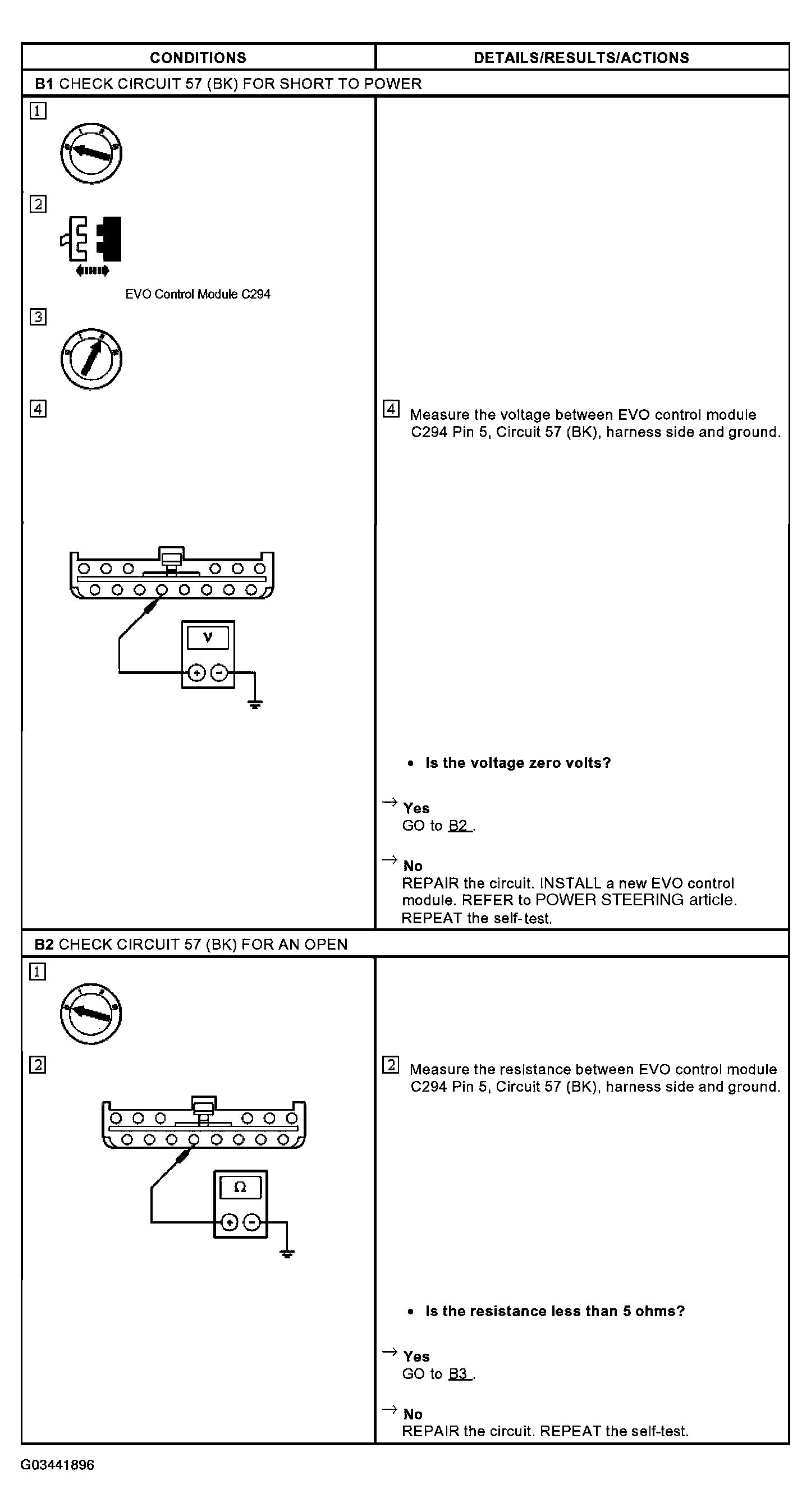

Fig 1: Pinpoint Test B: No Communication With Electronic Variable Orifice Control Module (Steps B1 - B2)

Courtesy of FORD MOTOR CO.

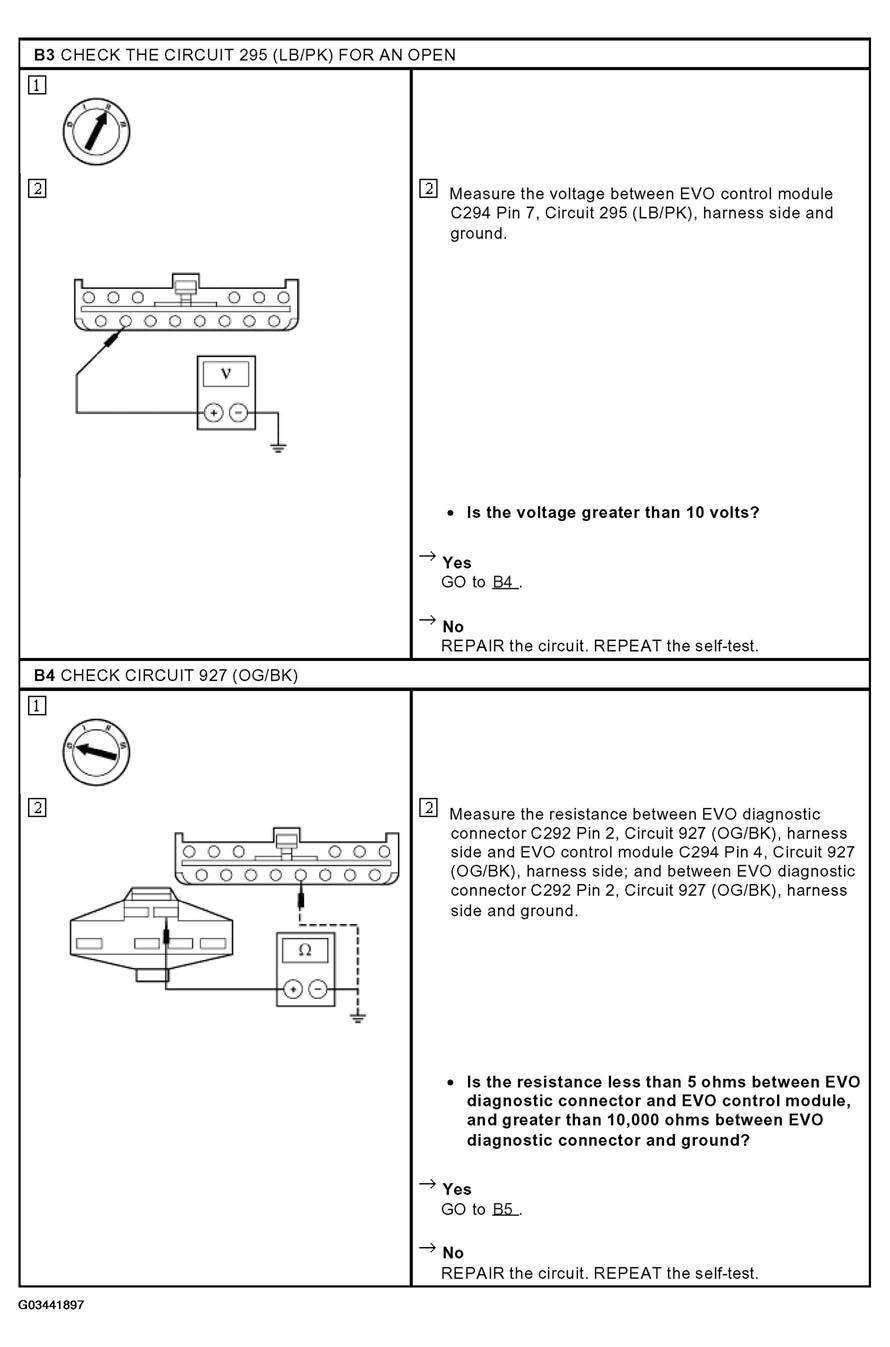

Fig 2: Pinpoint Test B: No Communication With Electronic Variable Orifice Control Module (Steps B3 - B4)

Courtesy of FORD MOTOR CO.

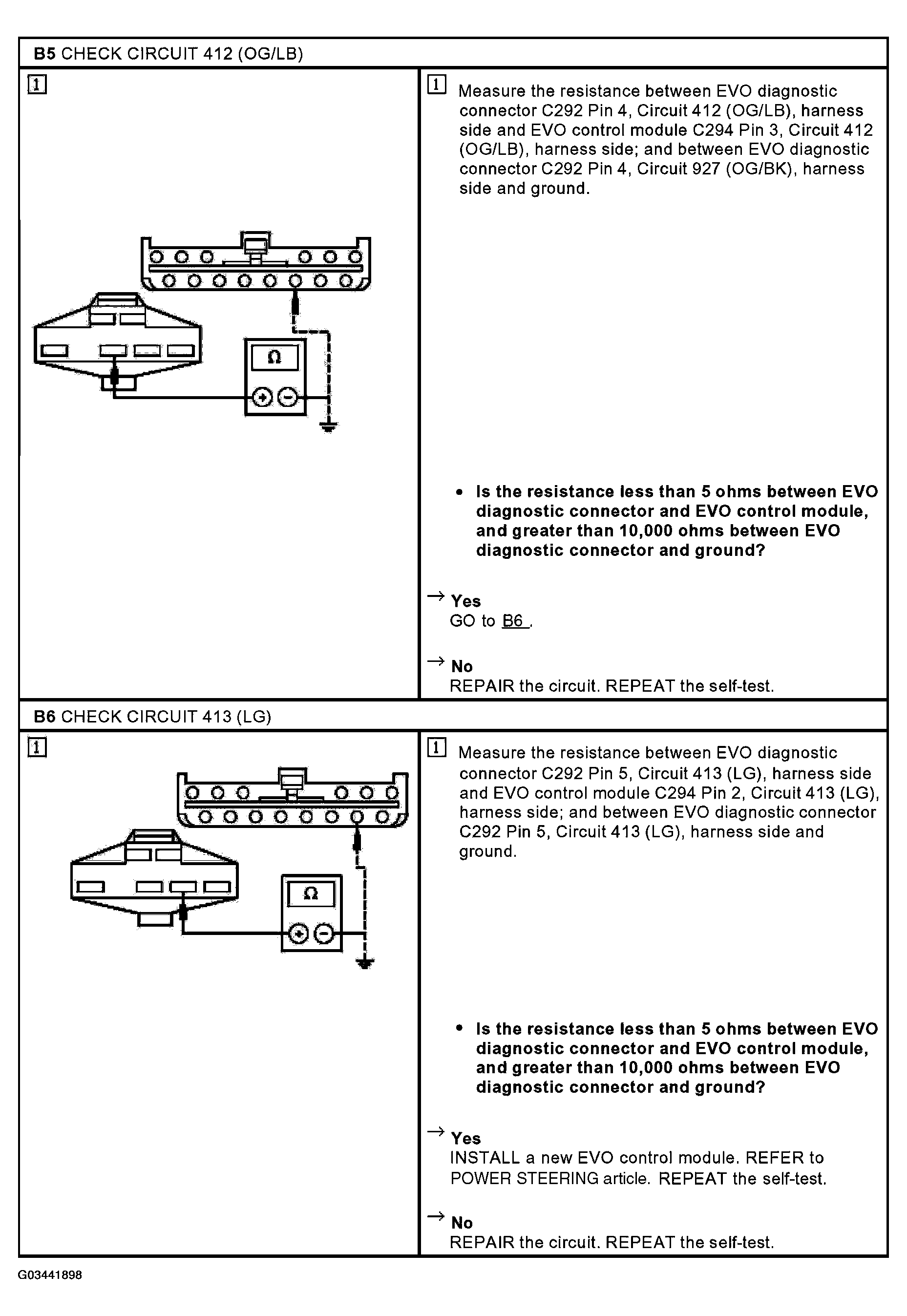

Fig 3: Pinpoint Test B: No Communication With Electronic Variable Orifice Control Module (Steps B5 - B6)

Courtesy of FORD MOTOR CO.
